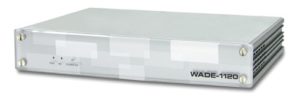

The WADE-1120A is designed to efficiently dissipate any internal heat, eliminating the need for a ventilation fan. It is the perfect system solution for any embedded application that operates in a harsh environment. WADE-1120A is designed with either a built-in WADE-8041 board or similar Mini-ITX board as the barebone system. Its unique tool-free design allows the integrator or field service professional to release the top cover easily and quickly. Complete with memory, DOM or Compact flash, WADE-1120A is ready to go to work.
| POWER SUPPLY | |
| Maximum Output | 55W ATX power supply |
| Input Voltage | 90V ~ 265V AC, full range |
| Input Frequency | 47 ~ 63 Hz |
| Input Current | 2.0A(RMS)@115V, 1.0A(RMS)@230V |
| Efficiency | >74% |
| Holdup time | 17ms. at 115V/60Hz or 230V/50Hz |
| Over Voltage Protection | 3.3V@3.5~4.5V; 5V@5.5~6.82V; 12V@13.4~16.5V |
| MTBF | 121,330 hrs |
| Certification | UL, cUL, TUV, CE, FCC |
| Dimension (WxDxH) | 183 x 50 x 37.6 mm; 7.2” x 2” x 1.5” |
| Mechanical & Environmenal | |
| Operation Temperature | 0~50°C |
| Storage Temperature | -20~80°C |
| Relative Humidity | 5~95% non-condensing |
| Dimension | 268 x 196 x 44 (mm) |
| Weight | 2.2 Kg |
| WADE-1120A-55X The Fan-free Designed Compact Node Chassis built with 55W ATX PSU * Rack-mount kit available (option) |
