Rugged and Stylish Industrial Mini-ITX Bare Bone Chassis


  • Integrated with various Mini-ITX board
  • One PCI expansion slot
  • Tool-free mechanism to open the top cover
  • Rugged and stylish design
  • Quick 2.5” HDD installation by releasing the top cover
  • Two side-by-side units to form two systems in 2U rackmount form factor

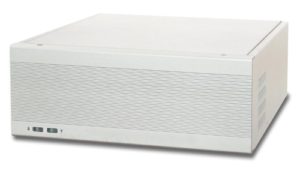

The WADE-2221A is a rugged and stylish barebone system suitable for embedded applications that stand alone or are rackmounted. Its effective ventilation is achieved by the mesh design of the front panel. No actual tool is needed to release the top cover of chassis, simplifying integration and field service. This barebone system includes a WADE series board, 150-watt or 180-watt power supply, 2.5″ drive bay and one PCI expansion slot. A 2U rackmount tray is specially designed to hold two units side-by-side and converts them to the rackmount platform.


Input Voltage 90V ~ 264V AC, full range
Input Frequency 47 ~ 63 Hz
Input Current 6A@115V, 3A@230V
Efficiency >75%
Holdup Time 16ms. at full load@25°C
Over Voltage Protection +5V@5.5~6.82V; +3.3@3.5~4.8V; +12V@13.4~15.6V
Over Power/Load Protection Output power over to 110%~150%
MTBF >130,000 hrs
EMI & Safety Approval UL, TUV, BSMI, NEMCO, FCC, CE
Temperature/Humidity Operating: Operating: 0 ~ 40°C, 20 ~ 90%RH
Storage: -20 ~ 60°C, 5 ~ 95%RH
Dimension (WxDxH) 81.5 x 150 x 40.5 mm; 3.2” x 5.9” x 1.6”
Mechanical & Environmenal
Operation Temperature 0~50°C
Storage Temperature -20~80°C
Relative Humidity 5~95% non-condensing
Dimension 251 x 221.8 x 86.3 (mm)
Weight 2.2Kg

Ordering Guide

Ordering Guide
Rugged and stylish industrail Mini-ITX Bare-bones Chassis with 150W active PFC PSU
Rugged and stylish industrail Mini-ITX Bare-bones Chassis with 180W active PFC PSU


(Documents & Downloads)

  Catalog   WADE-2221A | Catalog 215B   October 15, 2014


592.45 KB 3808 Downloads
