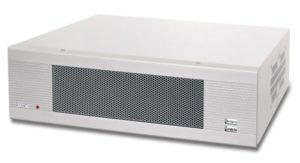

The WADE-2231Q is a rugged and stylish barebones system suitable for embedded applications that stand alone or are rackmounted. Its effective ventilation is achieved by the mesh design of the front panel. No actual tool is needed to release the top cover of chassis, simplifying integration and field service. This barebone system includes a WADE series board, 180-watt power supply, 3.5″ drive bay and one PCI expansion slot.
| POWER SUPPLY | |
|---|---|
| Input Voltage | 90V ~ 264V AC, full range |
| Input Frequency | 47 ~ 63 Hz |
| Input Current | 6A@115V, 3A@230V |
| Efficiency | >75% |
| Holdup Time | 16ms. at full load@25°C |
| Over Voltage Protection | +5V@5.5~6.82V; +3.3@3.5~4.8V; +12V@13.4~15.6V |
| Over Power/Load Protection | Output power over to 110%~150% |
| MTBF | >130,000 hrs |
| EMI & Safety Approval | UL, TUV, BSMI, NEMCO, FCC, CE |
| Temperature/Humidity Operating: | Operating: 0 ~ 40°C, 20 ~ 90%RH Storage: -20 ~ 60°C, 5 ~ 95%RH |
| Dimension (WxDxH) | 81.5 x 150 x 40.5 mm; 3.2” x 5.9” x 1.6” |
| Mechanical & Environmenal | |
|---|---|
| Operation Temperature | 0~50°C |
| Storage Temperature | -20~80°C |
| Relative Humidity | 5~95% non-condensing |
| Dimension | 310 x 252 x 86.3 (mm) |
| Weight | 3.0Kg |
| Ordering Guide | |
|---|---|
| WADE-2231Q-4410R-180X Rugged and stylish industrial Mini-ITX Bare-bones Chassis with PER-4410R, PCI-E x16 riser card & 180W PSU |
|
| WADE-2231Q-518R-180X Rugged and stylish industrial Mini-ITX Bare-bones Chassis with PEP-581R, 1 slot PCI riser card & 180W PSU |
|
