WADE-2232Q

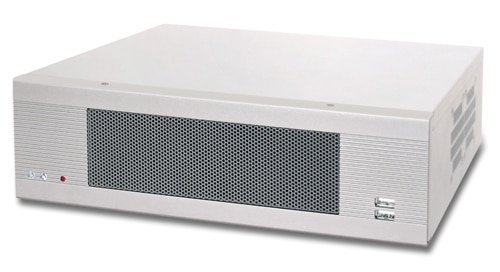

Rugged and Stylish Industrial Mini-ITX WADE-2232Q Bare-Bones Chassis

Features

  • Bare-bones Chassis for Mini-ITX board
  • Tool-free mechanism to open the top cover
  • Rugged and stylish design
  • Quick 3.5” HDD installation by releasing the top cover
  • Two expansion slots

The WADE-2232Q is a rugged and stylish barebones system suitable for embedded applications that stand alone or are rackmounted. Its effective ventilation is achieved by the mesh design of the front panel. No actual tool is needed to release the top cover of chassis, simplifying integration and field service.

This barebone system includes a WADE series board, 220-watt power supply, 3.5″ drive bay and two PCI expansion slot.

Specification

Specifications
POWER SUPPLY
Input Voltage 90V ~ 264V AC, full range
Input Frequency 47 ~ 63 Hz
Input Current 5A@115V, 3A@230V
Efficiency >80%
Holdup Time 17ms. at full load@25°C
Over Voltage Protection +5V@5.5~6.82V; +3.3@3.5~4.8V; +12V@13.4~15.6V
Over Power/Load Protection Output power over to 110%~140%
MTBF 100,000 hrs
EMI & Safety Approval UL, TUV, CE, FCC, CB, CSA, SEMKO, FIMKO, NEMCO, DIMCO
Temperature/Humidity Operating: 0 ~ 50°C, 20 ~ 85%RH
Storage: -20 ~ 80°C, 10m ~ 90%RH
Dimension (WxDxH) 150 x 81.5 x 40.5 mm; 5.9” x 3.2” x 1.6”
Mechanical & Environmenal
Operation Temperature 0~50°C
Storage Temperature -20~80°C
Relative Humidity 5~95% non-condensing
Dimension 310 x 252 x 109 (mm)
Weight 3.5 Kg

Ordering Guide

Ordering Guide
WADE-2232Q-582R-220X
Rugged and stylish industrail Mini-ITX Bare-bones Chassis with PEP-582R, 2 slots PCI, riser card & 220W PSU
WADE-2232Q-592R-220X
Rugged and stylish industrail Mini-ITX Bare-bones Chassis with PEP-592R, 2 slots ( PCI-E x1, PCI x1 )
