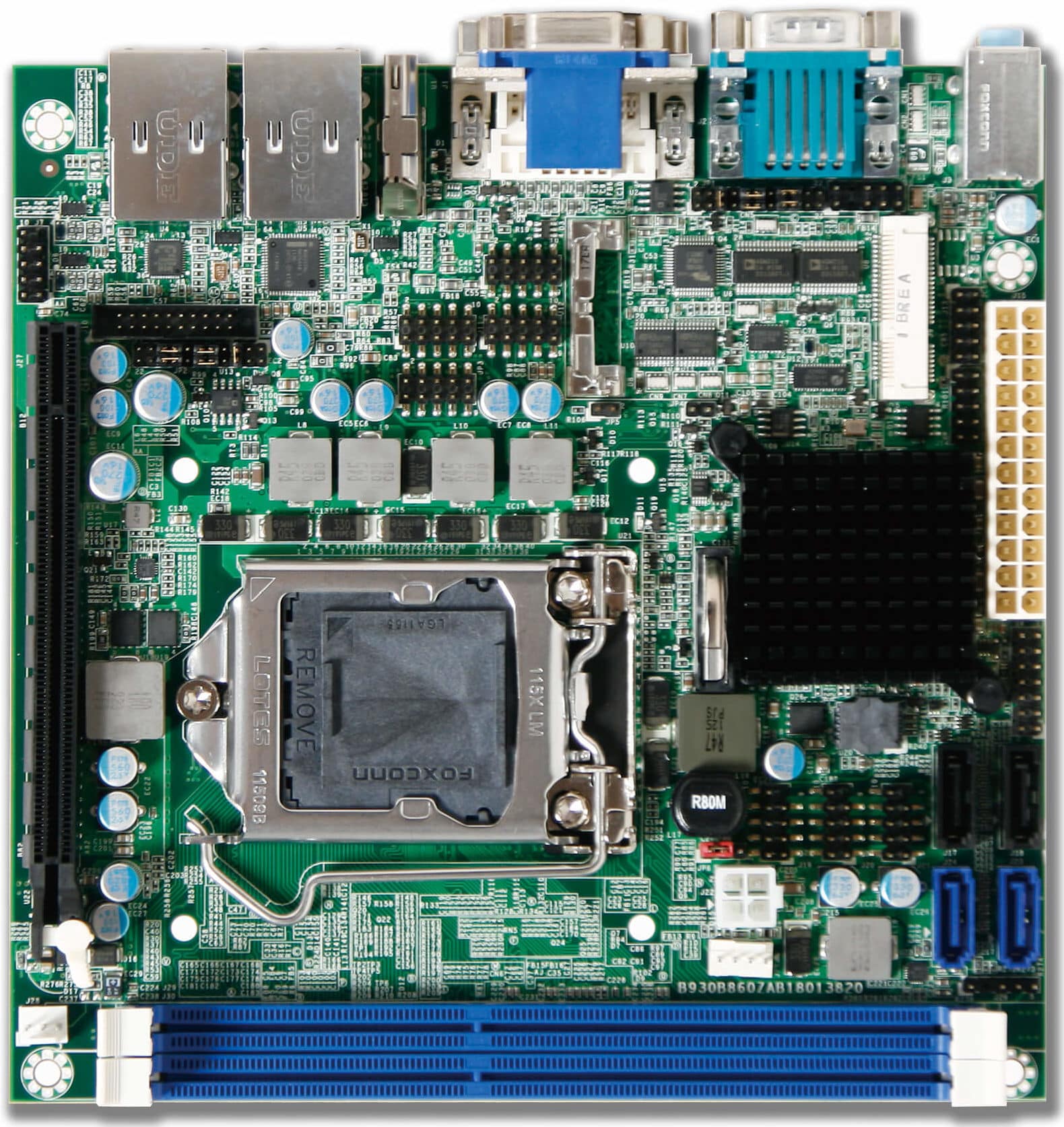

WADE-8013

Intel® Core™ i5/i7 processor based Mini-ITX Board with dual Gigabit Ethernet, 4x SATA Ports, 6x COM Ports, 1x PCIe x16 expansion slot and 1x mini-PCIe slot support mSATA interface

Features

  • Intel® next-Gen Dual/Quad processor in LGA1155 package
  • Intel® Q77 Chipset
  • 2x 240-pin Long-DIMM supports DDR3 SDRAM up to 16GB
  • Dual display: VGA/DVI/HDMI®
  • 1x PCIe x16 expansion slot
  • 5x SATA ports (2x SATA II, 2x SATA III)
  • 6x COM ports
  • 1x mini-PCIe slot supports mSATA interface

Description

WADE-8013 supports the latest 3rd generation Intel® Core™ processor platform in an LGA1155 package, integrated with the memory and PCI Express controller supporting two-channel DDR3 memory and PCI Express 3.0 lanes to provide great graphics performance.

Specification

Specifications
MODEL WADE-8013
Form Factor Mini-ITX
CPU Intel® Core™ i5/i7 processor in LGA1155 package
FSB: 667/800/1066MHz
Supports Intel® Hyper-Threading Technology, Intel® Virtualization Technology(VT-x), Intel® Advanced Vector Extensions (AVX)
Chipset Intel® Q77 PCH
BIOS Phoenix BIOS (SPI ROM)
Memory Supports dual channel up to 16GB DDR3 1333/1600 MT/s SDRAM on 2x 240-pin and sockets
Expansion 1x PCIe 3.0 x16 slot (support PCIe x1, x4, x8, x16 mode)
1x mini-PCIe slot
Display VGA/HDMI®/DVI-D
Audio Intel® Q77 built-in High Definition Audio up to 96-kHz 24-bit
Realtek ALC886-GR, 7.1+2 channel
Audio Jack DIP Light Pink/Lime/Light Blue
Serial Port 1x RS-232 port on rear I/O
1x RS-232/422/485 selectable port on rear I/O
3x RS-232 with header
1x RS-232/422/485 with header
USB 4x USB 3.0 ports on rear I/O 6x USB 2.0 ports on board with 2x headers
Storage Device 2x SATA II
2x SATA III
GPIO On board programmable 16-bit Digital I/Os
Dimension 170mm(L) x 170mm(W); 6.69″(L) x 6.69″(W)

Ordering Guide

Ordering Guide
AB1-3790 (R).WADE-8013
Mini-ITX ESB.Q77 w/o ECC PGA1155.w/DDR3 SDRAM /VGA/DVI-D/HDMI®/Dual GbE/COM/Audio/USB 3.0

Packing List

One WADE-8013 Mini-ITX Main Board
One Installation CD
One SATA Cableaa
One I/O shield
