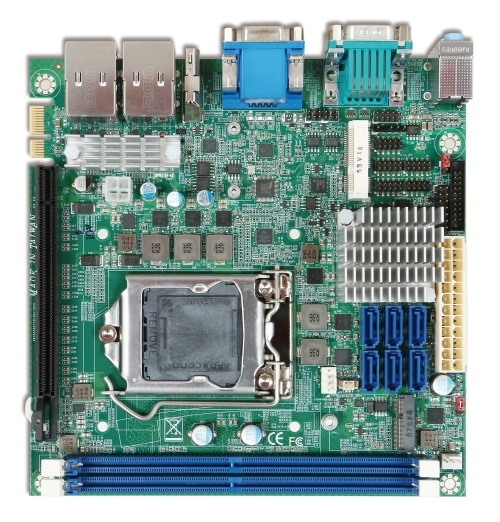

WADE-8017

Leading Desktop Intel^® 7^th and 6^th Gen Core™ Processors (former Kaby Lake/Skylake) Mini-ITX with DDR4 SDRAM, Triple Displays, 2x GbE LAN ports, 6x COM Ports

Features

Intel^® 7^th and 6^th Gen Core™ Processors support
2x long-DIMM support DDR4 ECC/Non- ECC SDRAM up to 32GB
Display : VGA/DP/HDMI^®
1x PCIe x1 Golden finger support SEB 6x SATA III ports support RAID 0/1/5/10 H110 just support 4x SATA port and not support RAID Function
1x PCIe x16 (Gen3), one M.2 type E socket (H110 not support)

Download

Description

WADE-8017 is based on Intel^® Q170/C236/ H110 chipset and desktop processors including Intel^® 7^th and 6^th Gen Core™ i3/i5/i7 SKU. This board supports DDR4, PCIe 3.0, and SATA III. Those features help you to build high performance and stability system

Specification

MODEL	WADE-8017
Form Factor	Mini-ITX
CPU	Intel^® 7^th and 6th Gen Core™ Processors CPU in LGA1151 package
Chipset	Intel^® Q170/H110/ C236 PCH
BIOS	AMI UEFI
Memory	2x DDR4 DIMM up to 32GB
Expansion	1x PCIe x16 slot 1x PCIe x1 Golden finger 1x M.2 type E socket 1x mini-PCIe socket
Display	DP/HDMI^®/VGA
Audio	Realtek ALC892 HDA codec
LAN	2x GbE
Serial Port	2x RS-232/422/485 4x RS-232
USB	4x USB 3.0 2x USB 2.0
Storage Device	6x SATA (H110 just 4x SATA)
GPIO	8 bit
Others	N/A
Dimension	170 x 170mm

Ordering Guide

AB1-3D16	(R).WADE-8017 Mini-ITX ESB.Q170 w/o ECC LGA1151.w/DDR4 SDRAM /VGA/DP/HDMI^®/Dual GbE/COM/Audio/USB
AB1-3D75	(R).WADE-8017-H110 Mini-ITX ESB.H110 w/o ECC LGA1151.w/DDR4 SDRAM /VGA/DP/HDMI^®/Dual GbE/COM/Audio/USB
AB1-3D76	(R).WADE-8017-C236. Mini-ITX ESB.C236 w/ECC LGA1151.w/DDR4 SDRAM /VGA/DP/HDMI^®/Dual GbE/COM/Audio/USB
AB1-3G16	(R).WADE-8017-kBL Mini-ITX ESB.Q170 w/ECC LGA1151.w/DDR4 SDRAM /VGA/DP/HDMI^®/Dual GbE/COM/Audio/USB
AB1-3G13	(R).WADE-8017-C236-kBL Mini-ITX ESB.C236 w/ECC LGA1151.w/DDR4 SDRAM /VGA/DP/HDMI^®/Dual GbE/COM/Audio/USB
AB1-3G12	(R).WADE-8017-H110-kBL Mini-ITX ESB.H110 w/o ECC LGA1151.w/DDR4 SDRAM /VGA/DP/HDMI^®/Dual GbE/COM/Audio/USB
