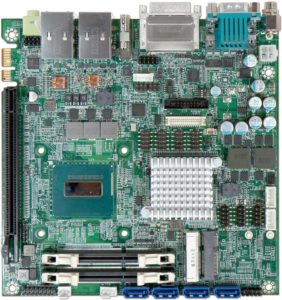

Intel® Core™ i3/i5/i7 mobile processor based MiniITX Board with dual Gigabit Ethernet, 4x SATA III ports, 6x COM ports, 1x PCIe x16 expansion slot and 2x mini-PCIe slot with mSATA interface


  • Intel® 4th Dual/Quad processor in FCBGA1364
  • Intel® QM87 PCH
  • 2x DDR3L SO-DIMM slots up to 16GB (supports 1600/1333 MT/s)
  • One PCIe x16 slot (Gen3 support)
  • 2x mini-PCIe slot (supports mSATA)
  • 1x PCIe x1 Gold finger (2x PCIe x1 signal)
  • 6x COM ports (2pcs on rear I/O, 4pcs on board header)
  • 4x SATA III Ports (supports RAID 0,1,5,10)
  • Total 10x USB ports (4x USB 3.0 Ports & 6x USB 2.0 Ports)


WADE-8022 is based on Intel® QM87 chipset and Mobile processor sku like Core™ i3/i5 and i7(BGA type). WADE-8022 of the Intel® platform will provide high performance and flexibility for functional expansion, such as Gaming, Kiosk, DS, Medical, Defense, Industrial automation and control applications.


Form Factor Mini-ITX
CPU Intel® 4th Dual/Quad Core™ processor in FCBGA1364
Chipset Intel® QM87 PCH
Memory Support up to 16GB DDR3L 1066/1333 MT/s SDRAM on 2x 204pin SO-DIMM
Expansion 1x PCIe 3.0 x16
2x mini-PCIe slot(switch function)
1x PCIe x1 Golden finger(Gen2)
Audio Intel® QM87 PCH built in HDA controller
Realtek ALC886-GR HAD codec,5.1 channels
Serial Port 1x RS-232 port on rear I/O
1x RS-232/422/485 selectable port on rear I/O
4x RS-232 port on pin header
USB 6x USB 2.0 ports 4x USB 3.0 ports
Storage Device 4x SATA III
GPIO 8 bit
Dimension 170mm(L) x 170mm(W); 6.69″(L) x 6.69″(W)

Ordering Guide

Ordering Guide
AB1-3A77 (R).WADE-8022
Mini-ITX ESB.Intel® QM87chipset on Board. w/DDR3L SO-DIMM/DVI-I /DP/HDMI®/Dual GbE Lan/COM/Audio/USB

Packing List

Packing List
One WADE-8022 motherboard
One Driver CD
One SATA cable


(Documents & Downloads)

  Catalog   WADE-8022 | Catalog    March 30, 2021
1.93 MB 2320 Downloads
      BIOS   BIOS_WADE-8022_R100E2_Update.zip | BIOS R1.00.E2   August 5, 2020

    fix PS2 function issue

    5.35 MB 863 Downloads
      BIOS   BIOS_WADE-8022_R100E1_Update.zip | BIOS R1.00.E1   March 31, 2020

    WADE-8022 series

    5.34 MB 839 Downloads
        Driver   Driver_WADE-8022_PROWinx64_21.0.exe | Driver 21.0   June 30, 2016

      Ethernet Driver for Win10 64bit

      39.27 MB 497 Downloads
        Driver   Driver_WADE-8022_PROWin32_21.0.exe | Driver 21.0   June 30, 2016

      Ethernet Driver for Win10 32bit

      25.46 MB 478 Downloads
        Driver   Driver_WADE-8022_ME_11.0.6.1193.zip | Driver   June 30, 2016

      ME Driver for Win10

      147.24 MB 1098 Downloads
        Driver   Driver_WADE-8022_GFX_15.40.8.4380.zip | Driver   June 30, 2016

      Graphic driver for Win10 32bit

      110.34 MB 1087 Downloads
        Driver   Driver_WADE-8022_GFX_15.40.24.4454.zip | Driver   June 30, 2016

      Graphic driver for Win10 64bit

      204.35 MB 1079 Downloads
        Driver   Driver_WADE-8022_Chipset_10.1.1.14_Public.zip | Driver   June 30, 2016

      Chipset Driver for Win10 32/64bit

      2.70 MB 1198 Downloads
        Driver   Driver_WADE-8022_Audio_R279.zip | Driver R279   June 30, 2016

      Audio driver for Win10 32bit

      124.85 MB 1095 Downloads
          User’s Manual   Manual_WADE-8022_R1.0.pdf | Manual 1.0   November 3, 2014

        WADE-8022 users manual

        5.03 MB 1697 Downloads
