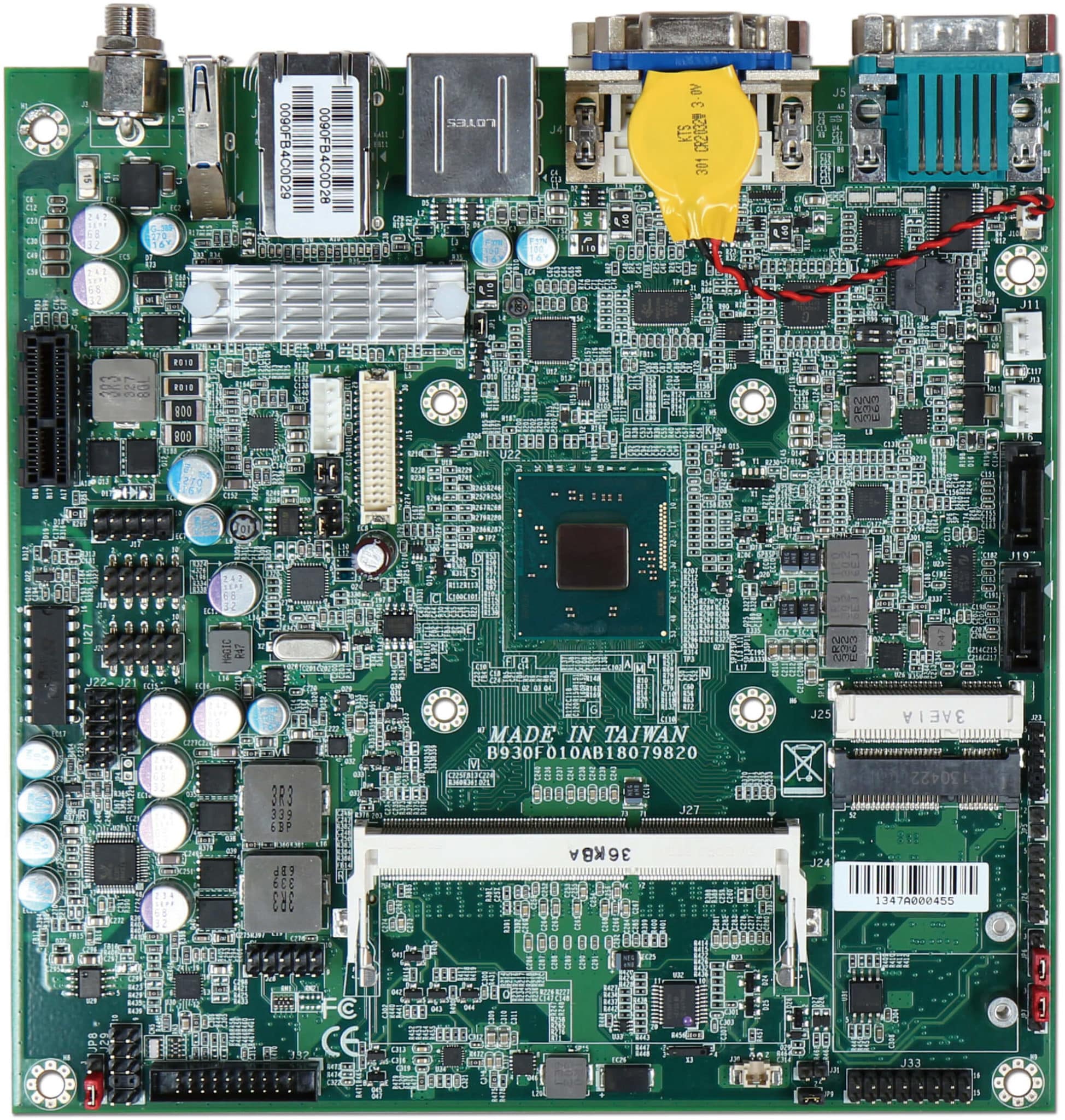

WADE-8079

Intel® Atom® E3800 SoC based Mini-ITX Board with VGA, DP, DVI, LVDS, Gigabit Ethernet, Audio, USB 3.0, SATA and 2x mini-PCIe slot with mSATA interface

Features

  •  Latest Intel® Atom™ embedded processor Expansion Interface provides cost effective solutions with low power and quad core processor technology
  •  Support two DDR3L 1066/1333MT/s SDRAM, up to 8GB (E3845/ E3826)
  •  Support one DDR3L 1066/1333MT/s SDRAM, up to 4GB (E3815)
  •  Supports VGA/DVI/DP&LVDS (Via switch)
  •  2x SATA II Ports (1x Switch Mini-PCIe)
  •  Total 5 USB ports (1x USB 3.0 Ports & 4x USB 2.0 Ports)

WADE-8079 is based on Intel® Atom® pro-cessor E3800 product family with memory and PCI Express controller integrated to support two-channel DDR3L memory and PCI Express 2.0 lanes. Portwell has taken advantage of such technology to furnish a se-ries of products that meets multiple industrial requirements for cost effectiveness, reliable performance and a high level of data integrity and uptime.

Specification

CPU Intel Atom® Processor E3815 (1 x 1.46 GHz, 512 KB L2, 5 W)
Intel Atom® Processor E3825 (2 x 1.33 GHz, 1 MB L2, 6 W)
Intel Atom® Processor E3826 (2 x 1.46 GHz, 1 MB L2, 7 W)
Intel Atom® Processor E3827 (2 x 1.75 GHz, 1 MB L2, 8 W)
Intel Atom® Processor E3845 (4 x 1.91 GHz, 2 MB L2, 10 W)
Form Factor Mini-ITX
Chipset SoC (System-On-Chip)
DRAM Up to 8 GB DDR3L SO-DIMM
Graphic Controller Intel® HD Graphics 4600 (CPU)
Display Interface DVI (1920×1200), DP (2560×1600), VGA (1920×1200), LVDS (1600×1200)
Storage 2x SATA II (3.0Gb/s)
Network 2x GbE Intel® I210IT
Expansion 1x Half-Size mini PCIe(USB, PCIe)
Bus Interface one PCIe x1 slot
TPM Module
Serial Interface 3x RS232
1x RS232/422/485
USB 1x USB 3.0
4x USB 2.0
Audio Intel® HD Audio, Realtek ALC892
Security TPM Module
Miscellaneous 2x PS/2 via pin header, GPIO 8bit,Watchdog Timer,HW monitoring temperature & voltage
Firmware Phoenix® SPI
Power Requirement ACPI 3.0 / APM 1.2
Power from W 12V – 24V DC-In
Operating Temperature 0°C – 60°C
Extended Temperature -40°C to -85°C
Dimensions 170×170 mm

Ordering Guide

Ordering Guide
AB1-3B39 (R).WADE-8079-E3845
Mini-ITX ESB.Intel® Bay Trail(Vallyview-I E3845 QC 1.9GHz processor) on Board .w/DDR3L SO-DIMM/VGA/DVI/DP/Dual GbE Lan/COM/USB

Packing List

Packing List
One WADE-8079 motherboard
One Driver CD
One SATA cable
