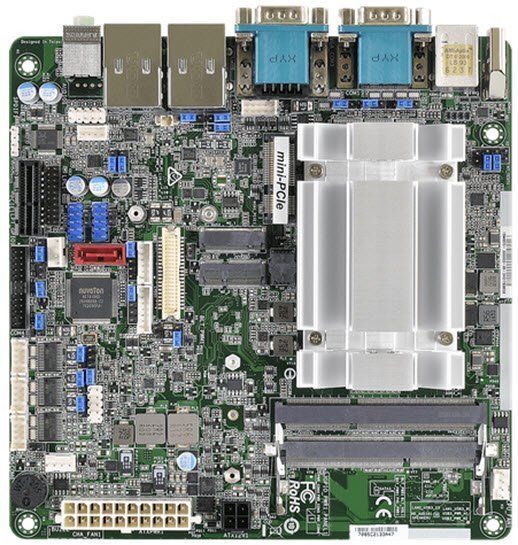

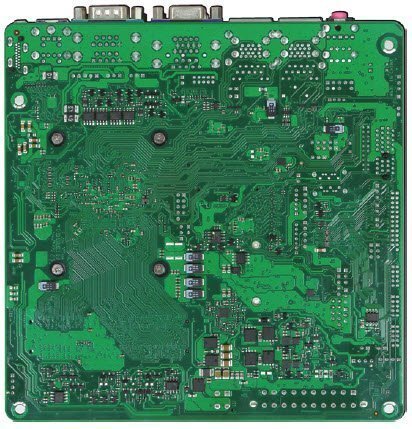

WADE-8171

Intel® Celeron® Processor N3150/N3160 Based Mini-ITX Board with VGA, HDMI®, LVDS, Dual GbE, USB 3.0, SATA III, mini-PCIe, and mSATA

Features

  • Intel® Pentium®/Celeron® Braswell SoC Processor
  • Supports Dual Channel DDR3L 1333/1600 MT/s, 2 x SO-DIMM, up to 8GB system memory
  • 1x HDMI®, 1x D-Sub, 1x Dual Channel 24- bit LVDS
  • 4x USB 3.0, 4x USB 2.0, 2x SATA III ports
  • Supports 1 x mini-PCIe, 1 x mSATA(shared)

Description

WADE-8171 is based on Intel® Celeron® processor N3160. With dual-channel DDR3L memory and rich I/O sets, WADE-8171 empowers energy-efficient solutions for pointof-sale (POS) and industrial automation applications.

Specification

MODEL WADE-8171
Form Factor Mini-ITX
CPU Intel® Atom® N3000 Family
Chipset N/A
BIOS AMI UEFI
Memory 2x DDR3L SO-DIMM up to 8GB
Expansion 1x PCIe x1 slot
2x mini-PCIe socket
Display VGA/HDMI®/LVDS
Audio Realtek ALC887 HDA codec
LAN 2x GbE
Serial Port 2x RS-232/422/485
4x RS-232
USB 4x USB 3.0
4x USB 2.0
Storage Device 2x SATA
GPIO 8 bit
Others N/A
Dimension 170 x 170mm

Ordering Guide

Ordering Guide
AB1-3D63 (R).WADE-8171-N3150
Mini-ITX ESB.Intel® Braswell Quad Core Celeron® 2.08GHz (6W). w/DDR3L/VGA/LVDS/ HDMI®/dual GbE LAN/SATA

Packing List

Packing List
1x WADE-8171 motherboard
1x I/O shield
1x SATA cable
1x Driver CD

Support

(Documents & Downloads)

  Catalog   WADE-8171 | Catalog    March 30, 2021
1.54 MB 3229 Downloads
      BIOS   BIOS_WADE-8171_R1.00.E4.zip | BIOS 0.0.5   May 16, 2023

    BIOS FW Updated

    修正R1.00.E3 Enhance System Compatibility導致LPT(parallel port)功能Fail

    3.19 MB 117 Downloads
      BIOS   BIOS_WADE-8171_R1.00.E3.zip | BIOS R1.00.E3   September 23, 2022

    BIOS FW Updated(Microcode/Audio Codec/ Enhance System Compatibility)

    3.2 MB 1598 Downloads
      BIOS   BIOS_WADE-8171-N3160_R1.00.E2 | BIOS R1.00.E2   July 18, 2019

    Update microcode

    3.16 MB 1014 Downloads
      BIOS   BIOS_WADE-8171-N3160_R1.00.E1 | BIOS R1.00.E1   June 21, 2019

    Support API tool

    3.16 MB 1033 Downloads
      BIOS   BIOS_N3160_WADE-8171_R1.00.E0 | BIOS R1.00.E0   December 5, 2018
    3.17 MB 1060 Downloads
        Driver   Driver-WADE-8171_Win10_64bit_VGA(v15.40.4.64.4300).zip    May 3, 2019
      172.08 MB 881 Downloads
        Driver   Driver-WADE-8171_Win10_64bit_TXE(v2.0.0.2060).zip    May 3, 2019
      36.11 MB 872 Downloads
        Driver   Driver-WADE-8171_Win10_64bit_INF(v10.0.26).zip    May 3, 2019
      2.58 MB 891 Downloads
        Driver   Driver-WADE-8171_Win10_64bit_Realtek_Audio(v7560).zip    May 3, 2019
      279.05 MB 845 Downloads
        Driver   Driver-WADE-8171_Win10_64bit_3TBUnlocker(v1.1.1).zip    May 3, 2019
      1.12 MB 892 Downloads
        Driver   Driver-WADE-8171_Win10 32bit_VGA(v15.40.4.4300).zip    May 3, 2019
      95.42 MB 802 Downloads
        Driver   Driver-WADE-8171_Win10 32bit_TXE(v2.0.0.2060) (1).zip    May 3, 2019
      36.11 MB 903 Downloads
        Driver   Driver-WADE-8171_Win10 32bit_Realtek_Audio(v7560) (1).zip    May 3, 2019
      279.05 MB 953 Downloads
        Driver   Driver-WADE-8171_Win10 32bit_INF(v10.0.26) (1).zip    May 3, 2019
      2.58 MB 943 Downloads
        Driver   ALL Driver-WADE-8171_Win10 32bit | Driver 20190117   January 17, 2019

      Win10 32bit VGA Driver
      Win10 32bit TXE Driver
      Win10 32bit_INF Driver
      Win10 32bit COM port Driver
      Win10 32bit 3TB Unlocker Driver

      139.69 MB 1942 Downloads
        User’s Manual   Manual_WADE-8171_R0.4.pdf    November 22, 2018
      6.31 MB 995 Downloads
