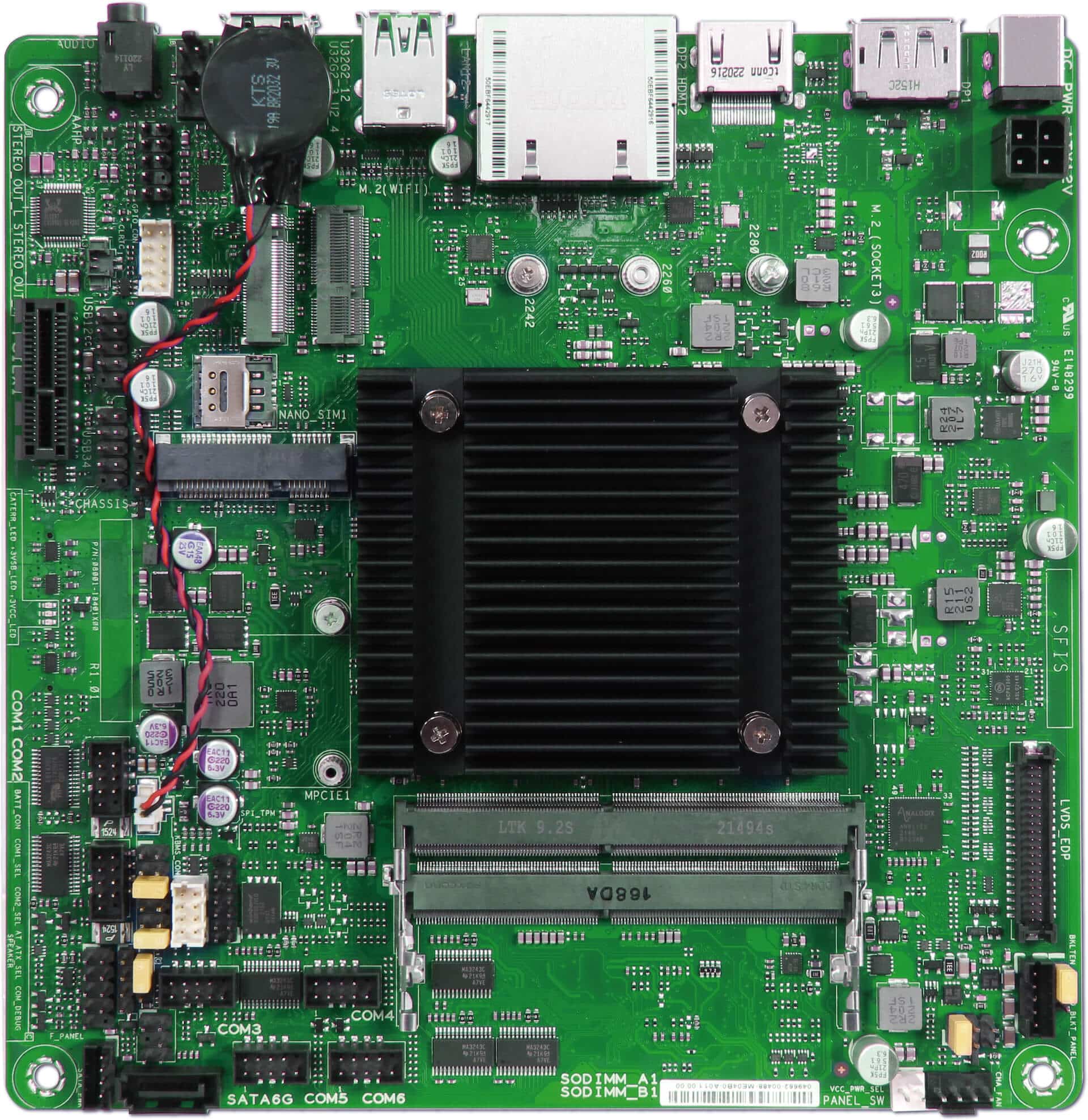

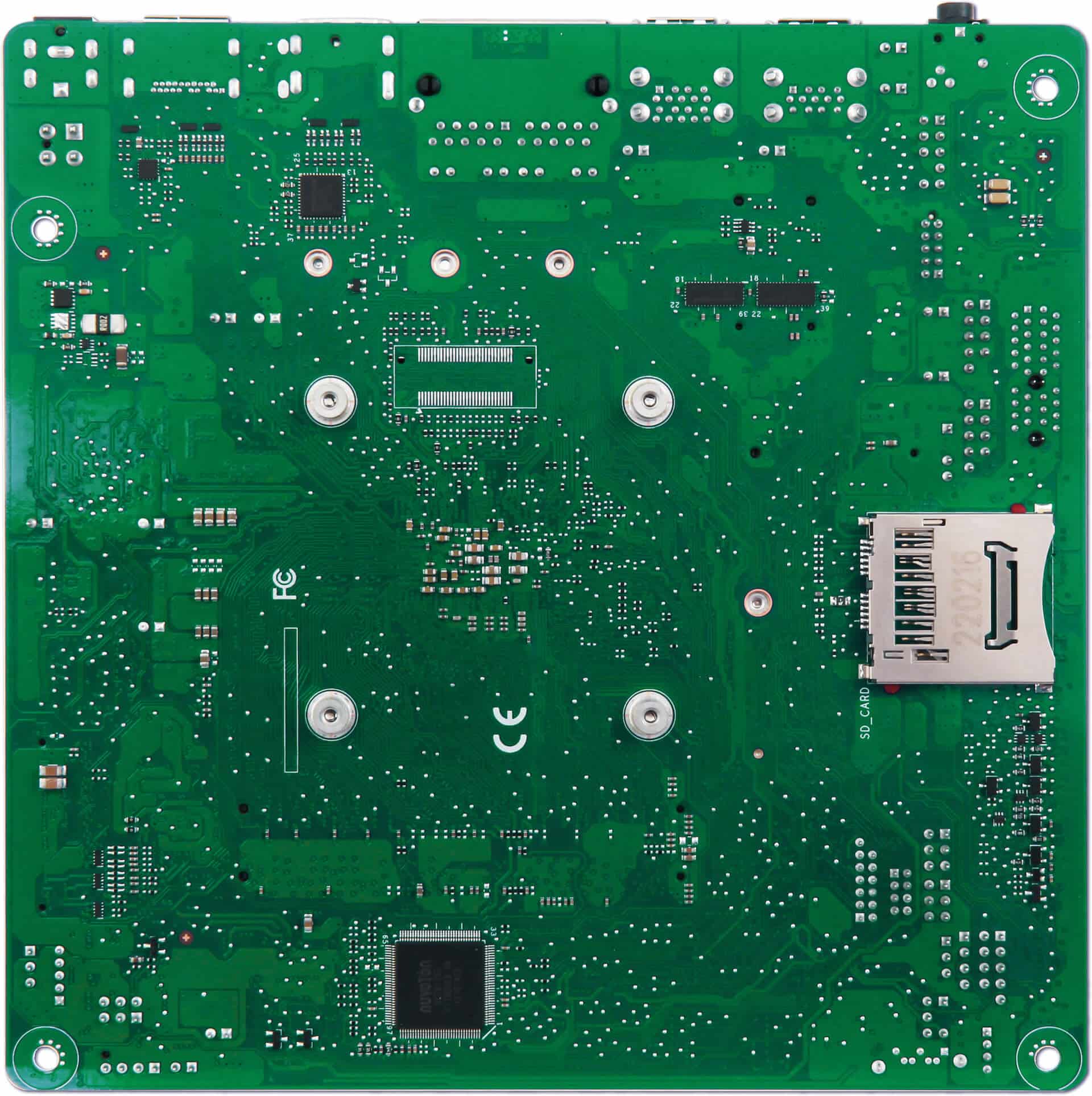

WADE-8173-J6412

Intel® Celeron® Processor J6412 based Mini-ITX Board with HDMI®, DP, LVDS/eDP, Dual GbE, USB 3.2 Gen2, SATA III, Mini PCIe, M.2

Features

  • Intel® Celeron® Processor J6412(formerly Elkhart Lake)
  • Two SO-DIMM support DDR4 DRAM up to 32GB
  • Support dual Ethernet, 6x COM Ports
  • Support 3x USB 3.2 Gen2, 5x USB 2.0, 1x SATAIII port
  • Support one PCIe x1(Gen3), one M.2 Key E 2230 with PCIe x1 and USB2.0 for Wireless, one M.2 Key M 2242/2260/2280 with PCIe x2 and SATA signal for SSD and one full/half size Mini PCIe socket with PCIe x1(with SIM holder) and one Full size SD card slot

Description

WADE-8173-J6412 is based on Intel® Celeron® processor J6412. With dual channel DDR4 SO-DIMM memory and rich I/O sets, the Portwell WADE-8173-J6412 Mini-ITX embedded board empowers energyefficient solutions for point-of-sale (POS) and industrial automation applications.

Specification

Specifications
General
Processor Intel® Celeron® processor J6412 in FCBGA1493 package, 2.0 GHz (2.6 GHz
turbo), 1.5 MB L2 Cache, 10W TDP
Chipset N/A
BIOS AMI uEFI BIOS
Memory Support 2x SO-DIMM sockets up to 32GB DDR4 3200 MHz non-ECC memory
Storage Devices 1x SATAIII ports
Watchdog Timer Programmable watchdog timer
Hardware Monitoring Temperature (CPU & System)
Expansion Interface
  • 1x PCIe x1 Gen 3
  • 1x M.2 Key E 2230 with PCIe x1 and USB 2.0 for Wireless
  • 1x M.2 Key M 2242/2260/2280 with PCIex2 and SATA signal for SSD
  • 1x full/half size Mini PCIe socket with PCIe x1(with SIM holder)
  • 1x Full size SD card slot



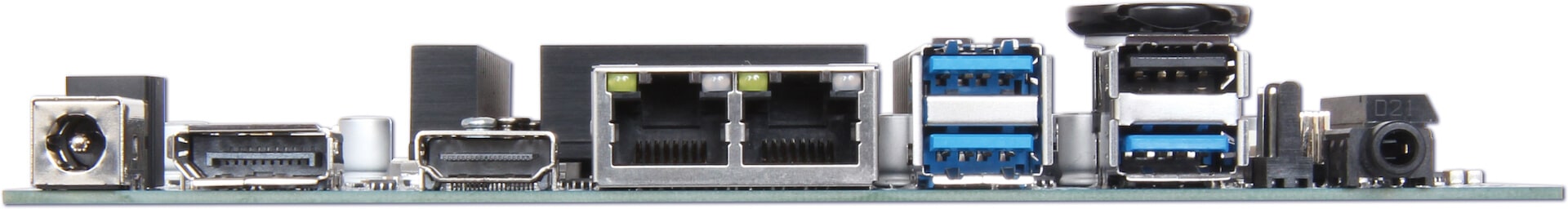

I/O INTERFACE
I/O INTERFACE
Audio
  • Intel® High Definition Audio interface Realtek® ALC897 High Definition Audio
  • 1x audio jack support Line-out
Ethernet 2x RJ45 connectors on rear I/O (Realtek® RTL8111H)
Serial port
  • 1x RS232/422/485 port on pin header
  • 5x RS232 ports on pin header
USB
  • 3x USB 3.2 Gen2 on rear I/O
  • 1x USB 2.0 on rear I/O
  • 4x USB 2.0 on pin header
GPIO 8-bit GPI/GPO



DISPLAY
DISPLAY
Graphic Controller
  • Integrated Intel® UHD Graphics
  • Supports DirectX 12, OpenGL 4.5, OpenCL 1.2
Display Interface
  • Triple Displays
  • DP1: resolution up to 4096×2160
  • DP2: resolution up to 4096/2160 (colay with HDMI®)
  • HDMI®: resolution up to 3840×2160 (Default)
  • LVDS: resolution up to 1920×1200 (Default)
  • eDP: resolution up to 4096×2160 (colay with LVDS)



Mechanical & Environment
Mechanical & Environment
Dimension 170mm(L) x 170mm(W)
Power Supply 12V DC in (1x external DC jack; 1x internal 4 pin power connector)
Environment
  • Operation Temperature: 0°C to 60°C
  • Storage Temperature: -20°C to 80°C
  • Relative Humidity: 5% to 95%, non-condensing
MTBF Over 100,000 hours at 40°C

Ordering Guide

Ordering Guide

AB1-3P59

(R).WADE-8173-J6412.
Mini-ITX ESB.Intel Elkhart lake SoC Processor J6412 w/DDR4/DP/LVDS/HDMI®/dual GbE LAN/ SATA



Packing List

Packing List

One WADE-8173-J6412 motherboard

Two I/O shield
Two SATA cable
One SATA power cable

Support

(Documents & Downloads)

  Catalog   Catalog_WADE-8173-J6412.pdf | Catalog 20230327   September 22, 2022
454 KB 2526 Downloads
      BIOS   BIOS_WADE-8173-J6412_10600_update.zip | BIOS 1.06.00   October 18, 2023

    WADE-8173-J6412 BIOS update

    5.68 MB 137 Downloads
      BIOS   BIOS_WADE-8173-J6412_1.04.00.zip | BIOS 1.04.00   June 26, 2023

    BIOS FW Update

    To fix Motherboard will turn on automatically after plug in the DC Jack rarely

    5.68 MB 258 Downloads
      BIOS   BIOS_WADE-8173-J6412_1.02.00.zip | BIOS 1.02.00   November 3, 2022
    5.66 MB 1040 Downloads
        Driver   ALL_Driver-WADE-8173_Win10/Win11-64bit.zip | Driver    November 3, 2022

      Win10/Win11 driver.

      662.7 MB 1026 Downloads
          User’s Manual   Manual_WADE-8173-J6412_R1.1.pdf | Manual R1.1   March 27, 2023
        1.79 MB 252 Downloads
