Leading Desktop Intel® 7th and 6th Gen Core™ Processors (former Kaby Lake/Skylake) Mini- ITX with DDR4 SDRAM, Triple Displays, Two GbE LAN ports, Six COM Ports


  • Intel® 7th and 6th Gen Core™ Processors support
  • Supports two SO-DIMMs support DDR4 Non-ECC SDRAM up to 32GB
  • Supports dual Ethernet, six COM Ports, eight USB Ports, two SATA III Ports and Audio
  • Supports one PCIe x16 slot, and one mini-PIe socket(mSATA)

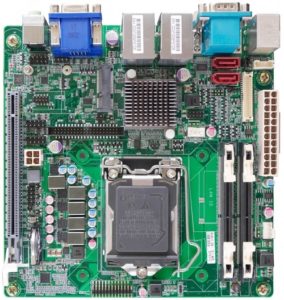

WADE-8210-H110 is based on Intel® H110 chipset and Desktop processors including Intel® 7th and 6th Gen Core™ i3/i5/i7 SKU. This board supports DDR4, PCIe 3.0, and SATA III. Those features help you to build high performance and stable system.


MODEL WADE-8210-H110
Form Factor Mini-ITX
CPU Intel® 7th and 6th Gen Core™ Processors CPU in LGA1151 package
Chipset Intel® H110
Memory up to 32GB DDR4 2133 Non-ECC SDRAM on two 260 pin SO-DIMM socket
Expansion 1x PCIe x16
1x mini-PCIe socket
Audio Realtek ALC269HDA codec
LAN 2x GbE
Serial Port 2x RS-232
4x RS-232
USB 4x USB3.0
4x USB2.0
Storage Device 2x SATA III
GPIO 8 bit
Others N/A
Dimension 170 x 170 mm

Ordering Guide

AB1-3G39 (R).WADE-8210-H110
Mini-ITX ESB.H110 w/o ECC LGA1151.w/DDR4 SO-DIMM /VGA/HDMI®/Dual GbE/COM/Audio/USB

Packing List

One CPU Cooler bracket
One SATA cable
One Installation CD
One I/O shield
One WADE-8210-H110 Main board


(Documents & Downloads)

  Catalog   WADE-8210-H110 | Catalog    March 30, 2021
1.62 MB 2413 Downloads
      BIOS   BIOS_WADE-8210-H110_R100E0.zip | BIOS R1.00.E0   May 3, 2021

    support KBL / SBL

    3.47 MB 1075 Downloads
      BIOS   BIOS_WADE-8210-H110_R100E1.zip | BIOS R1.00.E1   May 3, 2021

    Update Intel uCode

    3.51 MB 1125 Downloads
