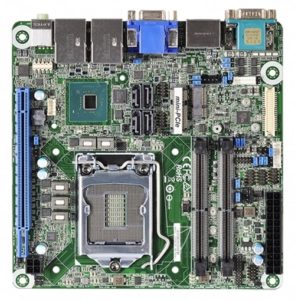

WADE-8211-Q370

Leading Desktop Intel® 8th Gen Core™ Processors Mini-ITX with DDR4 SO-DIMM up to 64G, VGA ,Dual DP ports ,Two GbE LAN ports, Five COM Ports

Features

  • Intel® 8th/9th Gen Core™ Processors support
  • Supports two SO-DIMMs suppor t DDR4 Non-ECC SDRAM up to 64GB
  • Supports dual Ethernet, five COM Ports, eight USB Ports, four SATA III Ports and Audio
  • Supports one PCIe x16(Gen3), one M.2 Key E 2230 with PCIe x1, CNVI and USB2.0 for Wireless, one M.2 Key M 2242/2260/2280 with PCIe x4 and SATA3 for SSD and one mini-PCIe slot

Description

WADE-8211-Q370 is based on Intel® Q370 chipset and Desktop processors including Intel® 8th/9th Gen Core™ i3/i5/i7 SKU. This board supports DDR4, PCIe 3.0, and SATA III. Those features help you to build high performance and stabile system.

Specification

MODEL WADE-8211-Q370
Form Factor Mini-ITX
CPU Intel® Core™ i3/i5/i7/ Pentium® Celeron®
Chipset Intel® Q370
BIOS AMI UEFI
Memory 2x DDR4 SO-DIMM up to 64G
Expansion
  • 1x PCIe x16 Gen 3
  • 1x M.2 Key E 2230 with PCIe x1, CNVI and USB2.0 for Wireless
  • 1x M.2 Key M 2242/2260/2280 with PCIe x4 and SATA3 for SSD
  • 1x mini-PCIe slot
Display VGA/Dual DP/LVDS
Audio Realtek ALC887 HDA codec
LAN 2x GbE
Serial Port
  • 3x RS-232
  • 2x RS-232/422/485
USB
  • 4x USB3.2 Gen1
  • 4x USB2.0
Storage Device
  • Supports 4x SATA III ports
  • Supports RAID 0, 1, 5, 10
GPIO 8 bit
Others N/A
Dimension 170 x 170mm

Ordering Guide

AB1-3D63 (R).WADE-8211-Q370
Mini-ITX ESB.Q370 w/o ECC LGA1151.w/DDR4SO-DIMM /VGA/Dual DP/Dual GbE/COM/Audio/USB

Packing List

One WADE-8211-Q370 Main board
One I/O shield
One Installation CD
One SATA cable
One CPU coolor bracket
