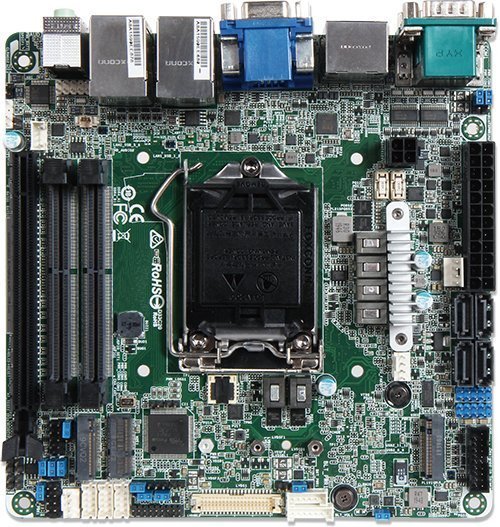

WADE-8212-Q470E

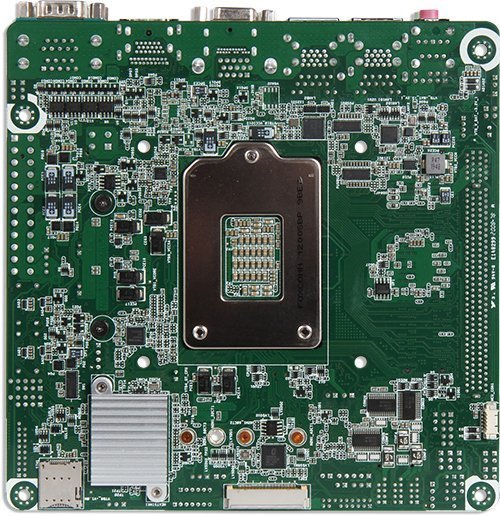

WADE-8212-Q470E_back

WADE-8212-Q470E

Leading Desktop Intel® 10th Gen Core™ Processors Mini-ITX with DDR4 SO-DIMM up to 64G, VGA , DP port, HDMI®, LVDS,Two GbE LAN ports, Five COM Ports

Features

  • Intel® 10th Gen Core™ Processors support
  • Supports two SO-DIMMs support DDR4 Non-ECC SDRAM up to 64GB
  • Supports dual Ethernet(one port support 1G/one port support 2.5G), five COM Ports, ten USB Ports, four SATA III Ports and Audio
  • Support one PCIe x16(Gen3), one M.2 Key E 2230 with PCIe x1, CNVI and USB2.0 for Wireless, one M.2 Key M 2242/2260/2280 with PCIe x4 and SATA3 for SSD, one M.2 Key B 3042/3052 with USB 3.0 Signal and one SIM Card socket
Download
Sales Request

Description

WADE-8212-Q470E is based on Intel® Q470E chipset and Desktop processors including Intel® 10th Gen Core™ i3/i5/i7 SKU. This board supports DDR4, PCIe 3.0, and SATAIII. Those features help you to build high performance and stabile system.

Specification

MODEL WADE- 8212-Q470E
Form Factor Mini-ITX
CPU Intel® CoreTM i3/i5/i7/ i9/Pentium®/ Celeron®
Chipset Intel® Q470E
BIOS AMI UEFI
Memory 2x DDR4 SO-DIMM up to 64G
Expansion
  • 1x PCIe x16 Gen 3
  • 1x M.2 Key E 2230 with PCIe x1, CNVI and USB2.0 for Wireless
  • 1x M.2 Key M 2242/2260/2280 with PCIe x4 and SATA3 for SSD
  • 1x M.2 Key B 3042/3052 with USB 3.0 Signal
  • 1x SIM Card socket
Display LVDS/Dual DP/HDMI/VGA
Audio Realtek ALC887 HDA codec
LAN 2x GbE
Serial Port
  • 3x RS-232
  • 2x RS-232/422/485
USB
  • 6x USB3.2 Gen1
  • 4x USB2.0
Storage Device
  • Supports 4x SATA III ports
  • Supports RAID 0, 1, 5, 10
GPIO 8 bit
Others N/A
Dimension 170 x 170mm

Ordering Guide

AB1-3D63 (R).WADE-8212-Q470E
Mini-ITX ESB.Q470E w/o ECC LGA1200.w/DDR4 SO-DIMM /VGA/DP/HDMI®/Dual GbE/COM/Audio/USB

Packing List

One WADE-8212-Q470E Main board
One I/O shield
One Installation CD
One SATA cable
One CPU coolor bracket
