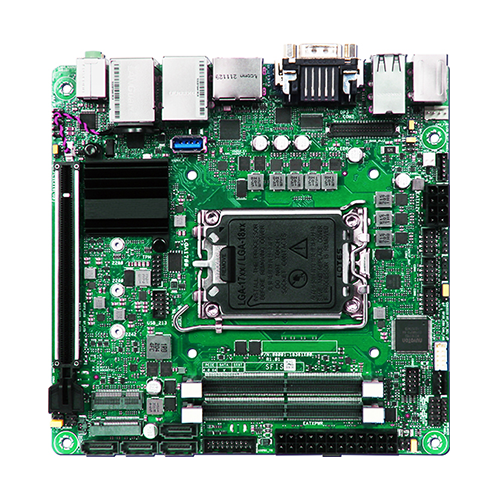

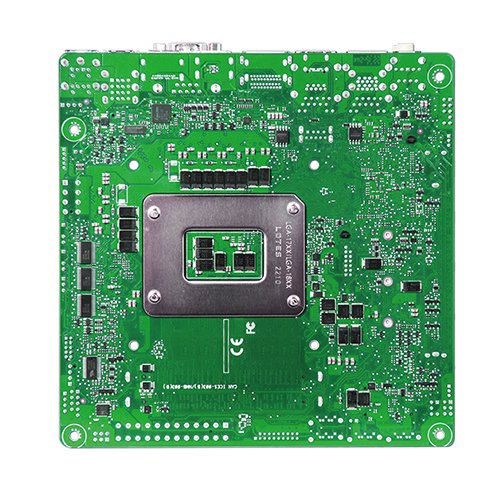

Intel® 12th/13th/14th Gen Core™ Processors based Mini-ITX Board with DDR5 SO-DIMM up to 96GB, eDP/LVDS, 3x DP Ports, HDMI®, Dual GbE LAN, 5x COM Ports

Features

  • Support Intel® 12th/13th/14th Gen Core™ Processors
  • Two SO-DIMM support DDR5 DRAM up to 96GB
  • Support dual Ethernet, 5x COM ports, 3x USB 3.2 Gen2 ports, 4x SATA III ports and Audio
  • Support one PCIe x16(Gen5), one M.2 Key E 2230 with PCIe x1 and CNVI for Wireless and one M.2 Key M 2242/2260/2280 with PCIe x4 and SATA3 for SSD
Download
Sales Request

Description

WADE-8213-Q670E is based on Intel® Q670E chipset and 12th/13th/14th Gen Intel® Core™ i3/i5/i7/i9 desktop processors. It supports multiple display outputs, options of legacy features for industrial applications, GPIO ports, dual LAN as well as rich expandability with PCIe Gen5, M.2 M and M.2 E keys. Featuring rich I/O capabilities and advanced connectivity on a smaller and thinner space-saving platform, the Portwell WADE-8213-Q670E is ideal for a wide range of embedded applications.

Specification

Specifications
General
Processor Intel® 12th/13th/14th Gen Core™ Processors CPU in LGA1700 package
Chipset Intel® Q670E
BIOS AMI uEFI BIOS
Memory
  • Supports two DDR5 dual channel up to 96GB SO-DIMM sockets
  • Supports DDR5-5600 MT/s 1DPC 1R and DDR5-5200 MT/s 1DPC 2R SO-DIMM memory on all i9,i7 and select i5 SKUs
Storage Devices
  • Supports 4x SATA III ports
  • Supports RAID 0, 1, 5, 10
Watchdog Timer Programmable watchdog timer
Hardware Monitoring System monitor(Voltage, Fan Speed and Temperature)
Expansion Interface
  • 1x PCIe x16 Gen 5
  • 1x M.2 Key E 2230 with PCIe x1 and CNVI for Wireless
  • 1x M.2 Key M 2242/2260/2280 with PCIe x4 and SATA3 for SSD

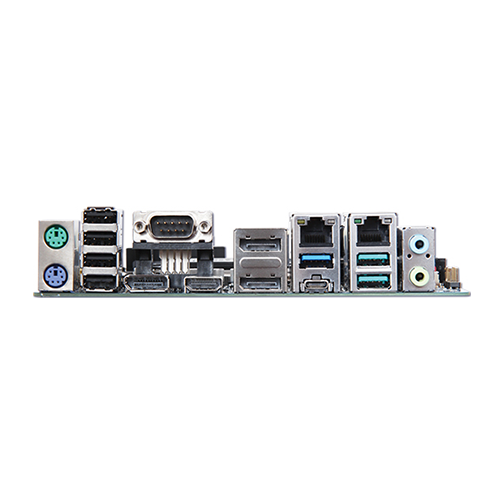

I/O INTERFACE
Audio Audio Jack on rear I/O with Line-out / Line-in with Realtek ALC897 audio controller
Ethernet
  • Intel® I210AT (1GbE) and Intel® I225LM (2.5GbE) Ethernet controller
  • 2x RJ45 connectors on rear I/O
Serial port
  • 2x RS232/422/485 ports (one port on rear I/O and one port on board header)
  • 3x RS232 port on pin header
USB
  • 3x USB3.2 (Gen2) on rear I/O(2x Type A + 1x Type C)
  • 1x USB3.2 (Gen1) on rear I/O
  • 1x USB3.2 (Gen1) on board(Vertical Type-A)
  • 2x USB3.2 (Gen1) on pin header
  • 4x USB2.0 on rear I/O
  • 2x USB2.0 on pin header
GPIO 8-bit configurable controlled by embedded controller
DISPLAY
Graphic Controller Intel® UHD Graphics 770 supports DirectX 12, OpenGL 4.6
Display Interface
  • DP: Three DP ports on rear I/O, resolution up to 8K
  • eDP/LVDS: One eDP/LVDS port on board header, switch by BIOS
  • HDMI®: One HDMI® connector on rear I/O
Mechanical & Environment
Dimension 170mm(L) x 170mm(W)
Power Supply ATX power input
Environment
  • Operation Temperature: 0°C to 60°C
  • Storage Temperature: -20°C to 80°C
  • Relative Humidity: 5% to 95%, non-condensing
MTBF Over 100,000 hours at 40°C

Ordering Guide

Ordering Guide

AB1-3P58

 (R).WADE-8213-Q670E Mini-ITX ESB. Q670E. w/o ECC LGA1700.w/DDR5 SO-DIMM /DP/HDMI®/Dual GbE/COM/Audio/USB



Packing List

Packing List

One WADE-8213-Q670E Main board
One I/O shield
One SATA cable
One CPU cooler backplate
Sales Request

Support

(Documents & Downloads)

  Catalog   Catalog_WADE-8213-Q670E.pdf | Catalog 20240116   September 22, 2022
Download
663 KB 2370 Downloads
      BIOS   BIOS_WADE-8213-Q670E_PORTWELL_2.52.00.zip | BIOS 2.52.00   February 5, 2024
    Download
    11.50 MB 18 Downloads
      BIOS   BIOS_WADE-8213-Q670E_PORTWELL_2.03.00.zip | BIOS    November 27, 2023
    Download

    WADE-8213-Q670E BIOS update

    10.95 MB 49 Downloads
      BIOS   BIOS_WADE-8213-Q670E_2.01.00.zip | BIOS 2.01.00   June 26, 2023
    Download

    BIOS FW Update

    To support 9260NGW wifi card

    10.95 MB 325 Downloads
      BIOS   BIOS_WADE-8213-Q670E_20000.zip | BIOS 2.00.00   April 25, 2023
    Download

    Update BIOS to support 13th Raptor lake-S

    10.99 MB 180 Downloads
      BIOS   BIOS_WADE-8213-Q670E_10000.zip | BIOS 1.00.00   October 12, 2022
    Download

    BIOS

    10.59 MB 1156 Downloads
        Driver   ALL_Driver-WADE-8213_Win10_Win11-64bit_Updated.zip | Driver NA   January 10, 2024
      Download

      Driver update to support 14th Gen CPUs

      1.22 GB 31 Downloads
        Driver   ALL_Driver-WADE-8213_Win10/Win11-64bit.zip    October 11, 2022
      Download
      1.22 GB 1060 Downloads
          User’s Manual   WADE-8213-Q670E | User Manual R1.4 R1.4   January 19, 2024
        Download

        Updated WADE-8213 SATA RAID function

        3.12 MB 37 Downloads
            Software   Portwell Engineering Toolkit [PET] 4.7.12 | Software 4.7.12   March 26, 2024
          Download

          A Universal API for Hardware Access in Both Linux and Windows

          • PET-supported OS: Windows 7, Windows 10, Ubuntu 18.04, and later, and CentOS 7 and later.
          • PET API sample code test application path:
            • Windows PET_API sample code: PET_API, Windows, sample, TESTAP.cpp
            • Linux PET_Utility: PET_API, Linux, x64, release, TESTAP.c

          Supported products list:

          Series Models
          AMDY AMDY-7002
          ANSB ANSB-7A44E
          CEKL CEKL-XXXX
          FUDA3 FUDA3-S1012, FUDA3-S1022, FUDA3-S1212, FUDA3-S1222, FUDA3-S1512, FUDA3-S1522
          KBB KBB-212E
          KUBE KUBE-2110
          Kuber Kuber-2000, Kuber-212
          MEDB MEDB-1002, MEDB-1004, MEDB-51A0, MEDB-5180, MEDB-6060, MEDB-6070
          MEDM MEDM-6180, MEDM-B641
          NANO NANO-5050, NANO-6040, NANO-6050, NANO-6051, NANO-6060, NANO-6062, NANO-6063, NANO-6064, NANO-8044
          PAB PAB-1001
          PCOM PCOM-B217, PCOM-B217J, PCOM-B218VGT, PCOM-B219VG, PCOM-B21A, PCOM-B630VG, PCOM-B632VG, PCOM-B633, PCOM-B634VG, PCOM-B635VG, PCOM-B636VG, PCOM-B637VG, PCOM-B638VG, PCOM-B639VG, PCOM-B641VG, PCOM-B645VGL, PCOM-B651VGL, PCOM-B652, PCOM-B653VGL, PCOM-B654GL, PCOM-B655VGL, PCOM-B656VGL, PCOM-B657VGL, PCOM-B658VGL, PCOM-B659, PCOM-B700G, PCOM-B700G-NS, PCOM-B701GT, PCOM-B702G, PCOM-B702GT, PCOM-B705GT, PCOM-B706, PCOM-B706GT, PCOM-B800-GT, PCOM-B8800, PCOM-B880VG2, PCOM-BA00, PCOM-BA01, PCOM-BA02GL
          PEB PEB-2131, PEB-2131C, PEB-2133, PEB-2737, PEB-2738I, PEB-2739I, PEB-2771, PEB-2772, PEB-2773, PEB-2773VGATM, PEB-2781, PEB-5731, PEB-9782, PEB-99A3, PEB-99A5, PEB-99A7, PEB-99A8
          PF PF-8021
          PGB PGB-5120S
          PICO PICO-6260
          PNS PNS-9730
          PQ7 PQ7-M104, PQ7-M105, PQ7-M106IL, PQ7-M107, PQ7-M108
          PSMC PSMC-C921, PSMC-M1011
          PT PT-D711
          PX1 PX1-C415, PX1-C441
          ROBO ROBO-6911VG2AR, ROBO-6911VG2AR-Q170, ROBO-8110, ROBO-8111VG2AR-Q77, ROBO-8112, ROBO-8113VG2AR, ROBO-8113VG2AR-Q170, ROBO-8114VG2AR, ROBO-8114VG2AR-PCIE1, ROBO-8114VG2AR-Q370, ROBO-8115VG2AR, ROBO-8115VG2AR-Q470E, ROBO-8116G2AR, ROBO-8116G2AR-Q670E, ROBO-8116G2AR-Q670E-R, ROBO-8116G2AR-R, ROBO-8210, ROBO-8779, ROBO-8780, ROBO-9910
          RUBY RUBY-D712, RUBY-D714VG2AR, RUBY-D716, RUBY-D718VG2AR, RUBY-D720, RUBY-D812-Q470E, RUBY-D813-H610E, RUBY-PB6511, RUBY-SQ1703
          SBC SBC-C430
          Software
          WADE WADE-7220-R2314, WADE-8011, WADE-8012, WADE-8013, WADE-8015, WADE-8016, WADE-8017, WADE-8020, WADE-8022, WADE-8046, WADE-8066, WADE-8067, WADE-8068, WADE-8070, WADE-8071, WADE-8072, WADE-8075, WADE-8077, WADE-8078, WADE-8079, WADE-8132, WADE-8170, WADE-8173, WADE-8173-J6412, WADE-8211-Q370, WADE-8212-Q470E, WADE-8213-Q670E, WADE-8321, WADE-PQ7712, WADE-SQ1705
          WEBS WEBS-2190, WEBS-45H1, WEBS-45H3, WEBS-5481, WEBS-5481-S, WEBS-85H1, WEBS-85H2, WEBS-85HX, WEBS-89I0
          11.96 MB 54 Downloads
