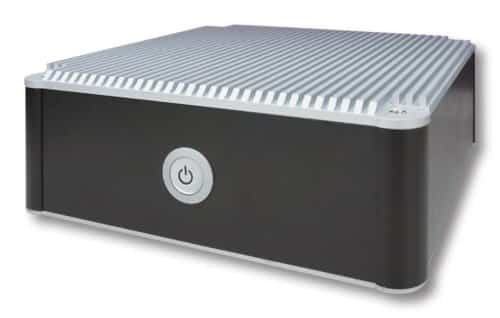

The WEBS-2190 builds on Intel® Baytrail SoC and takes advantages of Intel® Atom® E3800 Series processor technologies, especially its vastly superior Quad-Core processing power and capability. The cost-effective CPU with high performance is of great use to build up a compact system, the WEBS-2190, it supports a wide temperature from -25°C to 60°C for fanless applications in harsh environment, such as POS, kiosk, digital signage, transportation and automation.
| Model | WEBS-2190 |
| M/B | NANO-6060 |
| Form Factor | NANO-ITX |
| System | |
| CPU | Atom® E2827 1.75GHz Atom® E3845 1.91GHz |
| Chipset | Intel® SoC |
| BIOS | Phoenix UEFI |
| Memory | DDR3L/4GB |
| Graphic Controller | Intel® Gen 7 Graphics |
| Audio Codec | ALC892 |
| Super I/O | EC ITE IT8528 |
| Storage | 1x 2.5” SATA HDD/SSD 1x Micro-SD |

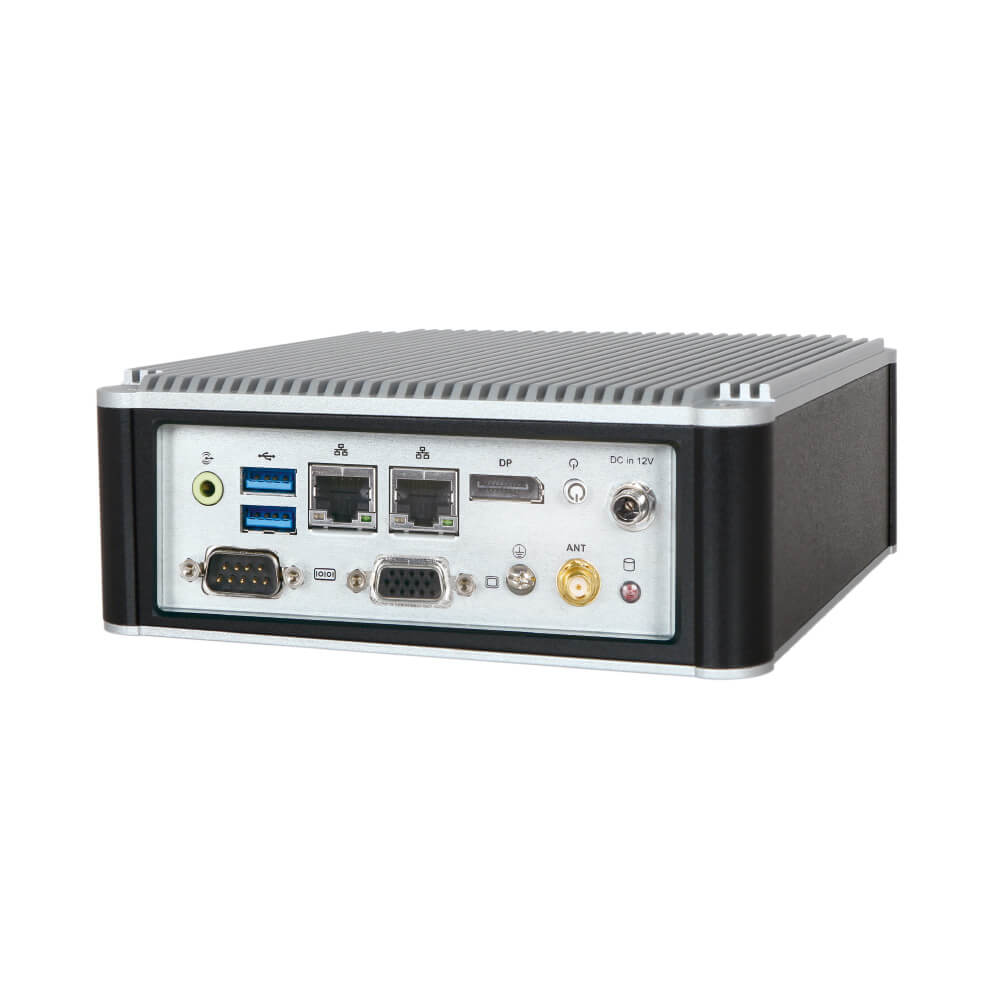

| External I/O | |
| Serial | 1x RS-232/422/485 |
| USB | 2x USB3.0 |
| Display | VGA, DP |
| Ethernet | Intel® I210IT x 2 |
| PS/2 | N/A |
| Audio | Line-out |
| D I/O | N/A |
| Expansion | 1x Half-size Mini-PCIe |
| PWR | |
| System | DC 12V |
| Environment | |
| OP Temp. | -25°C ~ 60°C |
| Storage Temp. | -40°C ~ 80°C |
| Humidity | 95%@40°C, non-condensing |
| Vibratoin | 5Grms/10-500Hz |
| Shock | 50G, 11 msec |
| Mechanical | |
| Dimension(WxDxH) | 150 x 150 x 53 mm |
| Weight | 1.3 Kg |
| AS5-3367 | (R).ATO.WEBS-2190.NANO-ITX System |
