WEBS-21D0

Embedded Compact Fan-less System with Intel® Atom® E3900 Series based NANO-ITX Board

Features

  • Powered by Intel® Atom® Apollo Lake Dual/ Quad-core™ E3900 Series SoC
  • Support 1x 2.5” HDD/SSD, 1x mSATA, 1x Micro SD
  • Dual Display by VGA, DP
  • 1x M.2 and 1x Full-size Mini-PCIe socket (colay with mSATA)

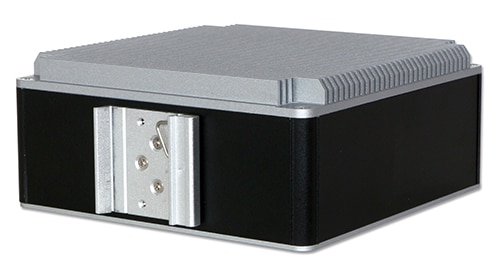

  • Support Wall mount, Panel/VESA mount and DIN Rail mount

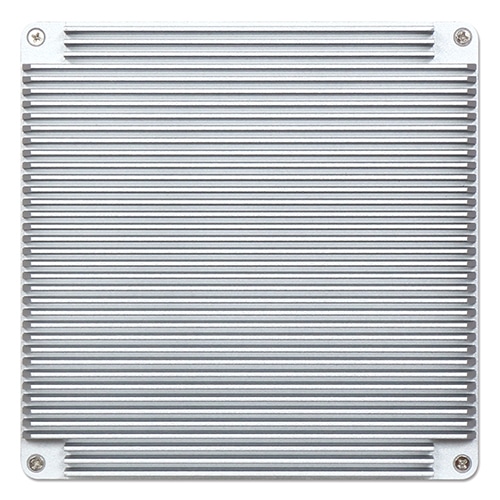

  • Wide Operating Temperature support (-20~ 60°C) with Fan-less design
  • Wide Range DC 12V ~ 24V power input

The WEBS-21D0 takes advantage of Intel® Atom® E3900 series processor technologies, especially its vastly superior Quad-Core™ processing power and capability. The low power, cost-effective processor with high perfromance is of great use to build up a compact system, WEBS-21D0, which supports wide operating temperature from -25°C to 60°C for fan-less applications in harsh environment, such as kiosk, digital signage, transportation and factory automation.

Specification

Model WEBS-21D0
M/B NANO-6062
Form Factor NANO-ITX
System
CPU Atom® E3950 1.80GHz Atom® E3940 1.60GHz
BIOS AMI UEFI
Memory DDR3L/8GB
Graphic Controller Intel® Gen 9 Graphics
Audio Codec ALC892
Super I/O EC ITE IT8528
Storage 1x 2.5” SATA HDD/SSD 1x mSATA, 1x SD

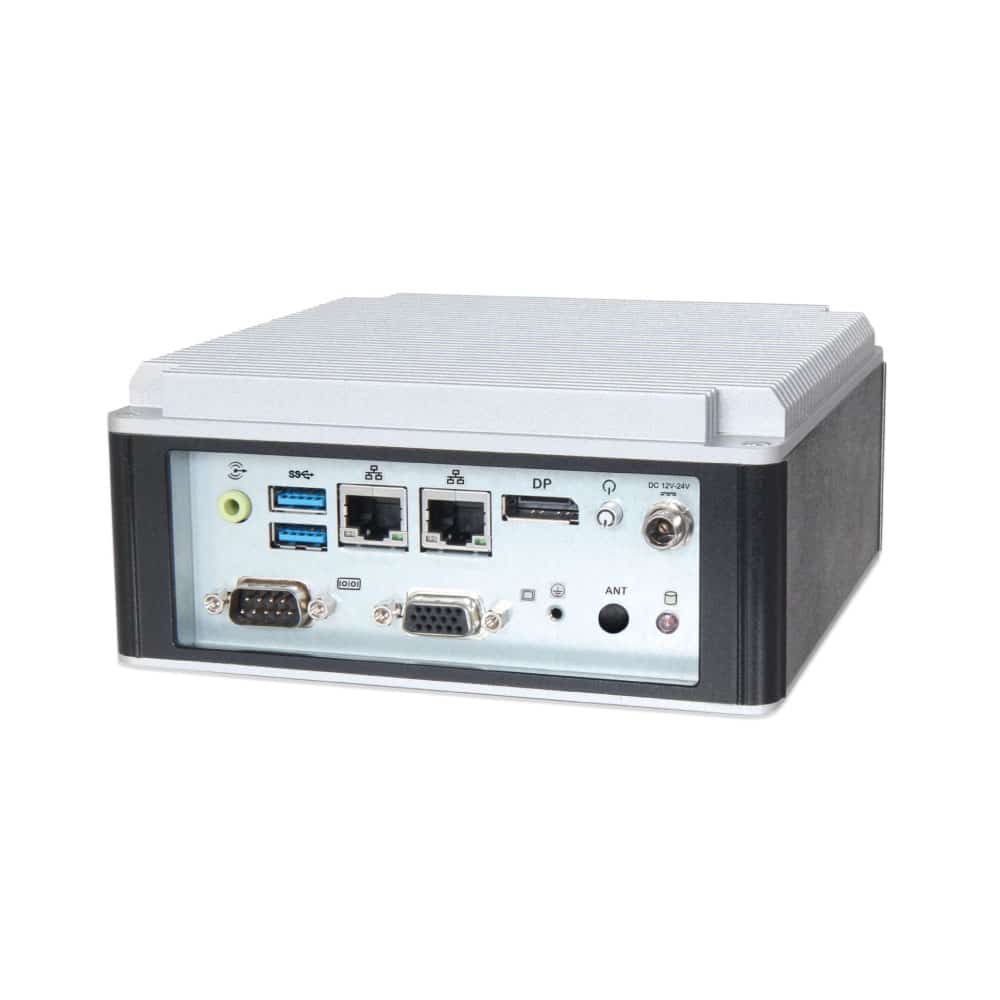

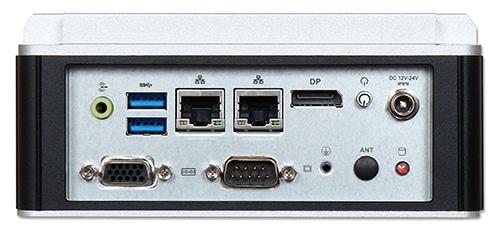

External I/O
Serial 1x RS-232/422/485
USB 2x USB3.0
Display VGA, DP
Ethernet Intel® I210IT x 2
PS/2 N/A
Audio Line-out
D I/O N/A
Expansion 1x M.2 (Type E) 1x Mini-PCIe socket
PWR
System DC 12V ~ 24V
Environment
OP Temp. -20°C ~ 60°C
Storage Temp. -40°C ~ 80°C
Humidity 95%@40°C, non-condensing
Vibratoin 5Grms/10-500Hz
Shock 50G, 11 msec
Mechanical
Dimension(WxDxH) 150 x 150 x 66 mm
Weight 2 Kg

Ordering Guide

Ordering Guide
AS5-3512 (R).ATO. WEBS-21D0. NANO-ITXsystem.
