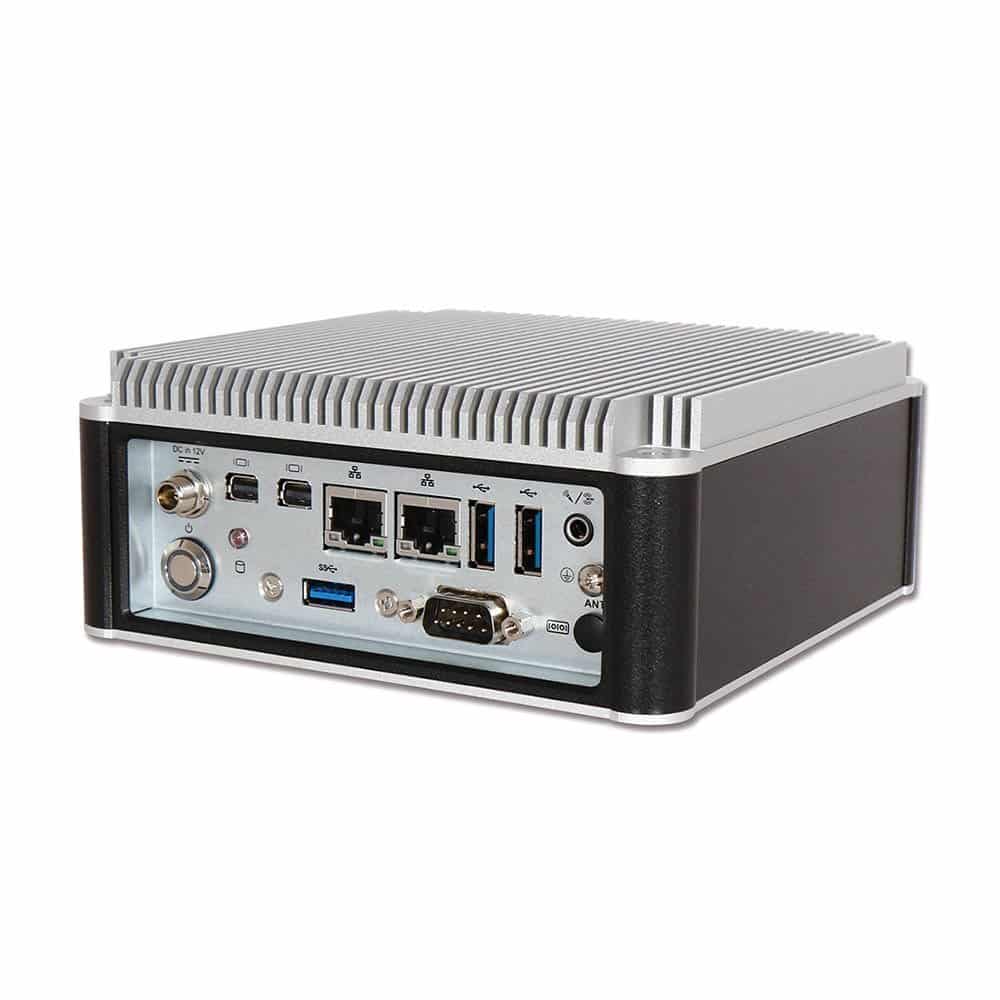

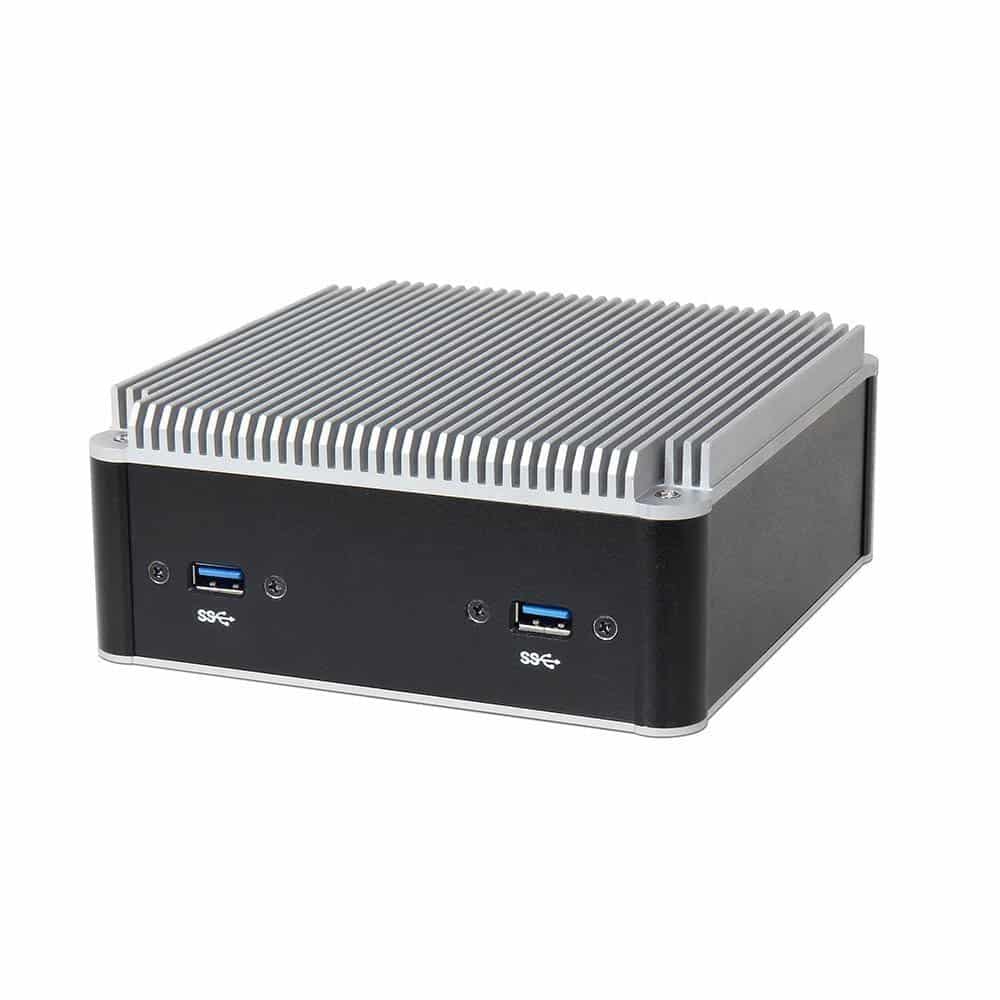

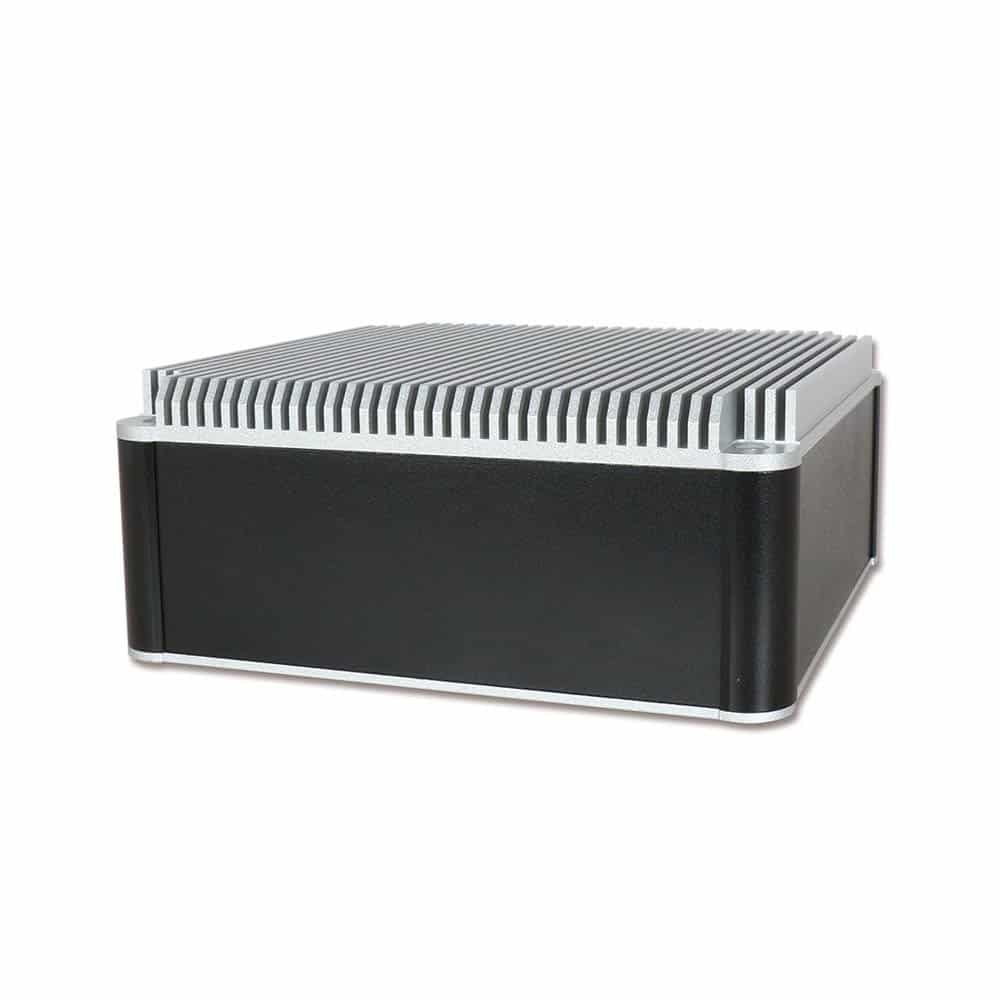

WEBS-21G0

Embedded Compact Fan-less System with Intel® Whiskey Lake-U Core™ i Soc based NANO-ITX Board

Features

  • Supports Intel® Whiskey Lake-U series processor
  • 1x DDR4 2400 non-ECC SO-DIMM, Up to 32GB
  • 1x M.2 key M 2280 for storage
  • Supports Dual mini DP ports
  • 1x Antenna hole for WiFi module
  • IP 40 Rating

Video

Play Video

Description

The WEBS-21G0 builds on Intel® Whiskey Lake-U Core™ i SoC and takes advantages of Intel® Core™ mobile technologies that can support superior processing power and capability. Support two Gigabit Ethernet ports, two mini DP ports and M.2 2280 key M for storage. The WEBS-21G0 is an ideal platform which with high performance for fan-less applications in harsh environment, such as POS, kiosk, digital signage, transportation and automation.

Specification

Model WEBS-21G0
M/B NANO-6051
Form Factor NANO-ITX
System
CPU Intel® 8th Generation Whiskey lake-U series Processor Core i5/i3 processor (15W TDP) Intel
BIOS AMI UEFI
Memory DDR4 SO-Dimms/Up to 32GB
Graphic Controller Intel® UHD Graphics 620/610
Super I/O EC
Storage 1x M.2 Key M 2280 for storage

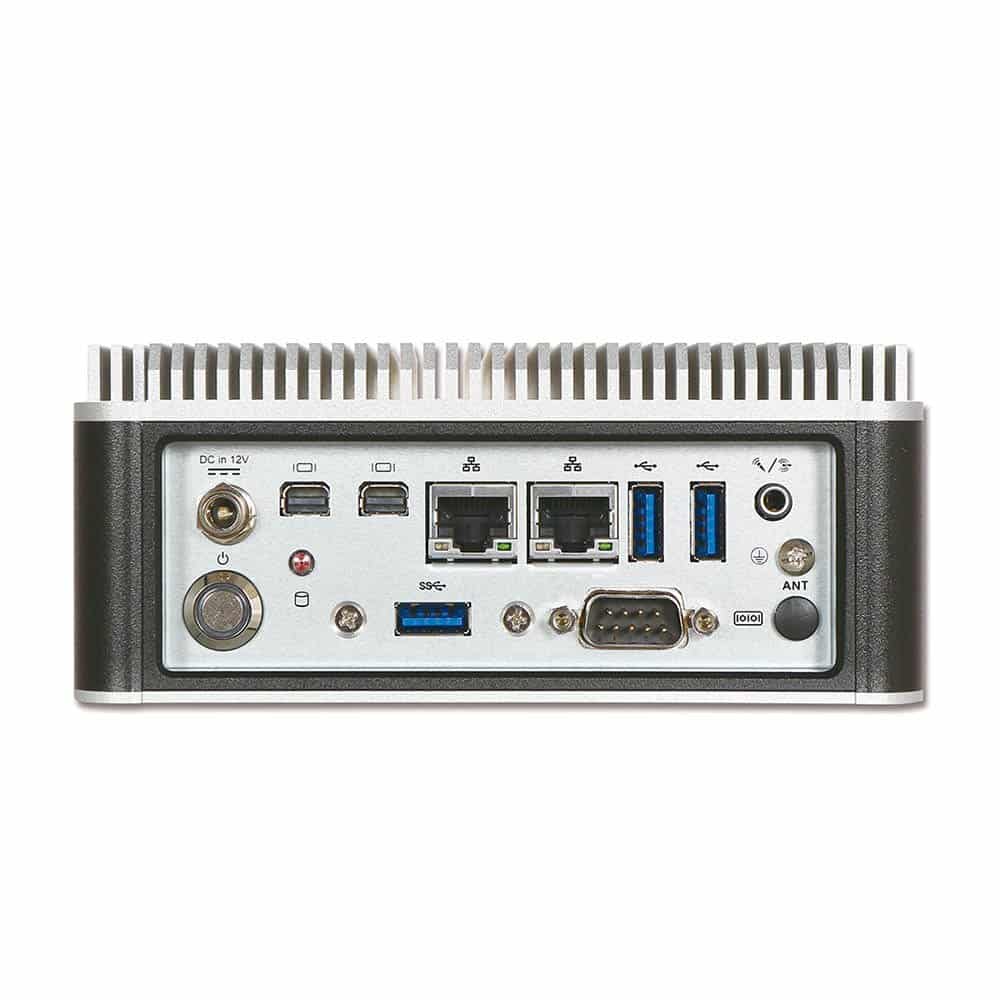

External I/O
Serial 1x RS-232/422/485 (BIOS Configurable)
USB 3x USB 3.0 (Rear I/O)
Display 2x mini DP
Ethernet Intel® I219LM + I210AT
PS/2 N/A
Audio Combo Jack Line-out, Mic-in
D I/O N/A
Expansion 1x M.2 Key E 2230 for wireless module
PWR
System DC 12V
Environment
OP Temp. 0°C ~ 55°C
Storage Temp. -40°C ~ 85°C
Humidity 95%@40°C, non-condensing
Vibratoin 3Grms/10-500Hz IEC 60068-2-6
Shock 50G, 11 msec IEC 60068-2-27
Mechanical
Dimension(WxDxH) 150 x 150 x 62.6 mm
Weight 2 Kg

Ordering Guide

AS5-3587 (R).ATO.WEBS-21G0.NANO-ITX System.
