WEBS-21I0

Embedded Compact Fan-less System with Intel® Atom® x6000E Series based NANO-ITX Board

Features

  • Powered by Intel® Atom® Elkhart Lake Dual/Quad-core™ x6000 Series SoC
  • Support 1x 2.5” SSD, 1x mSATA,1x Micro SD
  • Triple Display by VGA, DP,HDMI®
  • 1x M.2 and 1x Full-size Mini-PCIe socket (Choose either mSATA or mini-PCIe by BIOS)

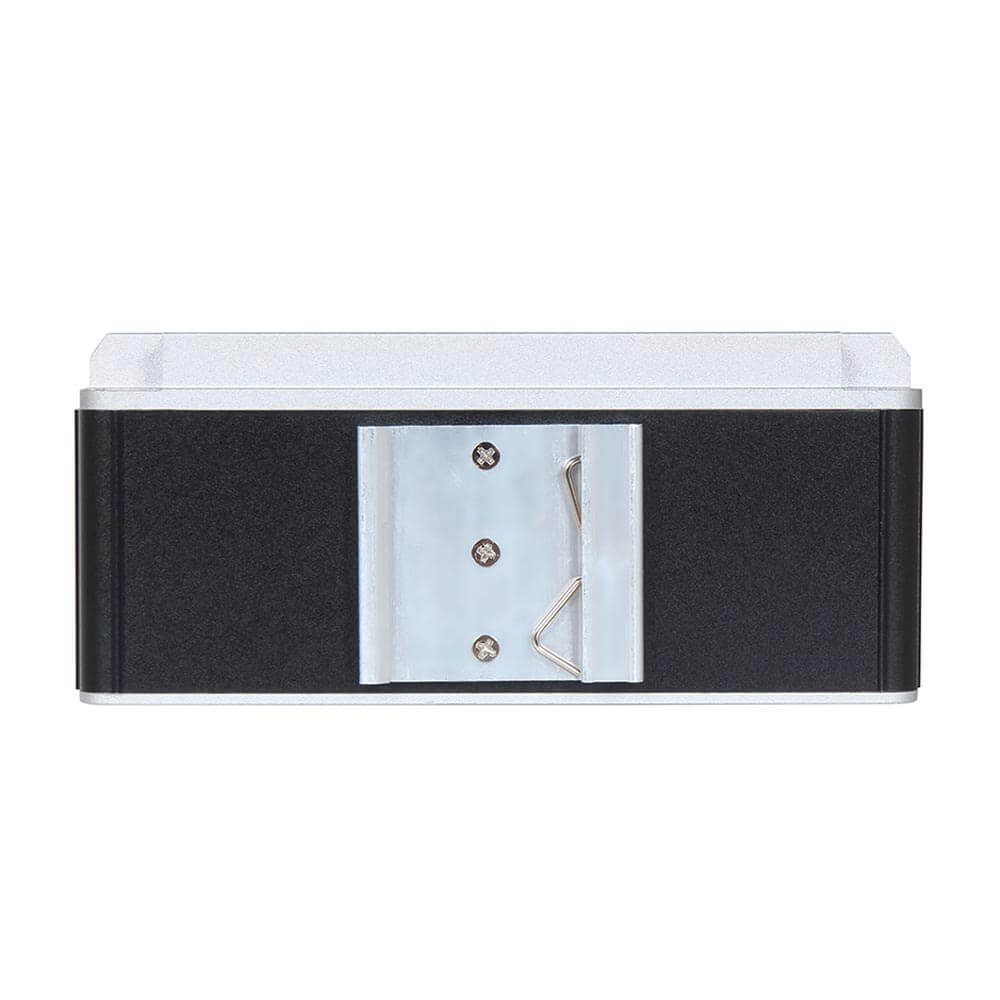

  • Support Wall mount and DIN Rail mount
  • Wide Operating Temperature support (-20~60°C) with Fan-less design
  • DC 12V power input

The WEBS-21I0 takes advantage of Intel® Atom® x6000E series processor technologies, especially its vastly superior Dual/Quad-Core™ processing power and capability. The low power,cost-effective processor with high perfromanceis of great use to build up a compact system,WEBS-21I0, which supports wide operating temperature from -20°C to 60°C for fan-less applications in harsh environment,such as Industrial Automation, Medical, Networking, Panel PC, Kiosk and Digital Signage.

Specification

Specifications
Model WEBS-21I0
M/B NANO-6063
Form Factor NANO-ITX
System
CPU Intel Atom® Dual/Quad-core x6000E family SoC (up to 12W)
BIOS AMI UEFI BIOS
Memory DDR4 3200 MT/s Non-ECC SO-DIMM up to 32GB
Graphic Controller Intel® Gen 11 Graphics – Supports Real-time performance with Intel® Time Coordinated Computing (TCC) and Time Sensitive Networking (TSN)
Storage 1x SATA III port
1x mSATA socket (Choose either mSATA or mini-PCIe by BIOS)
1x Micro-SD socket

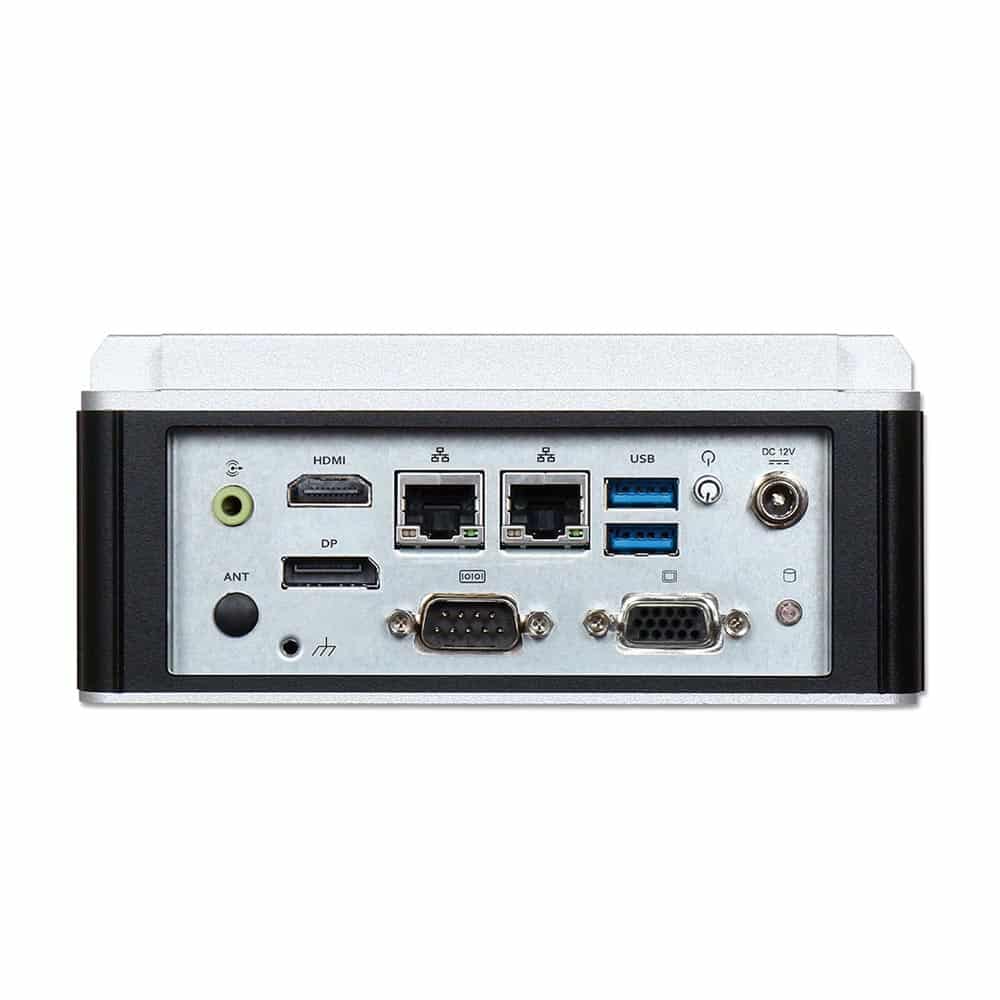

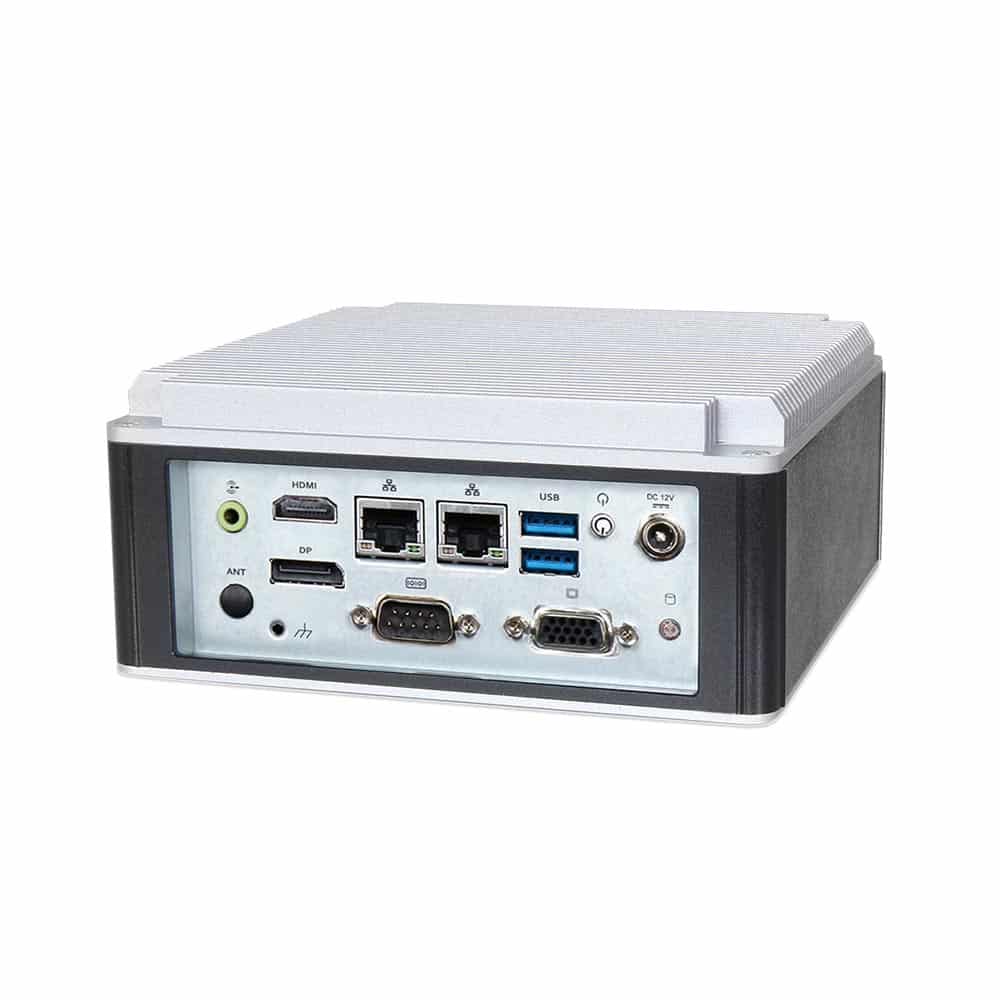

External I/O
Serial 1x RS-232/422/485 on board connector (selected by BIOS)
USB 2x USB 3.2 Gen 2 ports (10Gbps)
Display 1x VGA, 1x DP,1x HDMI®
Ethernet Intel® I210 GbE controller and MaxLinear GPY215 GbE PHY
Dual RJ45 connectors on rear I/O with two LED indicators
Audio Audio jack on rear I/O with Line-out and on board pin header with Line-in, Line-out, and Mic-in
Expansion 1x M.2 Type E socket
1x full size mini-PCIe socket (Choose either mSATA or mini-PCIe by BIOS)
2x USB 3.2 Gen 2 ports on board with header (10Gbps)
PWR
System DC 12V
Environment
OP Temp. -20°C~60°C
Storage Temp. -40°C~85°C
Humidity 40°C, 95%RH, non-condensing
Vibratoin 5Grms/10~500Hz, IEC 60068-2-6
Shock 50G, 11msec, IEC 60068-2-27
Mechanical
Dimension(WxDxH) 150 x 150 x 66mm
Weight 1.4 Kg
