WEBS-21J0-ASL

Embedded Rugged Fan-less System with Intel Atom® X7000RE Series SoC based NANO-ITX Board

Features

  • Support low power Intel Atom® X7000RE Series SoC
  • Up to 16GB DDR4 3200MT/s non-ECC SO-DIMM
  • Support one DP and one HDMI® display
  • Support one M.2 E Key, One M.2 B Key socket
  • SupportoneRS-232/422/485port ( selectable via BIOS)
  • One Antenna hole for WiFi module to usage
  • Support a wide -20°C to 60°C industrial temperature range

Description

The WEBS-21J0 takes advantage of Intel Atom® X7000RE /Intel®  processors technologies that can support one DDR4 memory and one SATA Ports for storage. Support two Gigabit Ethernet ports , One M.2 E Key, One  M.2  B Key socket.
The WEBS-21J0 is an ideal platform for IoT applications, such as retail, digital signage.

Specification

System
System
M/B NANO-6064-ASL
CPU Intel Atom® X7000RE Series Processor ( Up to 12W)
BIOS AMI uEFI BIOS
Memory
  • 1x non-ECC DDR4 3200MT/s SO-DIMM up to 16GB
  • Support In-Band ECC
Storage
  • 1x SATAIII ports
  • 1x M.2 B key 2280 (SATAIII)
Watchdog Timer Programmable watchdog timer
TPM TPM 2.0
H/W Status Monitor System monitor (Voltage and Temperature)
Expansion
  • 1x M.2 E Key 2230
  • 1x M.2 B Key 3052+2280 (Share with M.2 2280 SATAIII socket)

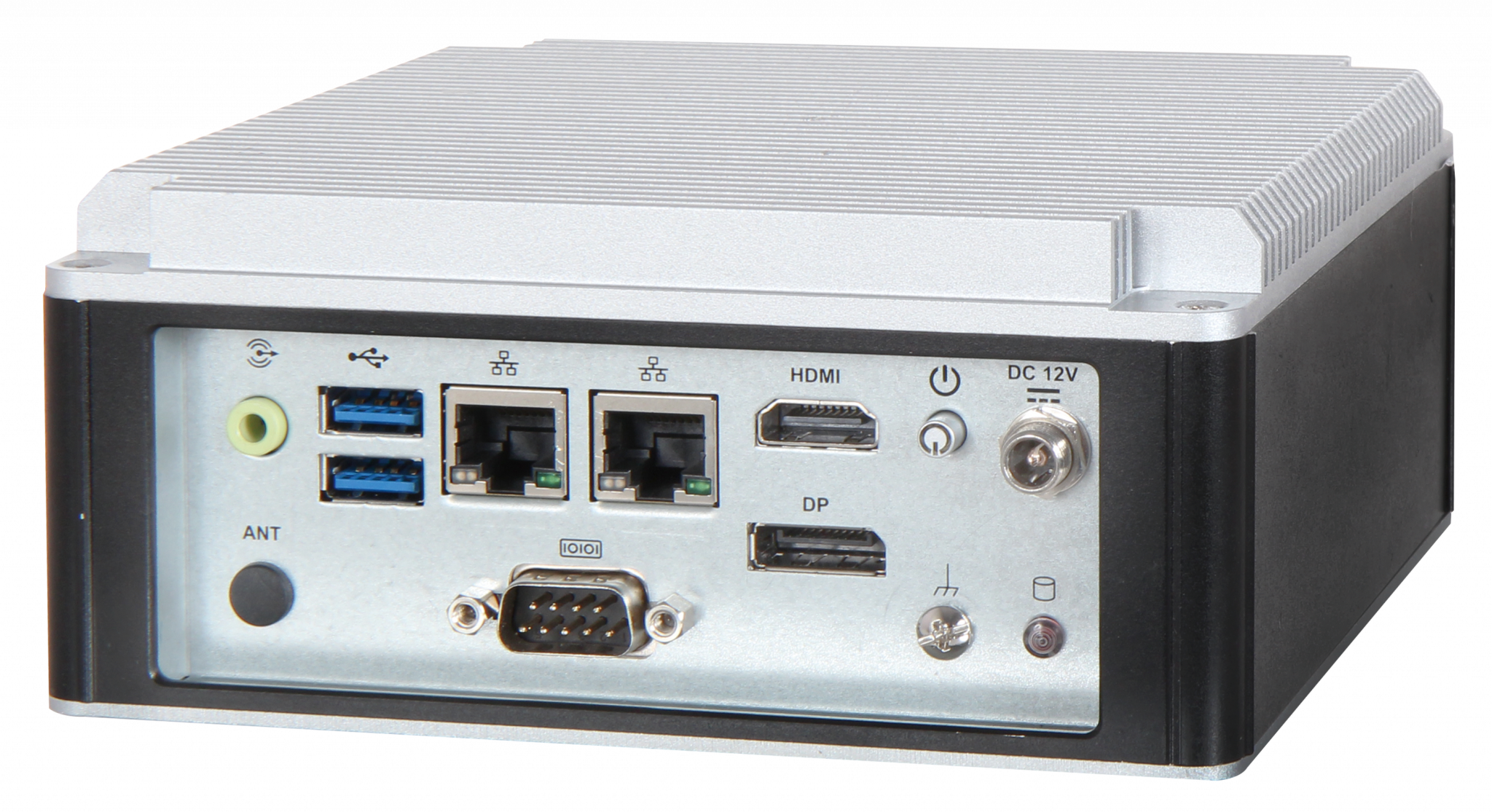

External I/O
External I/O
Serial Port 1x RS- 232/422/485 port (selectable via BIOS)
Display
  • 1x HDMI® ( HDMI® 2.0b,4096×2160@60Hz)
  • 1x DP (DP 1.4,4096X2304@60Hz)
USB 2x USB 3.2 Gen2 (Optional kit: additional 2x USB 3.2 Gen2)
Audio Audio Jack with Line-out with Realtek ALC897 Audio controller
Ethernet
  • 2x Intel® 2.5GbE Ethernet controller (I226-IT)
  • 2x RJ45 connectors
Other TPM 2.0 on board



Power Supply Unit
Power Supply Unit
Power Input DC 12V input



Environmental
Environmental
Operation Temperature -20°C ~ 60°C
Storage Temperature -40°C ~ 85°C
Relative Humidity 40°C, 95%RH non-condensing
Operation Vibration 3Grms/10-500Hz, IEC 60068-2-6
Operation Shock 50G, 11 msec, IEC 60068-2-27



Mechanical
Mechanical
Dimension 150 (W) x 150(D) x 66 (H) mm
Weight 1.4 Kg
Mounting Wall, DIN-rail mounting
