Embedded Rugged Fan-less System with Intel® Celeron® and Core™ i3/i5/i7 based Mini-ITX Board


  • 4th generation Intel® Celeron® & Core™ i3/i5/i7 Desktop processor (Quad-Core CPU supported)
  • Intel® Q87 Chipset
  • Intel® Core™ i High performance fan-less embedded Box PC
  • Dual Long-DIMM DDR3 up to 16GB
  • 2x 2.5” SATA HDD/SSD, 1x SATA DOM
  • 1x Full-size Mini-PCIe socket
  • 2x RS-232/422/485, 4x RS-232, 4x USB3.0, 2x USB2.0, 2x Gigabit Ethernet port
  • Rich I/O is good for versatile applications
  • Triple Display by VGA/HDMI®/DP
  • 2x Antenna hole for WiFi or 3G/GPS module to use
  • Rugged design is good for using in harsh environment
  • OP Vibration: 5Grms/10~500Hz
  • OP Shock: 50G, 11msec


The WEBS-3581 builds on Intel® desktop Q87 chipset and takes advantages of Intel® Core™ i3/i5/i7 desktop processor technologies that can support dual channel DDR3 memory. Support two Gigabit Ethernet ports and one Mini-PCIe socket. The WEBS-3581 is an ideal platform with rich I/O and high resolution for POS, kiosk, digital signage, and surveillance security monitoring applications.


Model WEBS-3581
M/B WADE-8015
Form Factor Mini-ITX
CPU Intel® 4th Generation Desktop Core™ Low Power Processor
Chipset Q87
Memory DDR3/16GB
Graphic Controller HD Graphics 4000 Family
Audio Codec ALC886
Super I/O EC ITE IT8728
+ Fintek F81216
Storage 2x 2.5” SATA HDD/SSD

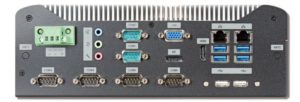

External I/O
Serial 4x RS-232
2x RS-232/422/485
USB 2x USB2.0
4x USB3.0
Display VGA, DP, HDMI®
Ethernet Intel® I217LM+I210AT
PS/2 N/A
Audio Line-in, Line-out, Mic-in
D I/O 8-bit Digital I/O
Expansion 1x Full-size Mini-PCIe
System DC 12V ~ 36V
OP Temp. -20°C ~ 50°C
Storage Temp. -40°C ~ 80°C
Humidity 95%@40°C,
Vibratoin 5Grms/10-500Hz
Shock 50G, 11 msec
Dimension(WxDxH) 253 x 191 x 85 mm
Weight 4.6 Kg

Ordering Guide

Ordering Guide
AS5-3400 (R).ATO.WEBS-3581.Mini-ITX System.
AS5-3437 (R).ATO.WEBS-3581-TBC.WADE-8015. Mini-ITX System.


(Documents & Downloads)

  Catalog   WEBS-3581 | Catalog    March 30, 2021
1.51 MB 2448 Downloads
      BIOS   BIOS_WADE-8015(WEBS-3581)_R100W6.zip | BIOS R1.00.W6   February 13, 2015

    Fix USB storage cannot be removed safely in OS if disable SATA Hot-Plug

    7.20 MB 1963 Downloads
        Driver   Driver_WEBS-3581-ME_SW_9.0.0.1209.zip | Driver   February 13, 2015

      Intel ME driver for WinXP 32/64bit

      57.61 MB 1678 Downloads
        Driver   Driver_WEBS-3581-HD Graphic driver WinXP64_Embedded_14.56.64.5449.zip | Driver   February 13, 2015

      Intel HD Graphic driver for WinXP 64bit Embedded

      29.94 MB 1583 Downloads
        Driver   Driver_WEBS-3581-Ethernet_PROEmbSw11_11.5.exe | Driver 11.5   February 13, 2015

      Intel Ethernet drivers for WinXP Embedded

      4.58 MB 782 Downloads
        Driver   Driver_WEBS-3581-WDM_R273.zip | Driver R273   February 13, 2015

      Realtek HD Audio driver for WinXP 32/64bit

      30.60 MB 1652 Downloads
        Driver   Driver_WEBS-3581-HD Graphic driver WinXP32_Embedded_14.56.0.5449.zip | Driver   February 13, 2015

      Intel HD Graphic driver for WinXP 32bit Embedded

      23.28 MB 1624 Downloads
        Driver   Driver_WEBS-3581-INF_allOS_9.4.0.1027.exe | WEBS-3581   February 13, 2015

      Chipset driver for WinXP/Win7/Win8 32/64bit

      5.10 MB 900 Downloads
          User’s Manual   Manual_WEBS-3581_V1 0.pdf | Manual v1.0   April 24, 2015

        Manual of WEBS-3581

        1.82 MB 1307 Downloads
            Certificate   Certificate_WEBS-3581_FCC.pdf | Certificate    April 24, 2015

          WEBS-3581 FCC Certificate

          336.07 KB 1168 Downloads
            Certificate   Certificate_WEBS-3581_CE.pdf | Certificate    April 24, 2015

          WEBS-3581 CE Certificate

          379.54 KB 1229 Downloads
              Drawing   Drawing_WEBS-3581.pdf | Drawing    April 24, 2015

            Drawing of WEBS-3581

            274.55 KB 1198 Downloads
