WEBS-3583

Embedded Rugged Fan-less System with Intel^® Celeron and Core™ i3/i5/i7 based Mini- ITX Board

Features

4^th generation Intel^® Celeron^® & Core™ i3/i5/i7 Desktop processor (Quad-Core CPU supported)
Intel^® Q87 Chipset
Intel^® Core™ i high performance fan-less embedded Box PC
Dual Long-DIMM DDR3 up to 16GB
2x 2.5” SATA HDD/SSD, 1x SATA DOM
1x Full-size Mini-PCIe socket
2x PCIe x4 slot (PCIe x1 signal) or 1 x PCIe x4 slot (PCIe x1 signal) + 1 x PCI slot, innovative PCI/PCIe expansion module is easy for add-on cards replacement
2x RS-232/422/485, 4x RS-232, 4x USB3.0, 4x USB2.0, 2x Gigabit Ethernet port
Triple Display by VGA/HDMI^®/DP
2x Antenna hole for WiFi or 3G/GPS module to use
Rugged design is good for using in harsh environment
OP Vibration: 5Grms/10~500Hz
OP Shock: 50G, 11msec

Description

The WEBS-3583 builds on Intel^® desktop Q87 chipset and takes advantages of Intel^® Core™ i3/i5/i7 desktop processor technologies that can support dual channel DDR3 memory. Support two Gigabit Ethernet ports, two PCIe x4 expansion slots (or one PCIe x4 slot + one PCI expansion slot) and one Mini-PCIe socket. The WEBS-3583 is an ideal platform with rich I/O and high resolution for POS, kiosk, digital signage, factory automation and many industrial uses applications.

Specification

Model	WEBS-3583
M/B	WADE-8015
Form Factor	Mini-ITX
System
CPU	Intel^® 4th Generation Desktop Core™ Low Power Processor
Chipset	Q87
BIOS	Phoenix UEFI
Memory	DDR3/16GB
Graphic Controller	HD Graphics 4000 Family
Audio Codec	ALC886
Super I/O	EC ITE IT8728 + Fintek F81216
Storage	2x 2.5” SATA HDD/SSD 1x SATA DOM

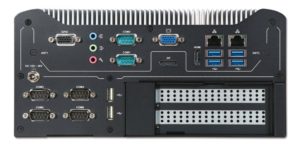

External I/O
Serial	4x RS-232 2x RS-232/422/485
USB	4x USB2.0 4x USB3.0
Display	VGA, DP, HDMI^®
Ethernet	Intel^® I217LM+I210AT
PS/2	N/A
Audio	Line-in, Line-out, Mic-in
D I/O	8-bit Digital I/O
Expansion	1x Full-size Mini-PCIe 2x PCIe (or 1x PCIe + 1x PCI)
PWR
System	DC 12V ~ 36V
Environment
OP Temp.	-20°C ~ 50°C
Storage Temp.	-40°C ~ 80°C
Humidity	95%@40°C, non-condensing
Vibratoin	5Grms/10-500Hz
Shock	50G, 11 msec
Mechanical
Dimension(WxDxH)	253 x 193 x 120 mm
Weight	7 Kg

Ordering Guide

Ordering Guide
AS5-3364	(R).ATO.WEBS-3583.Mini-ITX System
AS5-3446	(R).ATO.WEBS-3583-E.Mini-ITX System. (Expansion Enhancement)
