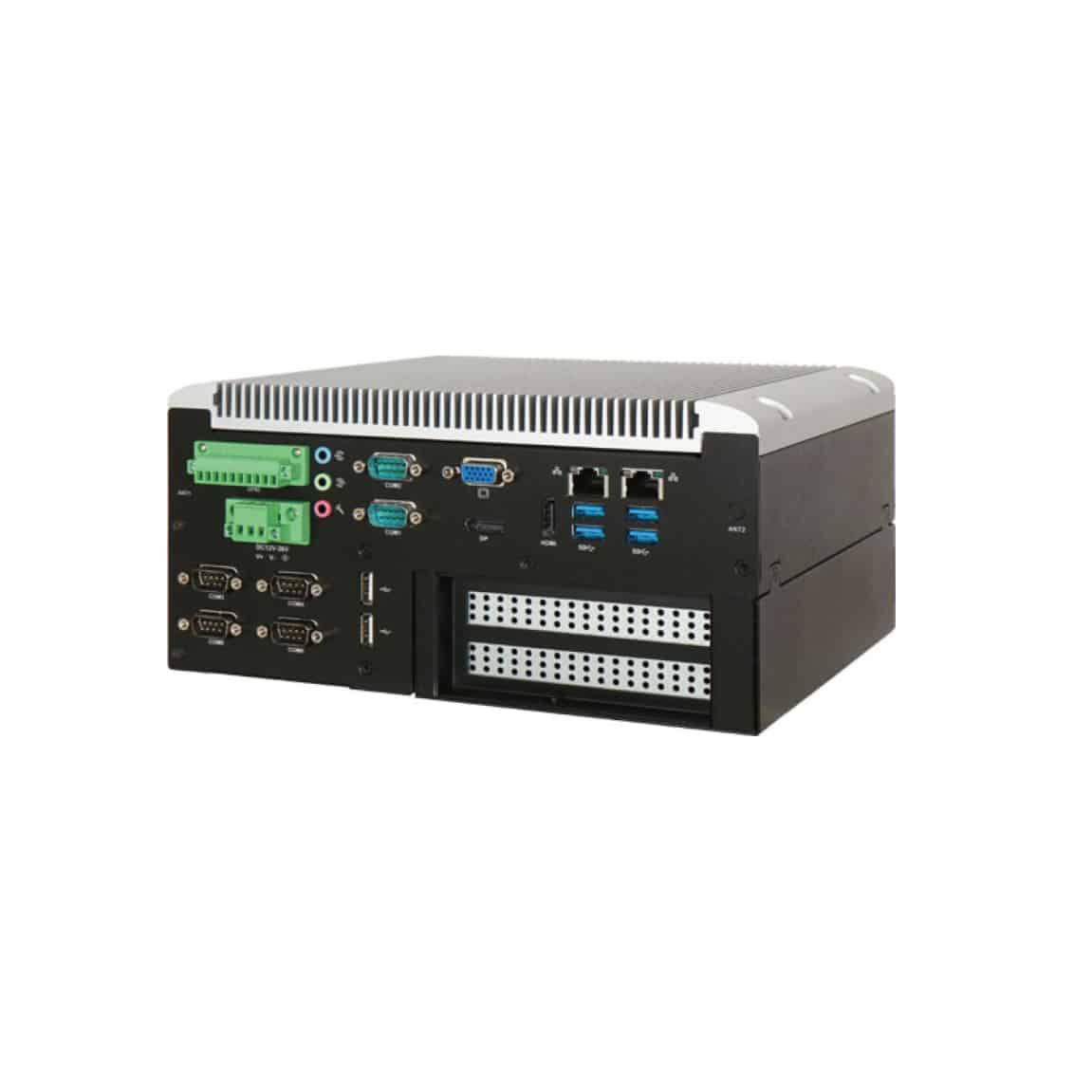

The WEBS-35C3 builds on Intel®desktop Q170 chipset and takes advantages of Intel®Core™ i3/i5/i7 desktop processor technologies that can support dual DDR4 memory. Support two Gigabit Ethernet ports, different add-on card expansion options, one M.2 socket and one Mini-PCIe socket. The WEBS-35C3 is an ideal platform with rich I/ O and high resolution for POS, kiosk, digital signage, and surveillance security monitoring applications.
| Model | WEBS-35C3 |
| M/B | WADE-8017 |
| Form Factor | Mini-ITX |
| System | |
| CPU | Intel®6th Gerenation Desktop Core™ Processor |
| Chipset | Q170 |
| BIOS | AMI UEFI |
| Memory | DDR4/32GB |
| Graphic Controller | Intel®Gen 9 Graphics |
| Audio Codec | ALC892 |
| Super I/O | EC ITE IT8528 + Fintek F81216 |
| Storage | 2x 2.5” SATA HDD/SSD 1x mSATA |
| External I/O | |
| Serial | 4x RS-232 2x RS-232/422/485 |
| USB | 2x USB2.0 4x USB3.0 |
| Display | VGA, DP, HDMI® |
| Ethernet | Intel®I219LM + I210AT |
| PS/2 | N/A |
| Audio | Line-in, Line-out, Mic-in |
| D I/O | 8-bit Digital I/O |
| Expansion | 1x Full-size Mini-PCIe 1x M.2 (Type E) Multi PCIe+PCI options |
| PWR | |
| System | DC 12V ~ 36V |
| Environment | |
| OP Temp. | -20°C ~ 50°C |
| Storage Temp. | -40°C ~ 80°C |
| Humidity | 95%@40°C, non-condensing |
| Vibratoin | 5Grms/10-500Hz |
| Shock | 50G, 11 msec |
| Mechanical | |
| Dimension(WxDxH) | 253 x 201 x 123 mm |
| Weight | 7 Kg |
| AS5-3459 | (R).ATO.WEBS-35C3.(x4 type).Embedded rugged fan-less system with Intel®Skylake-S Core i3/i5/i7 based MINI-ITX system. |
| AS5-3463 | (R).ATO.WEBS-35C3.(x16 type).Embedded rugged fan-less system with Intel®Skylake-S Core i3/i5/i7 based MINI-ITX system |
