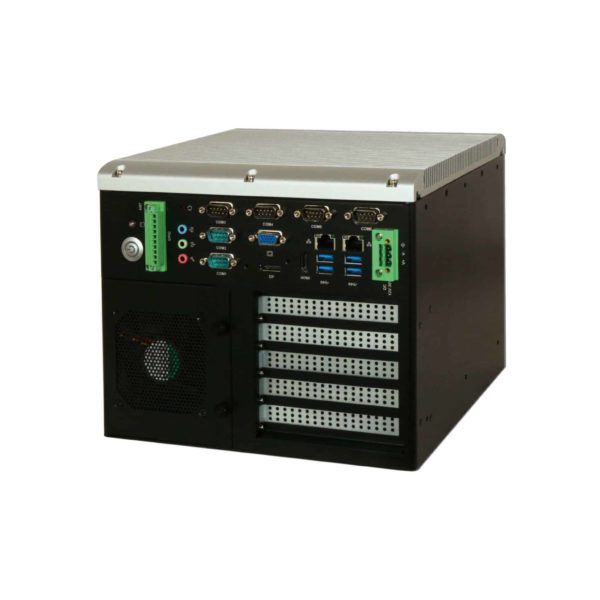

WEBS-35C6

Embedded Rugged Fan-less System with Intel® 6th Skylake-S Core™ i3/i5/i7 based Mini-ITX Board

Features

  • Intel® Core™ i High performance Fan-less Embedded Box PC
  • 6th generation Intel® Skylake-S Core™ i3/i5/i7 Desktop processor (Quad-Core CPU supported)
  • Dual UB-DIMM DDR4 up to 32GB
  • 2x 2.5” SATA HDD/SSD, 1x mSATA
  • Rich I/O is good for versatile applications
  • 1x M.2 socket, 1x Full-size Mini-PCIe socket
  • Different add-on card expansion options
  • Innovative PCI/PCIe expansion module is easy for add-on cards installation and replacement
  • Rugged design is good for using in harsh environment

The WEBS-35C6 builds on Intel® desktop Q170 chipset and takes advantages of Intel® Core™ i3/i5/i7 desktop processor technologies that can support dual DDR4 memory. Support two Gigabit Ethernet ports, different add-on card expansion options, one M.2 socket and one Mini-PCIe socket. The WEBS-35C6 is an ideal platform with rich I/O and high resolution for POS, kiosk, digital signage, and surveillance security monitoring applications.

Specification

Model WEBS-35C6
M/B WADE-8017
Form Factor Mini-ITX
System
CPU Intel® 6th Gerenation Desktop Core™ Processor
Chipset Q170
BIOS AMI UEFI
Memory DDR4/32GB
Graphic Controller Intel® Gen 9 Graphics
Audio Codec ALC892
Super I/O EC ITE IT8528
+ Fintek F81216
Storage 2x 2.5″ SATA HDD/SSD
1x mSATA
External I/O
Serial 4x RS-232
2x RS-232/422/485
USB 4x USB3.0
Display VGA, DP, HDMI®
Ethernet Intel® I219LM+I210AT
PS/2 N/A
Audio Line-out, Line-in, Mic-in
D I/O 8-bit Digital I/O
Expansion 1x Full-size Mini-PCIe 1x M.2(Type E) Multi PCIe option
PWR
System DC 12V ~ 36V
Environment
OP Temp. -20°C ~ 50°C
Storage Temp. -40°C ~ 80°C
Humidity 95%@40°C,
non-condensing
Vibratoin 5Grms/10-500Hz
Shock 50G, 11 msec
Mechanical
Dimension(WxDxH) 253 x 255 x 210 mm
Weight 9 Kg

Ordering Guide

Ordering Guide
AS5-3522 (R).ATO. WEBS-35C6. Embedded rugged fan-less system with Intel Skylake-S Core i3/i5/i7 based MINI-ITX system.
