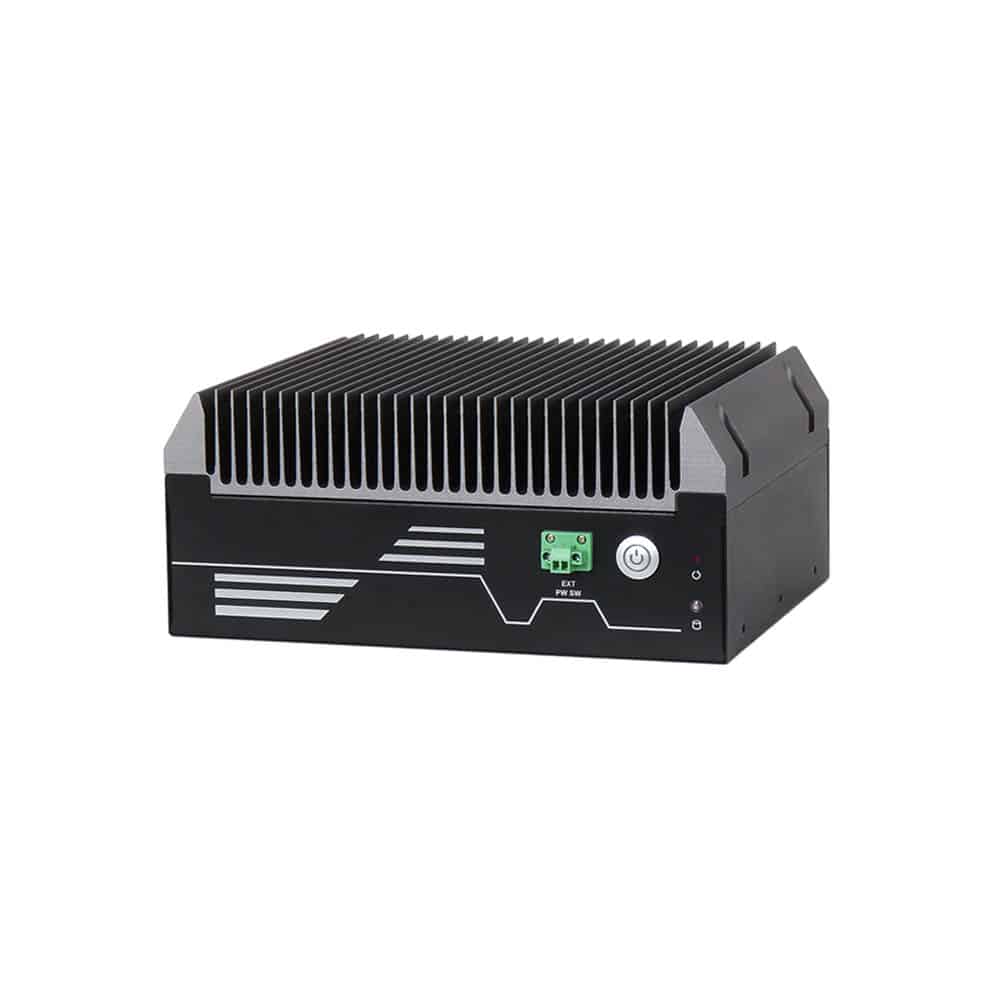

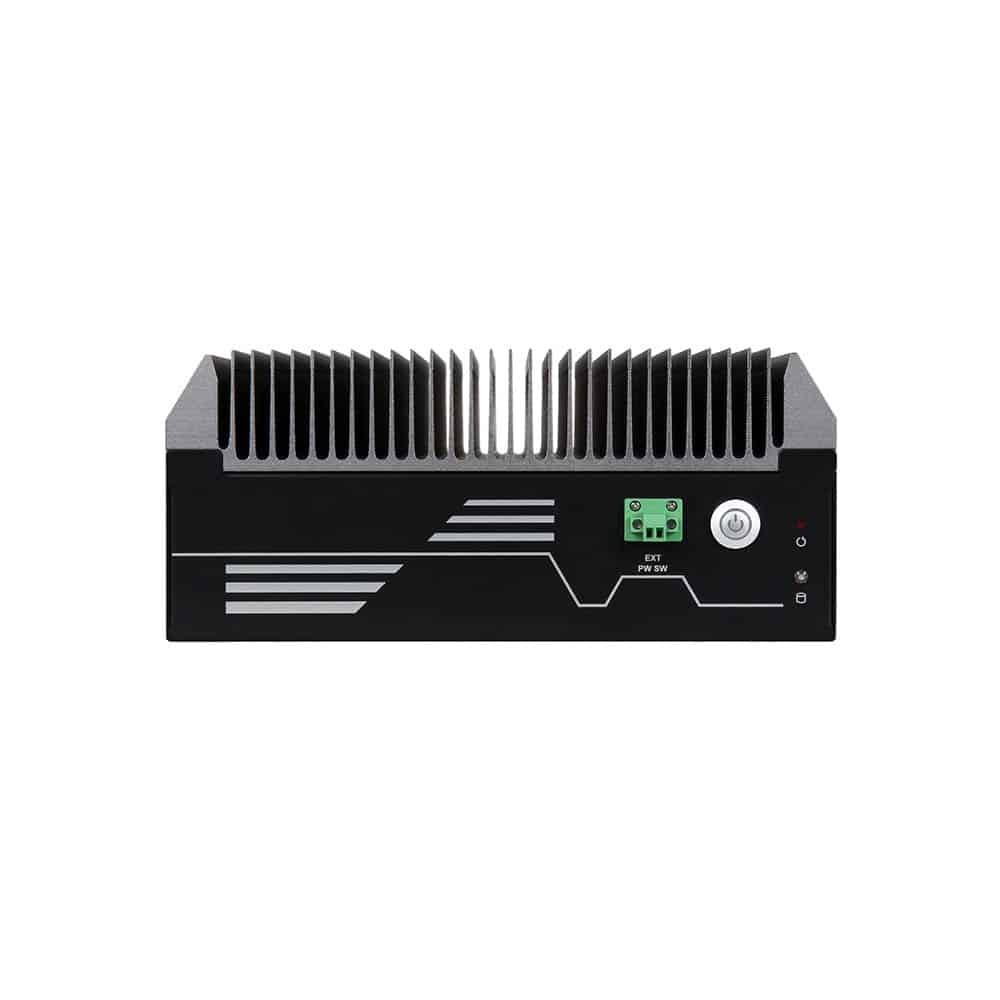

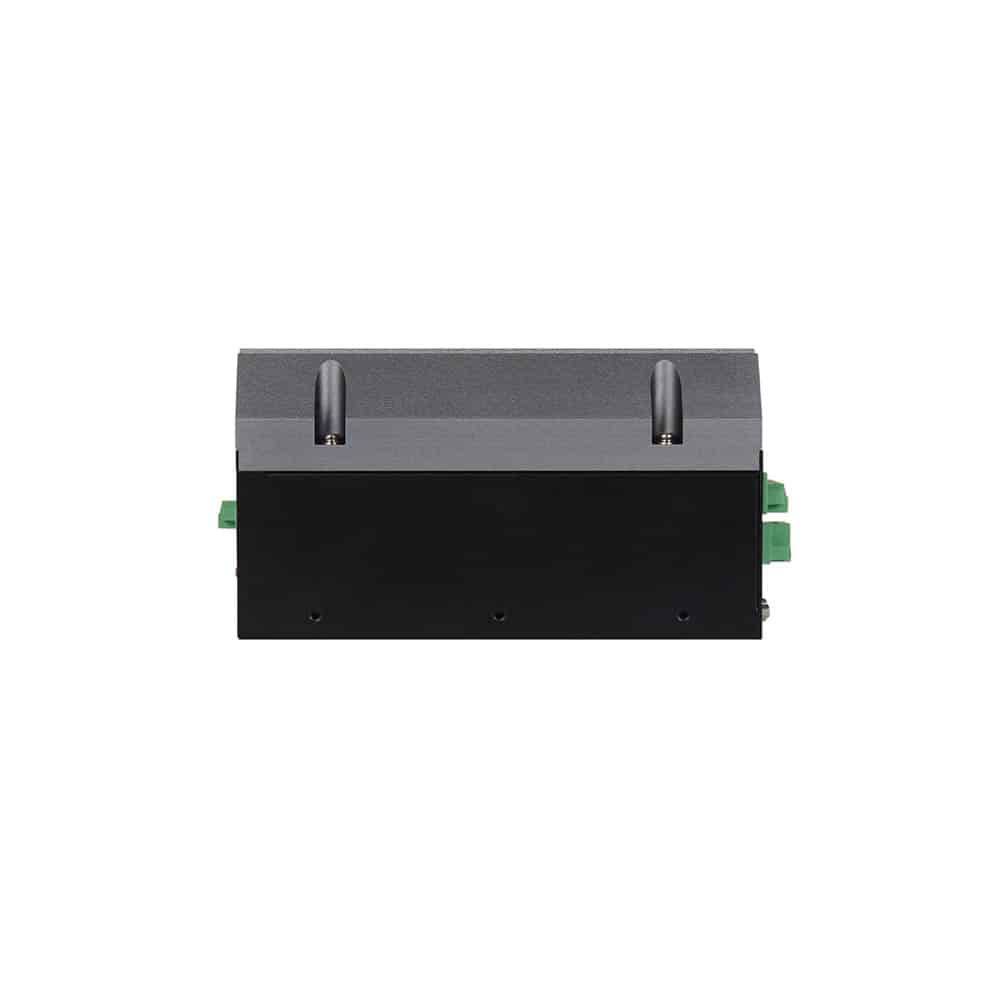

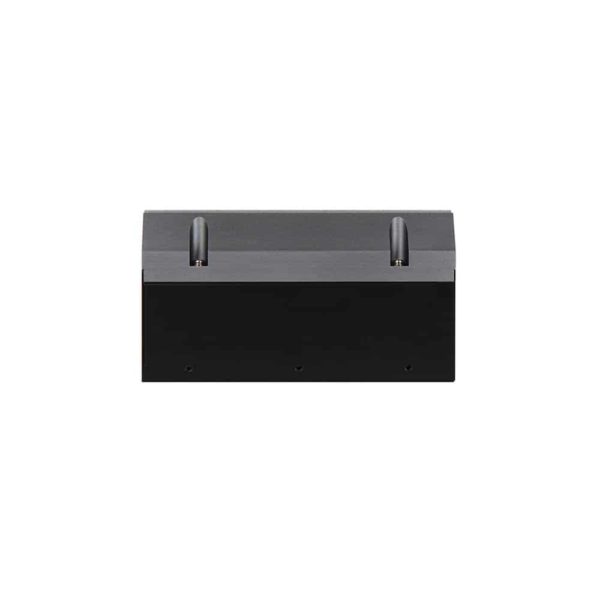

WEBS-45H1

Embedded Rugged Fan-less System with 10th Generation Intel® Core™ i3/i5/i7/i9 based Mini-ITX Board

Features

  • Support 10th Generation Intel® Core™ i3/i5/i7/i9 processors
  • Support 64GB DDR4 2400/2666 Non-ECC SDRAM
  • Support triple displays including HDMI®, DP and VGA
  • Support One M.2 E Key, One M.2 M Key and one M.2 B Key socket
  • Support 5 x COM ports ( 2 x RS232/422/485)
  • 2x Antenna hole for WiFi or 4G/GPS module to use
  • Onboard TPM 2.0

Description

The WEBS-45H1 builds on Intel® desktop Q470E chipset and takes advantages of 10th Generation Intel® Core™ i3/i5/i7/i9 processors technologies that can support dual DDR4 memory and 2x 2.5” SSD slots for storage. Support two Gigabit Ethernet ports , One M.2 E Key, One M.2 M Key and one M.2 B Key socket. The WEBS-45H1 is an ideal platform with rich I/O and high resolution for POS, kiosk, digital signage, and factory automation applications.

Specification

Specifications
System
M/B WADE-8212
CPU 10th Gen Intel® Core™ Processors CPU in LGA1200 package (35W TDP)
BIOS AMI UEFI BIOS
Memory Up to 64GB DDR4 2400/2666 Non-ECC SDRAM on two SO-DIMM sockets
Storage 2x 2.5” SSD slots
Watchdog Timer Programmable by embedded controller
TPM TPM 2.0
H/W Status Monitor System monitor (Voltage, Temperature)
Expansion – 1x M.2 E Key 2230 with PCIe x1, CNVI and USB2.0 for Wireless
– 1x M.2 M Key 2242/2260/2280 with PCIe x4 and SATA3 for SSD
– 1x M.2 B Key 3042/3052 with USB 3.0 Signal
– 1x SIM Card socket

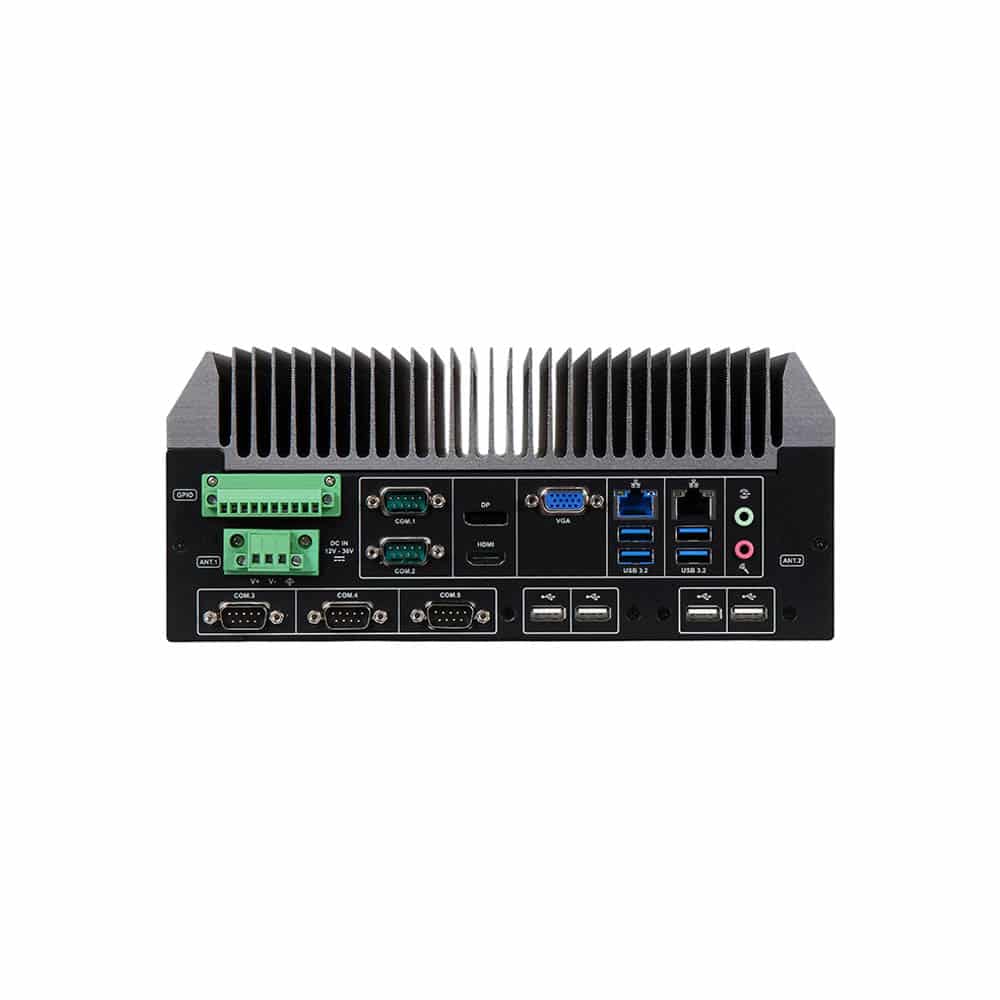

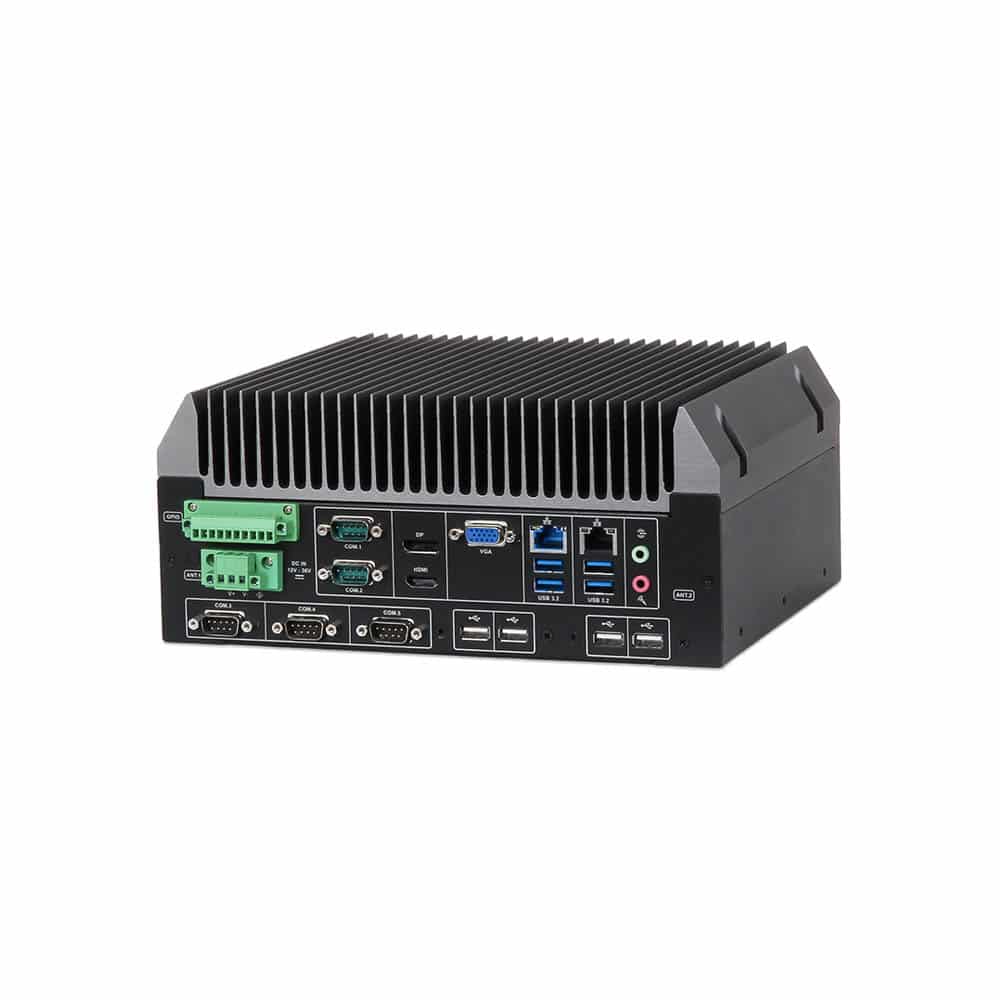

External I/O
Serial Port 5x COM ports( 2x RS-232/422/485)
Display – 1x HDMI® 2.0a , resolution up to 4096×2160 @60Hz
– 1x DisplayPort 1.2 , resolution up to 4096×2160 @60Hz
– 1x VGA , resolution up to 1920×1200 @60Hz
USB – 4x USB 3.2 Gen 1
– 4x USB 2.0
Audio Audio Jack with Line-out / Mic-in with Realtek ALC887 Audio controller
Ethernet – Intel® I219LM and Intel® I225LM Ethernet controller
– 2x RJ45 connectors
GPIO 1x Programmable 8-bit Digital I/O
Other – 2x Antenna hole for WiFi or 4G/GPS module
– 1x EXT Power Switch
Power Supply Unit
Power Input DC 12V ~ 36V with 3-pin Terminal Block Connector
Environmental
Operation Temperature  -20°C ~ 60°C
Storage Temperature  -40°C ~ 80°C
Relative Humidity 40°C, 95%RH non-condensing
Operation Vibration 1Grms/10-500Hz, IEC 60068-2-6
Operation Shock 50G, 11 msec, IEC 60068-2-27
Mechanical
Dimension 253(W) x 201.2(D) x 111.8(H) mm
Weight 5.5 Kg
Mounting Wall mounting

Support

(Documents & Downloads)

  Catalog   Catalog_WEBS-45H1.pdf | Catalog 20220609   June 9, 2022
1.3 MB 2593 Downloads
      BIOS   BIOS_WADE-8212-WS_R1.00.E3.zip | BIOS R1.00.E3   March 25, 2023

    BIOS Update

    7.97 MB 183 Downloads
      BIOS   BIOS_WEBS-45Hx-series_WADE-8212-WS_R1.00.E2.zip | BIOS R1.00.E2   February 14, 2023

    BIOS FW Updated



    7.97 MB 602 Downloads
      BIOS   BIOS_WEBS-45Hx-Series_WADE-8212-WS_R1.00.E1.zip | BIOS R1.00.E1   September 6, 2022

    BIOS FW Updated

    7.95 MB 1313 Downloads
      BIOS   BIOS_WEBS-45Hx-Series_WADE-8212-WS_R1.00.E0.zip | BIOS R1.00.E0   August 12, 2022

    BIOS update



    7.97 MB 1389 Downloads
        Driver   Driver_WEBS-45Hx series_17.8.0.1065.2_PV | Driver 17.8.0.1065.2_PV   August 12, 2022

      SATA Floppy Image ver:17.8.0.1065.2_PV

      4.2 MB 1562 Downloads
        Driver   Driver_WEBS-45Hx-series_2003.14.0.1461.zip | Driver 2003.14.0.1461   August 12, 2022

      Intel® Management Engine Components

      172.2 MB 1312 Downloads
        Driver   Driver_WEBS-45Hx-series_26.20.100.7926.zip | Driver 26.20.100.7926   August 12, 2022

      Intel® Graphics Driver

      359.39 MB 1353 Downloads
        Driver   Driver_WEBS-45Hx-series_I219-(12.19.0.18)-and-I225(1.0.2.14).zip | Driver 12.19.0.18/1.0.2.14   August 12, 2022

      Intel® Ethernet Connection (11) I219-LM & Controller (3) I225-LM

      226.02 MB 1314 Downloads
        Driver   Driver_WEBS-45Hx-series _10.1.18263.8193 | Driver 10.1.18263.8193   August 12, 2022

      Intel® Chipset Device Software

      3.4 MB 1804 Downloads
        Driver   Driver_WEBS-45Hx-series_(4.75)-6.0.8924.1.zip | Driver (4.75) 6.0.8924.1   August 12, 2022

      Realtek Audio

      308.94 MB 239 Downloads
        Driver   Driver_WEBS-45Hx-series_(V17.8.0.1065.2_PV) | Driver 17.8.0.1065   August 12, 2022

      Intel® Rapid Storage Technology

      72.4 MB 1289 Downloads
          User’s Manual   Manual_WEBS-45H1_V1.4.pdf | Manual V1.4   January 31, 2023

        WEBS-45H1 user manual

        1.5 MB 390 Downloads
          User’s Manual   Manual_WEBS-45H1_V1.3.pdf | Manual V1.3   November 18, 2022

        WEBS-45H1 user manual

        3 MB 964 Downloads
          User’s Manual   Manual_WEBS-45H1_V1.2.pdf V1.2   October 25, 2022

        WEBS-45H1 user manual

        2.9 MB 796 Downloads
            Software   Portwell Engineering Toolkit [PET] 4.7.12 | Software 4.7.12   March 26, 2024

          A Universal API for Hardware Access in Both Linux and Windows

          • PET-supported OS: Windows 7, Windows 10, Ubuntu 18.04, and later, and CentOS 7 and later.
          • PET API sample code test application path:
            • Windows PET_API sample code: PET_API, Windows, sample, TESTAP.cpp
            • Linux PET_Utility: PET_API, Linux, x64, release, TESTAP.c

          Supported products list:

          Series Models
          AMDY AMDY-7002
          ANSB ANSB-7A44E
          CEKL CEKL-XXXX
          FUDA3 FUDA3-S1012, FUDA3-S1022, FUDA3-S1212, FUDA3-S1222, FUDA3-S1512, FUDA3-S1522
          KBB KBB-212E
          KUBE KUBE-2110
          Kuber Kuber-2000, Kuber-212
          MEDB MEDB-1002, MEDB-1004, MEDB-51A0, MEDB-5180, MEDB-6060, MEDB-6070
          MEDM MEDM-6180, MEDM-B641
          NANO NANO-5050, NANO-6040, NANO-6050, NANO-6051, NANO-6060, NANO-6062, NANO-6063, NANO-6064, NANO-8044
          PAB PAB-1001
          PCOM PCOM-B217, PCOM-B217J, PCOM-B218VGT, PCOM-B219VG, PCOM-B21A, PCOM-B630VG, PCOM-B632VG, PCOM-B633, PCOM-B634VG, PCOM-B635VG, PCOM-B636VG, PCOM-B637VG, PCOM-B638VG, PCOM-B639VG, PCOM-B641VG, PCOM-B645VGL, PCOM-B651VGL, PCOM-B652, PCOM-B653VGL, PCOM-B654GL, PCOM-B655VGL, PCOM-B656VGL, PCOM-B657VGL, PCOM-B658VGL, PCOM-B659, PCOM-B700G, PCOM-B700G-NS, PCOM-B701GT, PCOM-B702G, PCOM-B702GT, PCOM-B705GT, PCOM-B706, PCOM-B706GT, PCOM-B800-GT, PCOM-B8800, PCOM-B880VG2, PCOM-BA00, PCOM-BA01, PCOM-BA02GL
          PEB PEB-2131, PEB-2131C, PEB-2133, PEB-2737, PEB-2738I, PEB-2739I, PEB-2771, PEB-2772, PEB-2773, PEB-2773VGATM, PEB-2781, PEB-5731, PEB-9782, PEB-99A3, PEB-99A5, PEB-99A7, PEB-99A8
          PF PF-8021
          PGB PGB-5120S
          PICO PICO-6260
          PNS PNS-9730
          PQ7 PQ7-M104, PQ7-M105, PQ7-M106IL, PQ7-M107, PQ7-M108
          PSMC PSMC-C921, PSMC-M1011
          PT PT-D711
          PX1 PX1-C415, PX1-C441
          ROBO ROBO-6911VG2AR, ROBO-6911VG2AR-Q170, ROBO-8110, ROBO-8111VG2AR-Q77, ROBO-8112, ROBO-8113VG2AR, ROBO-8113VG2AR-Q170, ROBO-8114VG2AR, ROBO-8114VG2AR-PCIE1, ROBO-8114VG2AR-Q370, ROBO-8115VG2AR, ROBO-8115VG2AR-Q470E, ROBO-8116G2AR, ROBO-8116G2AR-Q670E, ROBO-8116G2AR-Q670E-R, ROBO-8116G2AR-R, ROBO-8210, ROBO-8779, ROBO-8780, ROBO-9910
          RUBY RUBY-D712, RUBY-D714VG2AR, RUBY-D716, RUBY-D718VG2AR, RUBY-D720, RUBY-D812-Q470E, RUBY-D813-H610E, RUBY-PB6511, RUBY-SQ1703
          SBC SBC-C430
          Software
          WADE WADE-7220-R2314, WADE-8011, WADE-8012, WADE-8013, WADE-8015, WADE-8016, WADE-8017, WADE-8020, WADE-8022, WADE-8046, WADE-8066, WADE-8067, WADE-8068, WADE-8070, WADE-8071, WADE-8072, WADE-8075, WADE-8077, WADE-8078, WADE-8079, WADE-8132, WADE-8170, WADE-8173, WADE-8173-J6412, WADE-8211-Q370, WADE-8212-Q470E, WADE-8213-Q670E, WADE-8321, WADE-PQ7712, WADE-SQ1705
          WEBS WEBS-2190, WEBS-45H1, WEBS-45H3, WEBS-5481, WEBS-5481-S, WEBS-85H1, WEBS-85H2, WEBS-85HX, WEBS-89I0
          11.96 MB 14 Downloads
            Software   Software_WEBS-45Hx_Series_20220426.zip | Software 20220426   December 6, 2022

          GPIO test

          508.9 KB 1151 Downloads
