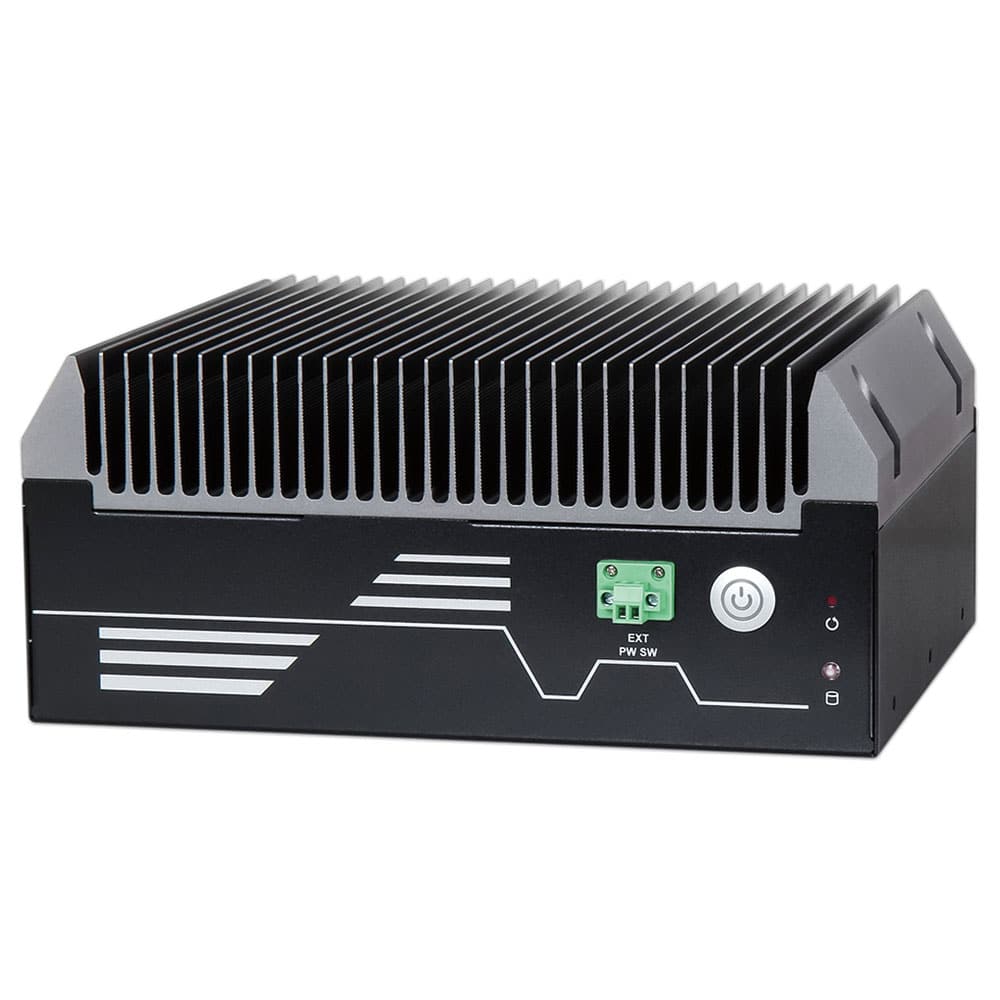

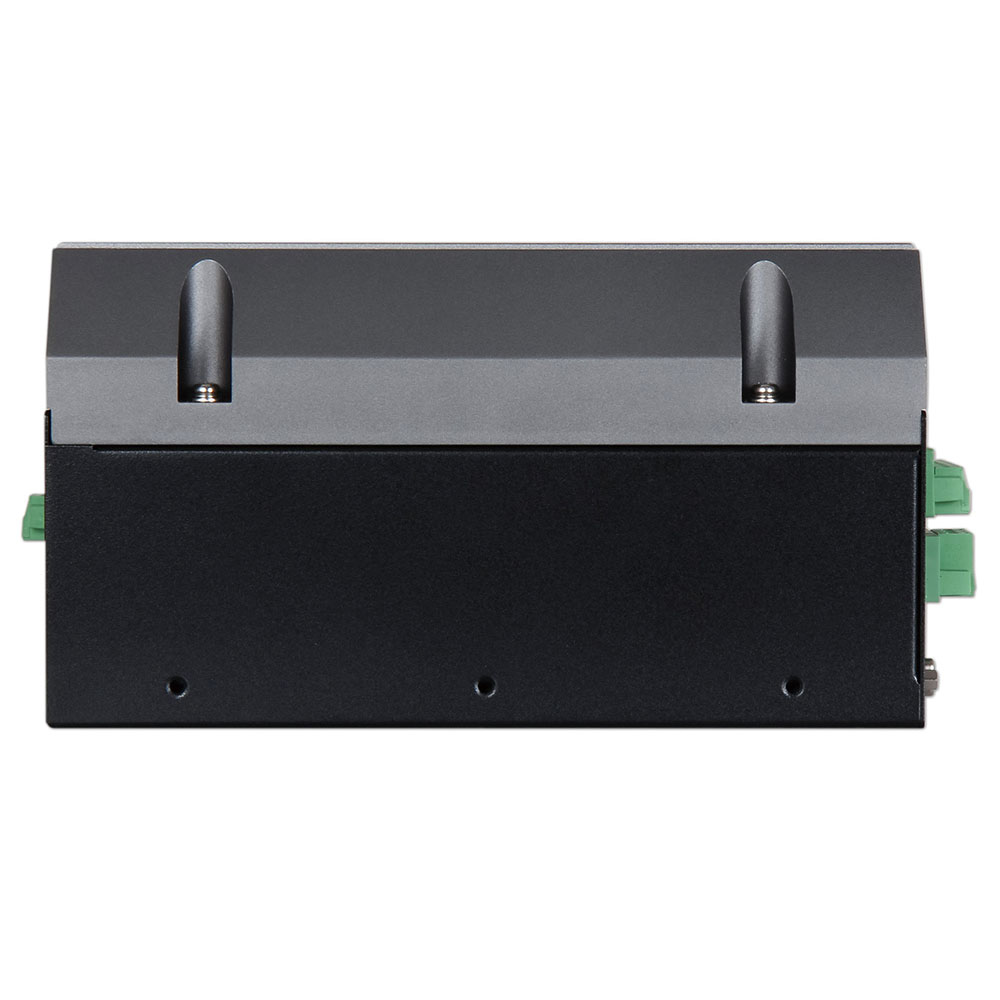

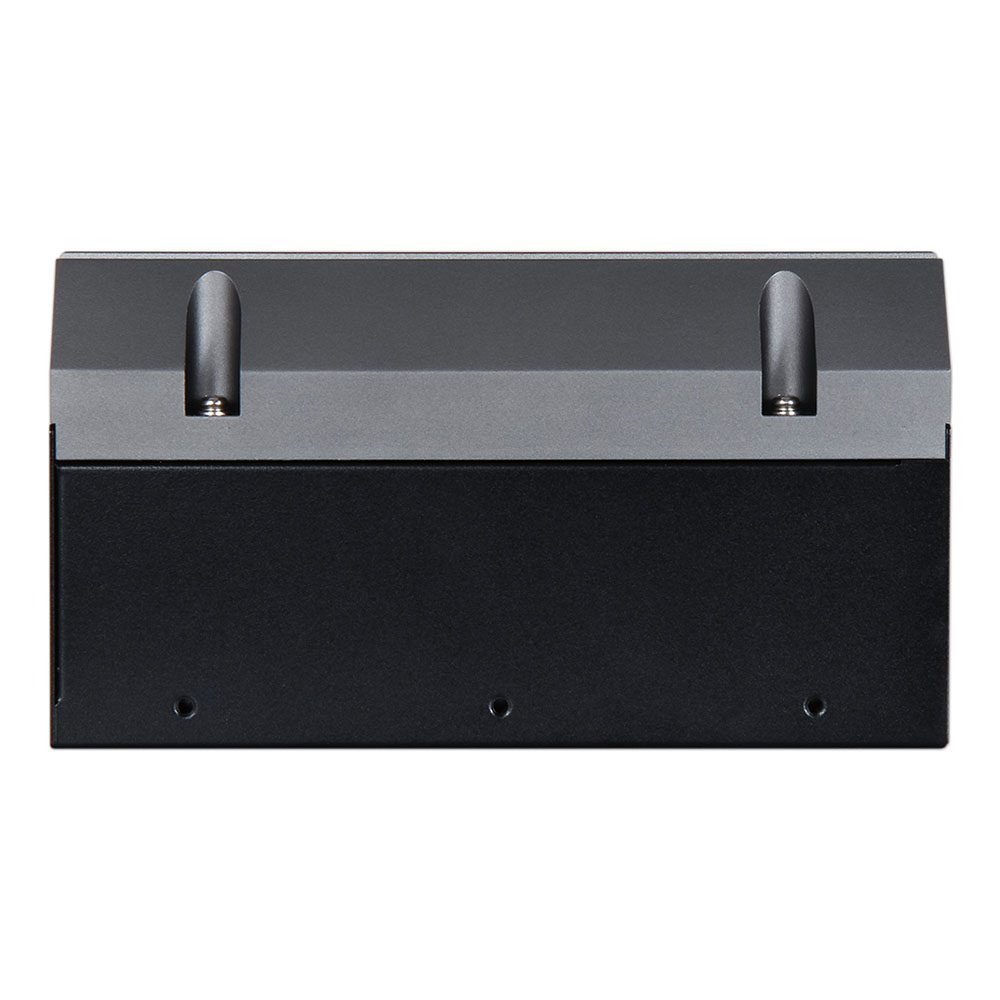

WEBS-45J1

Embedded Rugged Fan-less System with 14th/13th/12th Generation Intel® Core™ i3/i5/i7/i9 based Mini-ITX Board

Features

  • Support 14th/13th/12th Generation Intel® Core™ i3/i5/i7/i9 processors
  • Two SO-DIMM support DDR5 DRAM up to 96GB
  • Support triple DP and one HDMI® display
  • Support One M.2 E Key, One M.2 M Key
  • Support 4x COM ports (2x RS-232/422/485)
  • 2x Antenna holes for WiFi module

Description

The WEBS-45J1 builds on Intel® desktop Q670E chipset and takes advantages of 14th/13th/12th Generation Intel® Core™ i3/i5/i7/i9 processors technologies that can support dual DDR5 memory and 2x SATA Ports for storage. Support two Gigabit Ethernet ports, One M.2 E Key, One M.2 M Key socket. The WEBS-45J1 is an ideal platform with rich I/O and high resolution for POS, kiosk, digital signage, and factory automation applications.

Specification

Specifications
System
M/B WADE-8213
CPU Supporting Intel®14th/13th/12th Gen Core™ CPU (LGA1700 socket, 35W TDP)

  • Intel® Core™ i9-14900T
  • Intel® Core™ i7-14700T
  • Intel® Core™ i5-14500T
  • Intel® Core™ i3-14100T
  • Intel® Core™ i9-13900TE
  • Intel® Core™ i7-13700TE
  • Intel® Core™ i5-13500TE
  • Intel® Core™ i3-13100TE
  • Intel® Core™ i9-12900TE
  • Intel® Core™ i7-12700TE
  • Intel® Core™ i5-12500TE
  • Intel® Core™ i3-12100TE
BIOS AMI uEFI BIOS
Memory
  • Supports two DDR5 dual channel up to 96GB SO-DIMM sockets
  • Supports DDR5-5600 MT/s 1DPC 1R and DDR5-5200 MT/s 1DPC 2R SO-DIMM memory on all i9,i7 and select i5 SKUs
Storage 2x SATAIII ports
Watchdog Timer Programmable watchdog timer
TPM TPM 2.0 (Optional)
H/W Status Monitor System monitor (Voltage and Temperature)
Expansion
  • 1x M.2 E Key 2230 with PCIe x1, CNVI for Wireless
  • 1x M.2 M Key 2242/2260/2280 with PCIe x4 and SATA3 for SSD



Specifications

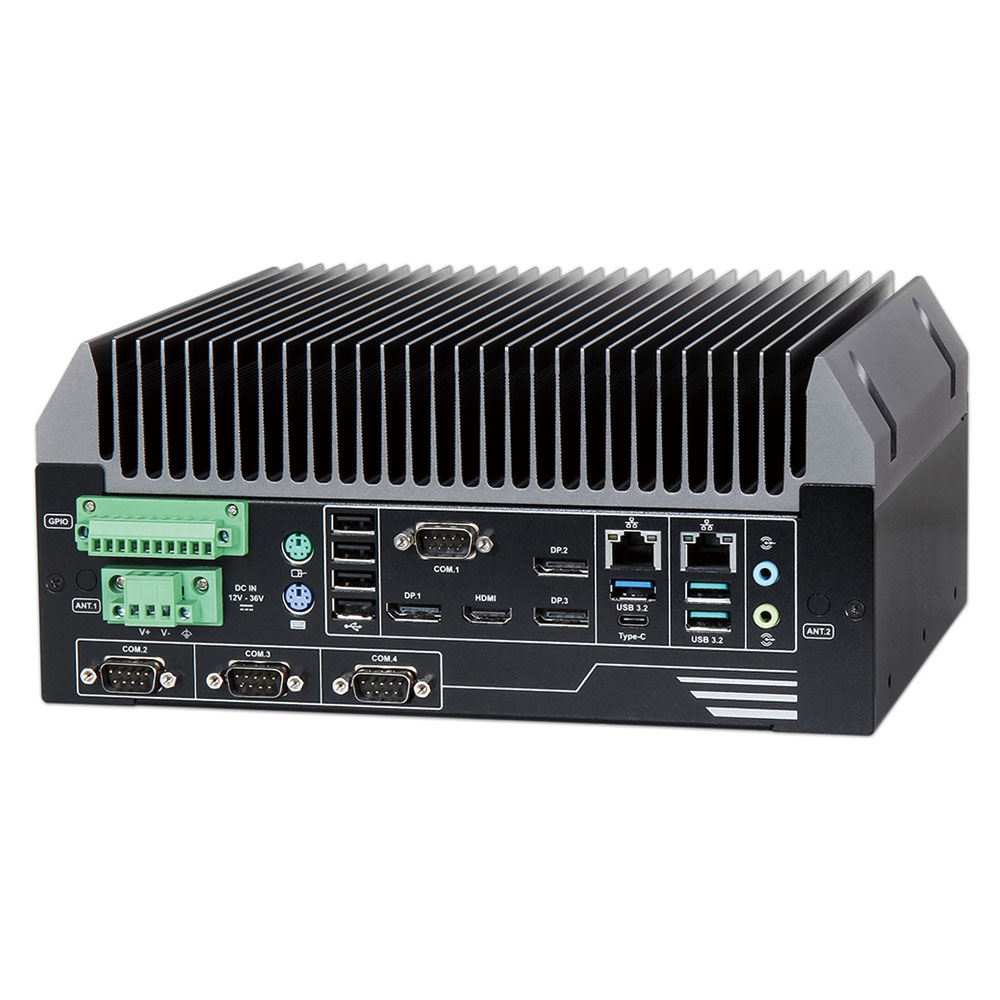

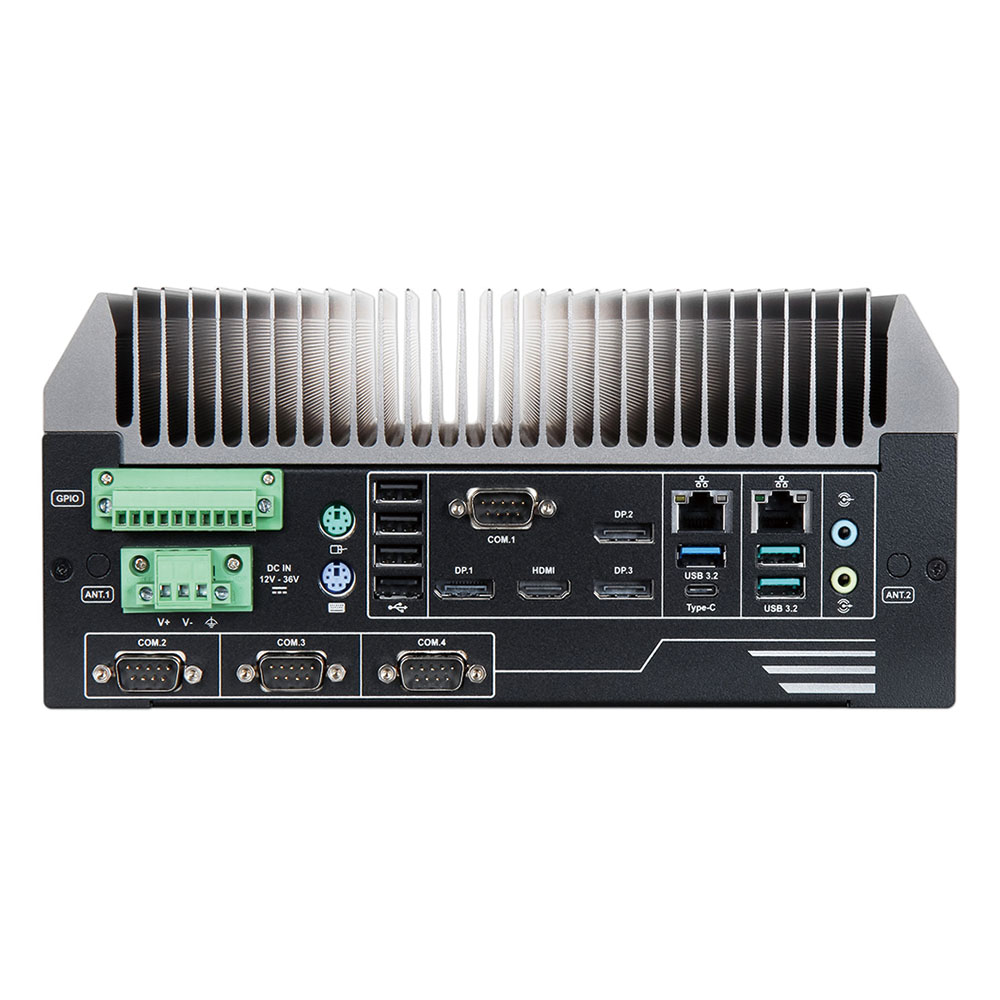

External I/O
Serial Port 4 x COM ports ( 2 x RS- 232/422/485)
Display
  • 3x DP, resolution up to 8K
  • 1x HDMI®
USB
  • 3x USB 3.2 Gen 2 (2x Type A + 1x Type C)
  • 1x USB 3.2 Gen1
  • 4x USB 2.0
Audio Audio Jack with Line-out / Line-in with Realtek ALC897 Audio controller
Ethernet
  • Intel® I210AT(1GbE) and Intel® I225LM(2.5GbE) Ethernet controller
  • 2x RJ45 connectors
GPIO 1x Programmable 8-bit Digital I/O
Other
  • 2x Antenna holes for WiFi module

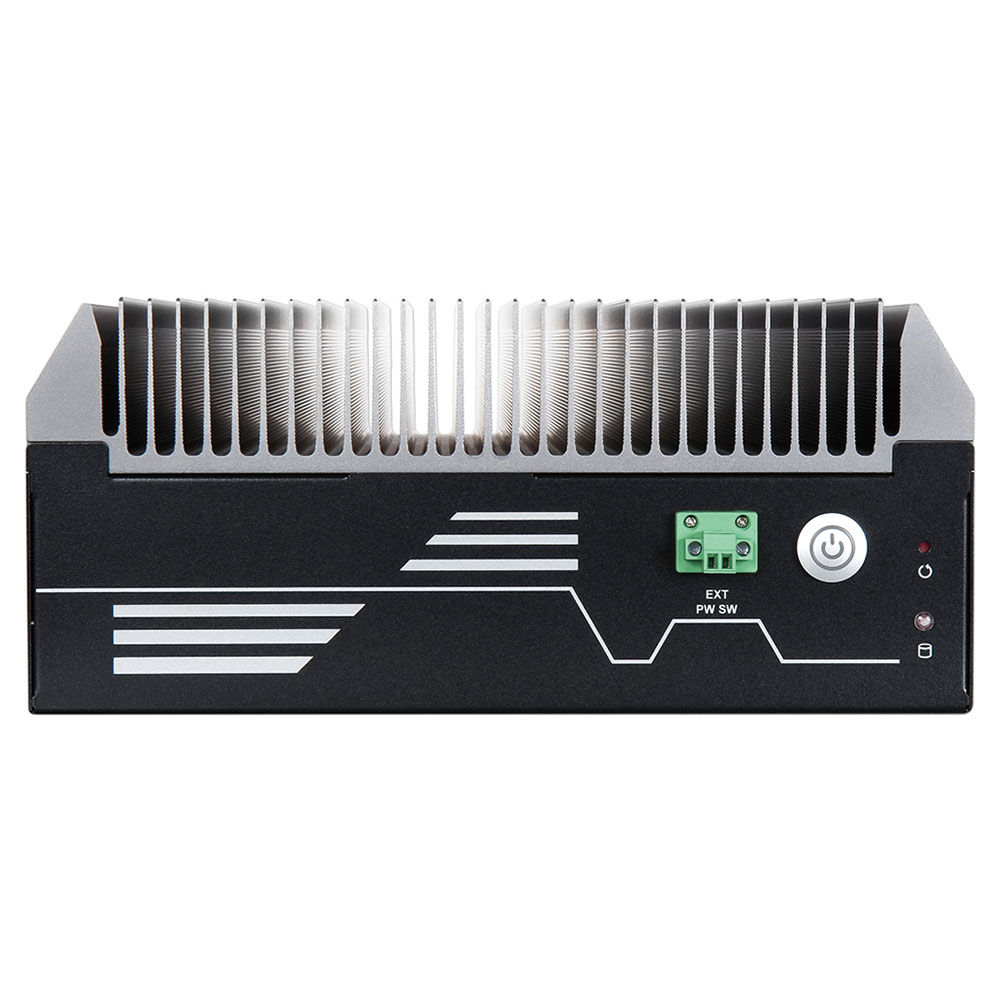

  • 1x EXT Power Switch



Specifications
Power Supply Unit
Power Input DC 12V ~ 36V with 3-pin Terminal Block Connector



Specifications
Environmental
Operation Temperature -20°C ~ 60°C
Storage Temperature -40°C ~ 80°C
Relative Humidity 40°C, 95%RH non-condensing
Operation Vibration 1Grms/10-500Hz, IEC 60068-2-6
Operation Shock 50G, 11 msec, IEC 60068-2-27



Specifications
Mechanical
Dimension 253 (W) x 201.2(D) x 111.8 (H) mm
Weight 5.25Kg
Mounting Wall mounting
