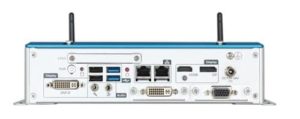

WEBS-5481

Embedded Rugged Fan-less System with Intel^® Celeron^® and Core™ i5/i7 based Specific Form Factor Board

Features

4^th generation Intel^® Celeron^® & Core™ i5/i7 ULT SoC
Intel^® Haswell ULT SoC low power & high performance embedded fan-less system
Dual channel SO-DIMM socket up to 16GB DDR3L Memory
1x 2.5” SATA HDD/SSD, 1x CFEX, 1x mSATA
2x Mini-PCIe socket can be used in a diversity of applications
1x RS-232/422/485, 1x RS-232, 2x USB3.0, 2x USB2.0, 2x Gigabit Ethernet Port
5 Display by DVI-D/HDMI^®/DP + Optional Graphic Module
2x Antenna hole + 1x on board SIM card holder for WiFi or 3G/GPS module to use
OP Vibration: 5Grms/10~500Hz
OP Shock: 50G, 11msec
IP40 Rating

Description

The WEBS-5481 builds on Intel^® Haswell ULT Low Power SoC and takes advantages of Intel^® Core™ mobile processor technologies that can support dual channel DDR3L memory. Support two Gigabit Ethernet ports and two Mini-PCIe sockets, even up to 5 displays by option. The WEBS-5481 is an ideal platform with HD graphic output for POS, kiosk, digital signage and transportation applications.

Specification

Model	WEBS-5481
M/B	PEB-5731-W
Form Factor	Specific Form Factor 170 x 135 mm
System
CPU	Intel^® 4th Generation ULT Core™ i Processor
Chipset	Intel^® SoC
BIOS	AMI UEFI
Memory	DDR3L/16GB
Graphic Controller	HD Graphics 4000 Family
Audio Codec	ALC892
Super I/O	EC ITE IT8528 + Fintek F81216
Storage	1x CFEX, 1x 2.5” SATA HDD/SSD 1x mSATA
External I/O
Serial	1x RS-232 1x RS-232/422/485
USB	2x USB2.0 2x USB3.0
Display	DVI-D, DP, HDMI^®
Ethernet	Intel^® I218LM+I210AT
PS/2	N/A
Audio	Line-out, Mic-in
D I/O	8-bit Digital I/O
Expansion	1x Full-size Mini-PCIe 1x Half-size Mini-PCIe 2x Optinal Graphic Module
PWR
System	DV 12V ~ 24V
Environment
OP Temp.	-20°C ~ 55°C
Storage Temp.	-40°C ~ 80°C
Humidity	95%@40°C, non-condensing
Vibratoin	5Grms/10-500Hz
Shock	50G, 11 msec
Mechanical
Dimension(WxDxH)	235 x 160 x 60 mm
Weight	2 Kg

Ordering Guide

Ordering Guide
AS5-3366	(R).ATO.WEBS-5481.Haswell ULT. Fanless System

Documents & Downloads

Catalog WEBS-5481 | Catalog 214S-1 March 24, 2014

1.47 MB 5213 Downloads

BIOS BIOS_PEB-5731-W(WEBS-5481)_R100E4_.zip | BIOS R1.00.E4 November 27, 2015

Move item Serial Port RS485 Mode to OEM Page.
Support SuperI/O F81216AD RS-485 mode control.
Rename item "Serial Port RS485 Mode" to "RS-485 Auto Flow Control".

10.09 MB 1697 Downloads

BIOS BIOS_PEB-5731-W(WEBS-5481)_R100E3.zip | BIOS R1.00.E3 April 30, 2015

BIOS of WEBS-5481

4.88 MB 1789 Downloads

No downloads found!

Driver Driver_WEBS-5481_PEDA-S1530_Win7-Ethernet.zip | Driver 20141014 October 14, 2014

Ethernet Driver for Windows 7

54.48 MB 2441 Downloads

Driver Driver_WEBS-5481_PEDA-S1530_Win7-Audio.zip | Driver 20141014 October 14, 2014

Audio Driver for Windows 7

198.78 MB 2337 Downloads

Driver Driver_WEBS-5481_PEDA-S1530_Audio.zip | Driver 20141014 October 14, 2014

Audio Driver for Windows 7

198.78 MB 2405 Downloads

Driver Driver_WEBS-5481_PEDA-S1530_Win7-ZUxxx-series-USB-driver_3.50.0.5.zip | Driver 20141014 October 14, 2014

ZU200 3G/GPS Driver for Windows 7

585.60 KB 3311 Downloads

Driver Driver_WEBS-5481_PEDA-S1530_Win7-Wi-Fi-Module-WPER-116Nv2.zip | Driver 20141014 October 14, 2014

WPER-116GN WiFi Driver for Windows 7

32.75 MB 2823 Downloads

Driver Driver_WEBS-5481_PEDA-S1530_Win7-USB 3.0.zip | Driver 20141014 October 14, 2014

USB 3.0 Driver for Windows 7

1.69 MB 2787 Downloads

Driver Driver_WEBS-5481_PEDA-Win7-S1530_Inf.zip | Driver 20141014 October 14, 2014

Chipset Driver for Windows 7

5.24 MB 2744 Downloads

Driver Driver_WEBS-5481_PEDA-S1530_Win7-ME9.5_5M_9.5.10.1580.zip | Driver 20141014 October 14, 2014

iAMT Driver for Windows 7

66.84 MB 2576 Downloads

Driver Driver_WEBS-5481_PEDA-S1530-Win7_Graphic.zip | Driver 20141014 October 14, 2014

Graphic Driver for Windows 7

237.79 MB 2632 Downloads

Driver Driver_WEBS-5481_PEDA-S1530-Win7_Ethernet.zip | Driver 20141014 October 14, 2014

Ethernet Driver for Windows 7

54.48 MB 2761 Downloads

User's Manual Manual_WEBS-5481_V1.1_20150521.pdf | Manual V1.1 May 21, 2015

Manual of WEBS-5481

2.09 MB 1168 Downloads

User's Manual Manual_WEBS-5481_V1.0_20150121.pdf | Manual V1.0 January 21, 2015

Manual of WEBS-5481

1.87 MB 1551 Downloads

Certificate Certification_WEBS-5481-B0271_FCC.pdf | Certification 20150429 April 30, 2015

WEBS-5481_FCC Certification

105.19 KB 1081 Downloads

Certificate Certification_WEBS-5481-A-0303_CE.pdf | Certification 20150429 April 30, 2015

WEBS-5481_CE Certification

105.08 KB 1130 Downloads

No downloads found!

Application Note PCOM-B65A | Application Note 240710 August 15, 2024

0.00 KB 28 Downloads

Drawing Drawing_WEBS-5481.pdf | Drawing 20150430 April 30, 2015

Drawing of WEBS-5481

152.77 KB 1120 Downloads
