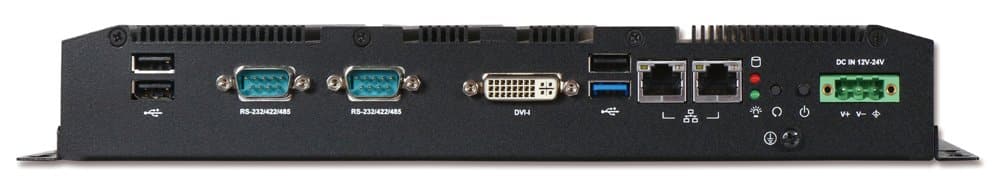

The WEBS-5491 is powered by Intel® Atom® quad-core processor. Despite its fanless and cable-less design, the system can support wide temperature ranging from -30 to 70 degrees. Expandable I/O combination design makes it more flexible for various environments. By utilizing the low power technology, WEBS-5491 is an ideal platform for factory automation and transportation applications.
| Model | WEBS-5491 |
| M/B | PEB-99A4-E3845 |
| Form Factor | Specific Form Factor 227 x 150 mm |
| System | |
| CPU | Atom® E3845 1.91GHz |
| Chipset | Intel® SoC |
| BIOS | AMI UEFI |
| Memory | DDR3L/8GB |
| Graphic Controller | Intel® Gen 7 Graphics |
| Audio Codec | ALC892 |
| Super I/O | EC ITE IT8528 + Fintek F81216 |
| Storage | 1x 2.5” SATA HDD/SSD 1x CF, 1x SD card |
| External I/O | |
| Serial | 2x RS-232/422/485 |
| USB | 3x USB2.0 1x USB3.0 |
| Display | DVI-I |
| Ethernet | Intel® I210IT x 2 |
| PS/2 | N/A |
| Audio | Line-out |
| D I/O | N/A |
| Expansion | 1x Half-size Mini-PCIe |
| PWR | |
| System | DC 12V ~ 24V |
| Environment | |
| OP Temp. | -30°C ~ 70°C |
| Storage Temp. | -40°C ~ 80°C |
| Humidity | 95%@40°C, non-condensing |
| Vibratoin | 5Grms/10-500Hz |
| Shock | 50G, 11 msec |
| Mechanical | |
| Dimension(WxDxH) | 279 x 164 x 42 mm |
| Weight | 2.8 Kg |
| AS5-3435 | (R).ATO.WEBS-5491.Intel Baytrail E3845.Fanless System |
