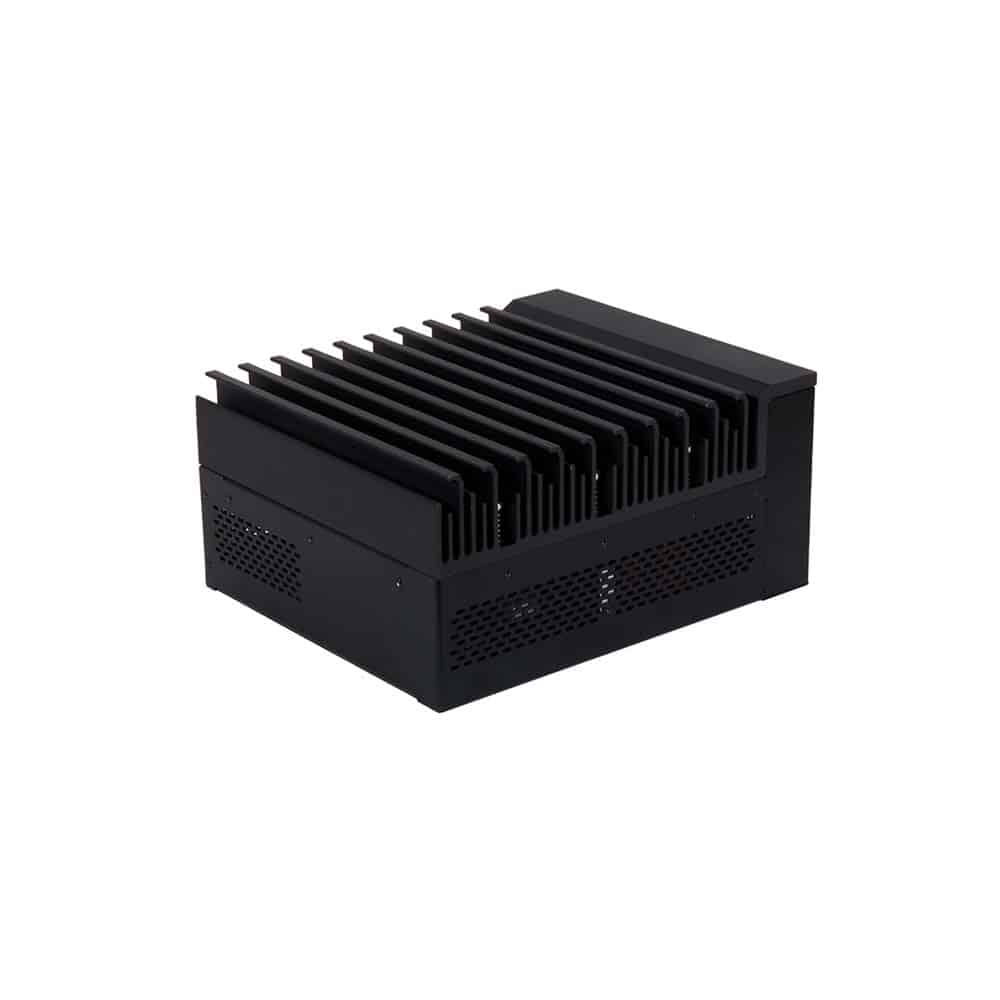

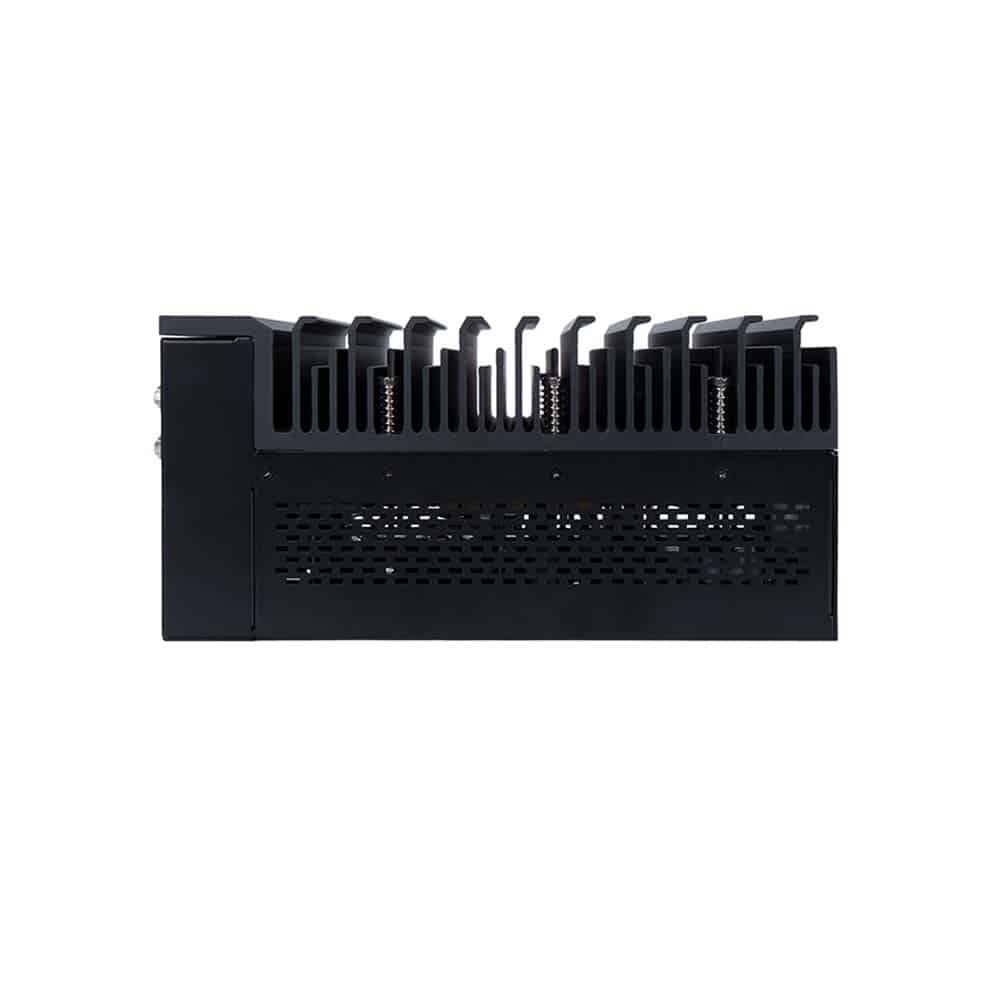

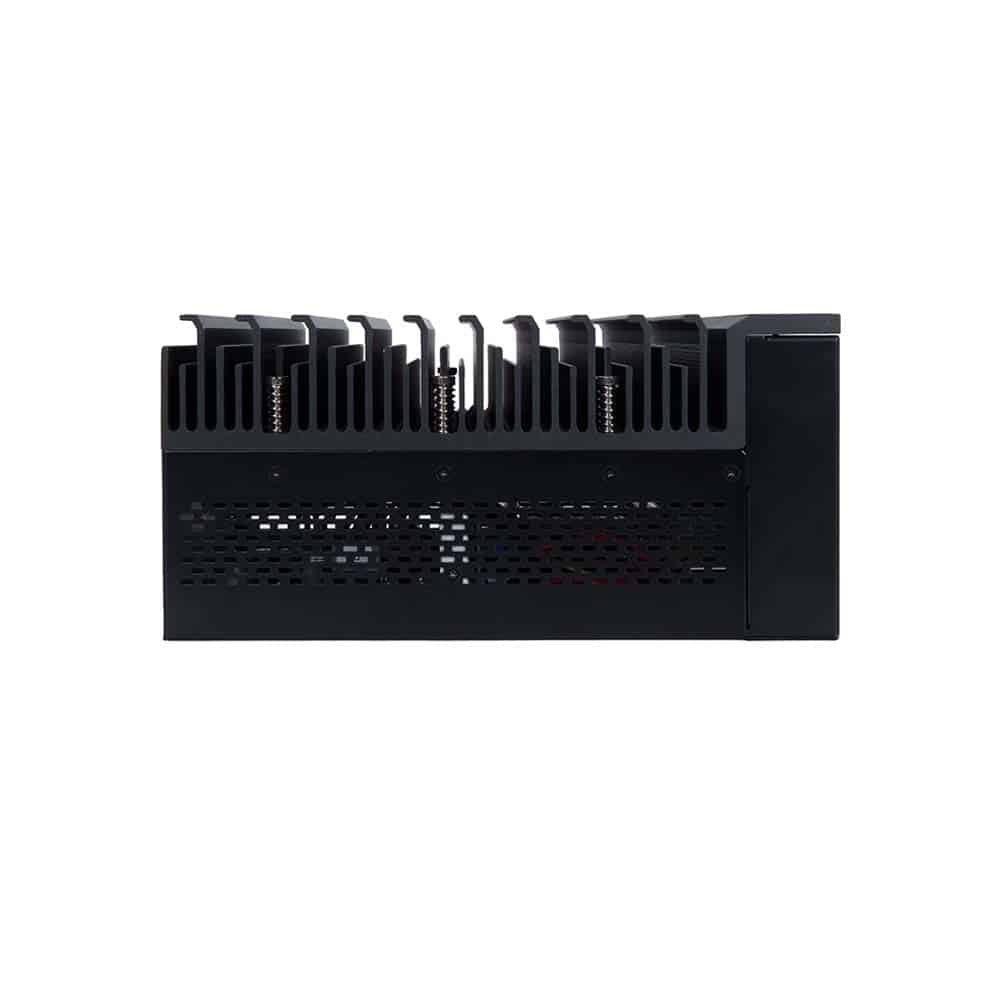

WEBS-85H1

Embedded Rugged Fan-less System with 10th Generation Intel® Xeon® / Core™ i3/i5/i7/i9 based Proprietary Board

Features

  • Support 10th Generation Intel® Xeon® / Core™ i3/i5/i7/i9 processors
  • 2x SO-DIMM, Support DDR4 2666/2933 MHz SO-DIMM. up 64 GB ( ECC / Non- ECC)
  • Support triple displays including HDMI® 1.4, HDMI® 2.0, DP
  • Support Mini-PCIe socket, M.2 2242/60/80 M-key socket and M.2 2230 E-key socket
  • Support 4x COM ports ( 1x RS- 232/422/485, CANbus (2.0 A/B) selected by on board jumper)
  • 4 x Antenna hole for WiFi and 4G/GPS module to use
  • Onboard TPM 2.0

Description

The WEBS-85H1 builds on Intel® desktop W480E chipset and takes advantages of 10th Generation Intel® Xeon® / Core™ i3/i5/i7/i9 processors technologies that can support dual DDR4 memory. Support three Gigabit Ethernet ports, one M.2 M Key socket,one M.2 E Key socket and one Mini-PCIe socket. The WEBS-85H1 is an ideal platform with rich I/O and high resolution for POS, kiosk, digital signage, factory automation and surveillance security monitoring applications.

Specification

Specifications
System
M/B Proprietary
CPU 10th Generation Intel® Xeon® / Core™ i3/i5/i7/i9 Processors (35W TDP)
BIOS AMI UEFI BIOS
Memory 2x SO-DIMM, Support DDR4 2666/2933 MHz SO-DIMM. up 64 GB ( ECC / Non- ECC)
Storage – 1x Type II CFast slot
– 2x 2.5” SSD slots
Watchdog Timer HW WDT Enable (WDT_EN)
TPM TPM 2.0
H/W Status Monitor System monitor (Voltage, Temperature)
Expansion – 1x Mini PCIe socket (supports mSATA or cellular module)
– 1x M.2 2242/60/80 M key socket (PCIe x4 & SATA mode)
– 1x M.2 2230 E key socket (supports CNVi, Wi-Fi/BT module)

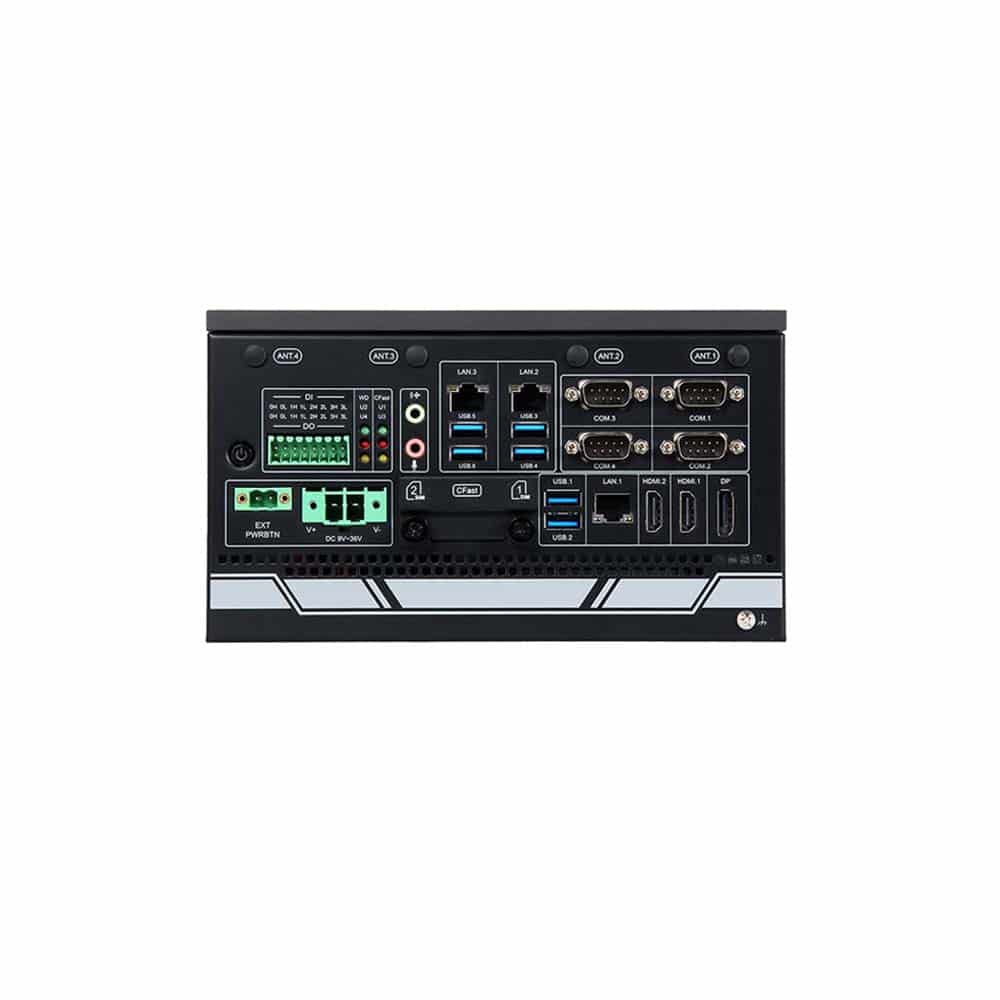

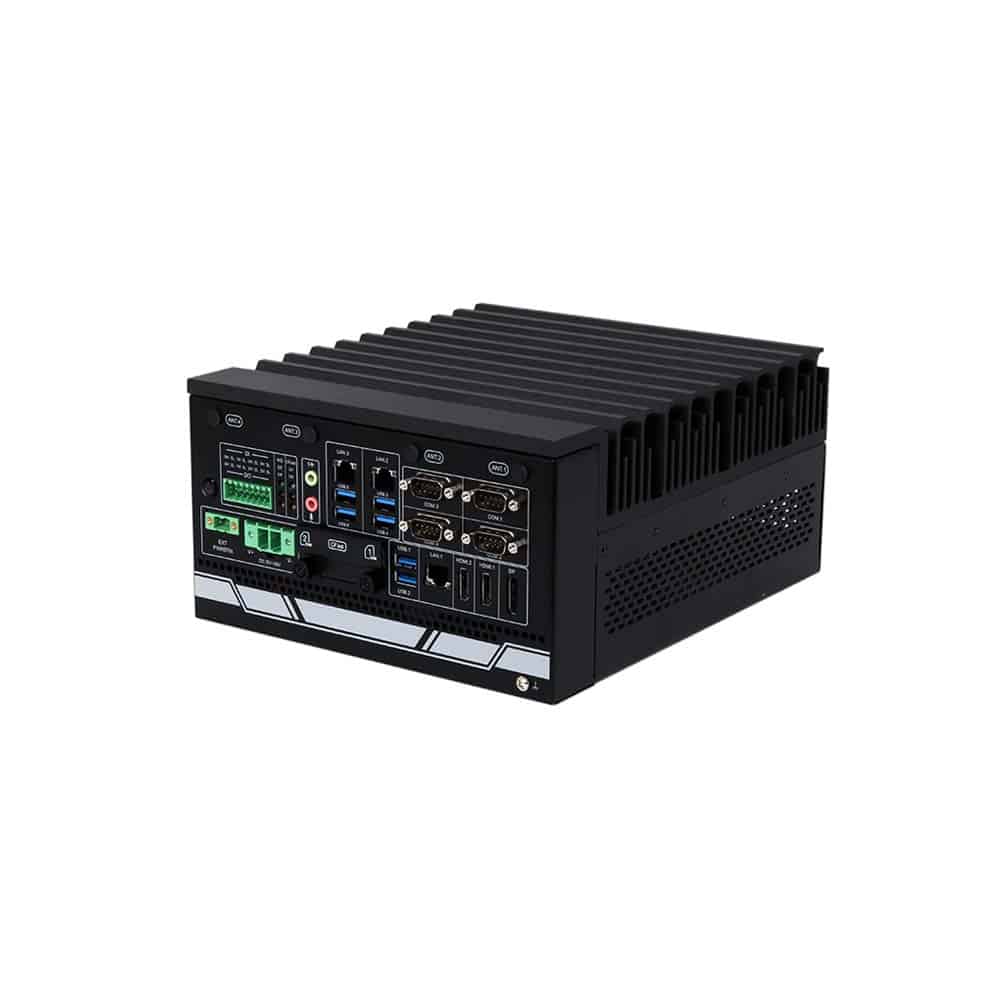

External I/O
Serial Port 4x COM port (1x RS-232/422/485, CANbus (2.0A/B) selected by on board jumper)
Display – 1x HDMI® 2.0, supports up to 4096 x 2160 @ 60 Hz
– 1x HDMI® 1.4, supports up to 4096 x 2160 @ 30 Hz
– 1x DP 1.2, supports up to 4096 x 2304 @ 60 Hz
USB – 2x USB 3.2 Gen 2
– 4x USB 3.2 Gen 1
Audio Mic-in / Line-Out
Ethernet 3x Gigabit Ethernet (Intel® I210-IT )
DIO 4x DI, 4 x DO
SIM 2x nano SIM card slot
Power Supply Unit
Power Input 9 to 36 VDC, 2-pin terminal block connector
Environmental
Operation Temperature -20°C ~ 60°C
Storage Temperature -40°C ~ 80°C
Relative Humidity 60°C, 95%RH non-condensing
Operation Vibration Desk mount: 0.5 Grms (10 Hz to 500Hz)
System: 1Grms (10 Hz to 500Hz)
Operation Shock Desk mount: 15G, 11 msec
System: 50G, 11 msec
Mechanical
Dimension 210(W) x 250(D) x 119.7(H) mm
Weight 4.5 Kg
Mounting Desk mount
