Portwell / Products / Medical Panel PC - Wincomm / Medical Cart All In One PC / WMP-109
| Model | WMP-109 |
|---|---|
| Main System | |
| CPU / Chipset | Intel®Alder Lake-N N97 Processor, 1.1GHz (up to 3.6G Hz), Max. TDP 6 W |
| Graphic | Intel®integrated UHD Graphics |
| RAM | 1 x DDR5 SO-DIMM sockets, Max. Capacity 16 GB Support Single Channel DDR5 4800 MHz memory modules |
| TPM | TPM 2.0, On Board |
| OS Support | Windows 10 IoT 2019 LTSC (64bit) / Windows 11 IoT LTSC |
| Storage | 1 X M.2 M-key 2280 SSD, Defaulted NVMe. 128G |
| Expansion | 1 x M.2 E-key 2230, 1 x Full Size Mini-PCIe w/SIM slot |
| Display Size | 10.1″ |
| Display | 1280×800, 16.7M colors , 170(H) / 170(V), 350 nits (Typ. Center point), CR:800 : 1 (Typ) |
| Touch Screen | Full flat projective capacitive touch panel / Light Transmission: 90% ± 3% / Hardness: 7H pencil, pressure 750g/45° |

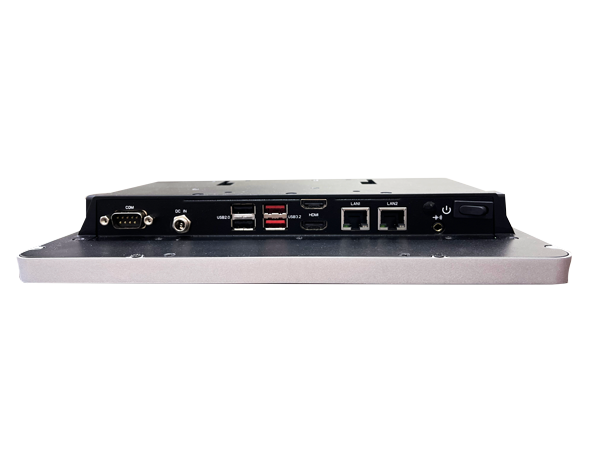

| I.O. Ports | |
| USB | 2 x USB 3.2 Gen 2, 2 x USB 2.0 |
| COM | 1 x RS232/422/485 (default is RS232, RS422 and RS485 are by manually change jumper setting on mother board) |
| LAN | RJ45 X 2 |
| Audio | Line Out, 3.5mm Phone Jack x 1, 1.5W Speaker x 1 |
| Video Out | 2 x HDMI® |
| Control Hot Key (R to L) | Rear Bottom: Power on /off, ATX Switch |
| Mechanical and Environmental | |
| Cooling | Fanless |
| Power Input | 1 x 12~36 VDC-in |
| Power Adapter | External, 63 Watts, Universal 100 ~240V AC in, 12V DC Out |
| Temperature | Operating Temperature: 0~50℃ (IEC60068-2-78) Storage Temperature: -20~60℃ |
| Humidity | Operating & Storage: 10 ~ 90%, non-condensing |
| IP Rating / Housing | IP65 (Front Side) / Silver Bezel / Black Cover |
| Weights (Net) | 1.27 KG (approximate, w/o power adapter) |

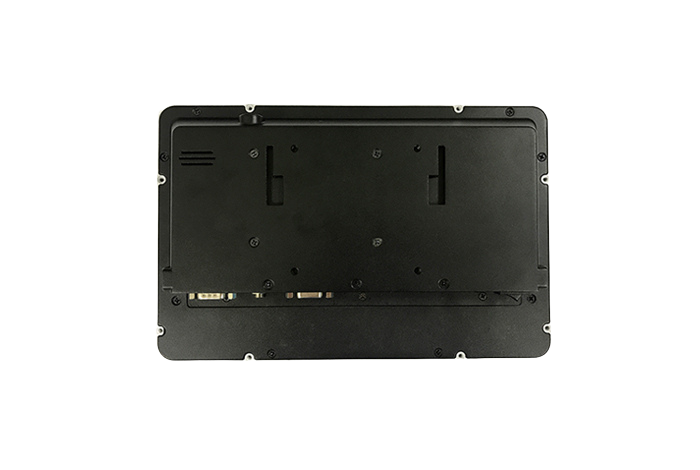

| Mounting | Chassis, VESA (75×75) |

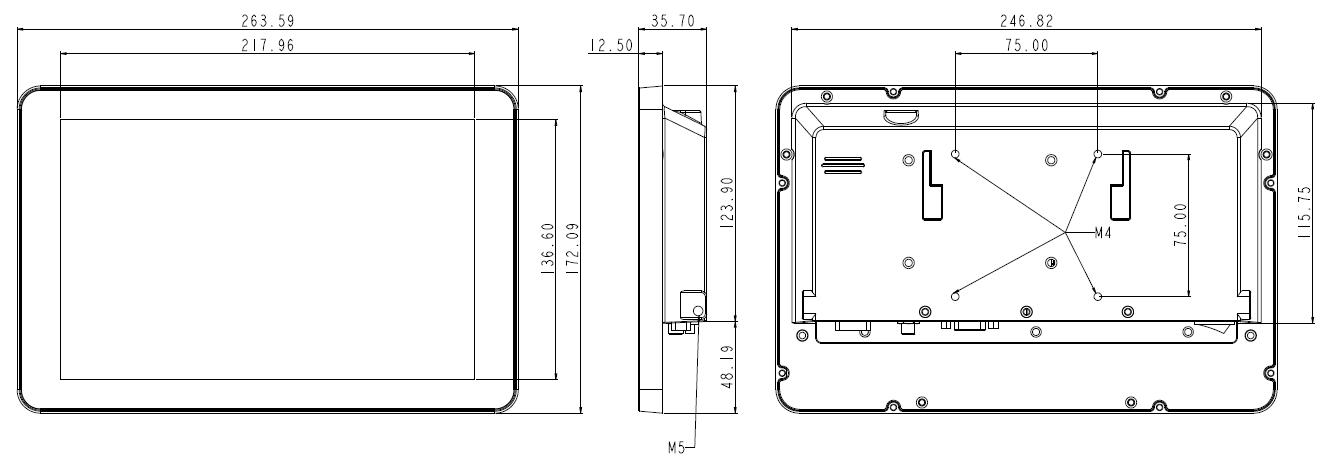

| Dimensions (Net:mm) | 263.3 (H) x 171 (V) x 35.7 (T) |
| Certification | CE/ FCC/ VCCI Class B, Canada ICES-003, CE EN60601-1-2 |
| Major Options | |
|---|---|
| Options |
|
| Customization |
|
