| Model |
WMP 22U IP0A (STD) |
| Main System |
| CPU / Chipset |
FCBGA2049 Intel®Core Ultra 200 Series (Code Name: Arrow Lake) Processor (15W Max.) / SoC / Support Vpro |
| Graphic |
Intel®Graphics |
| RAM |
Two 4800 MHz DDR5 SODIMM Socket Support Dual Channel, non-ECC, up to 96GB |
| TPM |
On Board TPM |
| OS Support |
Optional Win 10 IoT Enterprise LTSC, Win 11 IoT Enterprise LTSC |
| Storage |
1 x M.2 (M Key 2280) with PCIex4 for SSD, 1 x M.2 M Key, 2280 with PCIe x4 PCIe |
| Expansion |
1 x M.2 M Key 2280 PCIex4 PCIe, 1 x M.2 E Key 2230 |

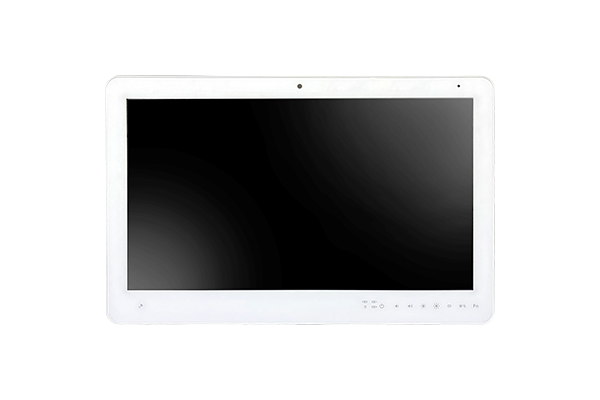

| Display Size |
21.5” wide TFT-Color LCD (16:9) |
| Display |
1920 x 1080 (Full HD), 16.7M colors (Ture 8 bit), 178(H) / 178(V), 250 nits (Typ. Center point), CR:1000: 1 (Typ) |
| Touch Screen |
Projected Capacitive Multi-Touch Panel / Light Transmission: ≥ 88% / Hardness: ≥ 7H pencil, pressure 765g/45° / Life: 50,000 Hrs |

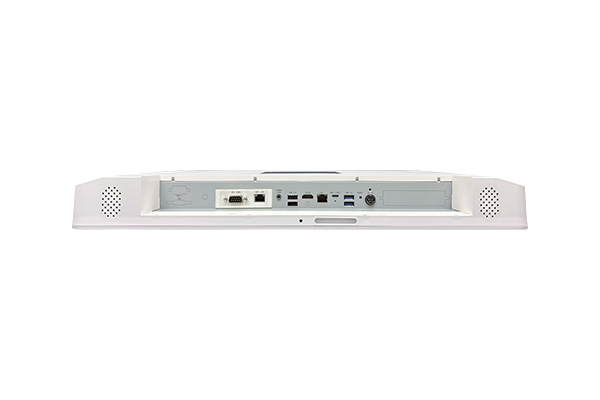

| I.O. Ports |
| USB |
2 x USB3.2, 2 x USB2.0, 1 x USB3.2 Type C |
| COM |
1 x 1.5KV ISO RS232/RS422/RS485, Optional 1 x RS-232 |
| LAN |
1 x 1.5KV ISO RJ45 (2.5 Gbps), 1 x RJ45 (2.5 Gbps, Support AMT/Vpro) |
| Audio |
1 x 3.5mm combo phone jack connector (Line-out & Microphone-in) |
| Video |
1 x HDMI2.0 |
| Speakers & Microphone |
2 x 3-watt Speakers & Integrated Microphone (at Housing Bottom Side) |
| Reading light |
1 x Light bar (at housing bottom side) |
| Control Hot Key (R to L) |
Battery LED Indicator, Power On/Off, Volume +/-, Brightness +/-, Reading Light, LCD On/Off & Clean Me, Function Key |
| Mechanical and Environmental |
| Cooling |
Fanless Design with External Heatsink |

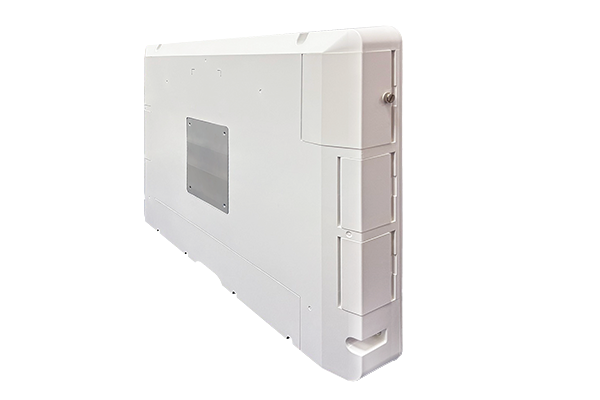

| Battery Pack |
Option 3 xWBT-1123, Hot-Swappable Battery |
|
|
| Power Input / Power Adaptor |
DC-In x 1, DC 19-24V input/ AC input 100~240V / 50 ~ 60 Hz / DC output 24V, 158.4W |
| Temperature |
Operating Temperature: 0~40℃ (IEC60068-2-78) w/ Battery 0~35°C / Storage Temperature: -20~60℃ |
| Humidity |
Operating & Storage:10 ~ 90%, non-condensing |
| IP Rating |
Front IP65, IPx1 for Whole System |

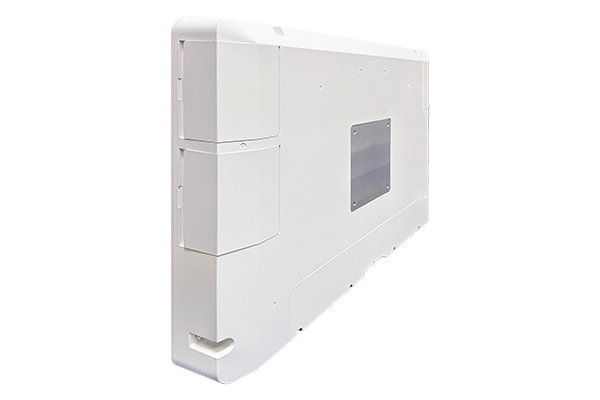

| Housing |
Front: Full flat design/ Touch (standard)/ Glass (customized); Rear: Plastic White w/Anti-bacteria (MRSA), Housing |

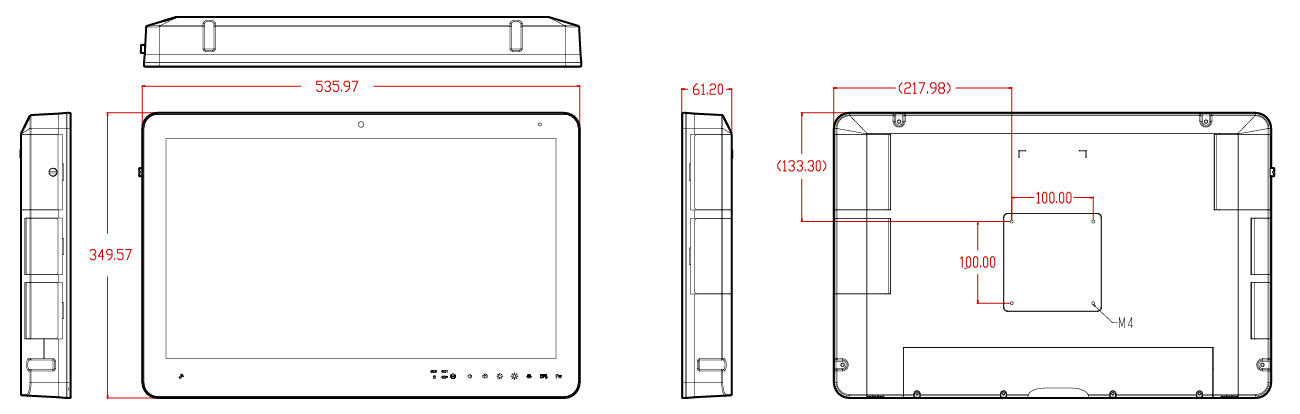

| Dimensions (Net) |
536.0mm(H) x 349.6mm(V) x 61.2 mm(T) |
| Weights (Net) |
5.9 kg (w/o power adapter/battery pack), 7.25 kg (with x3 battery pack & no power adaptor) |

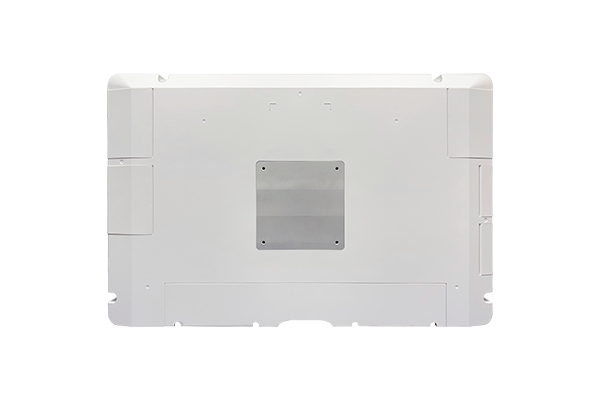

| Mounting |
Optional Stand, VESA 100 X 100 |
| Certification |
- CE: EN IEC 60601-1-2:2015/A1:2021(Ed 4.1)
- EN 60601-1: 2006/A2:2021; IEC 60601-1:2005, IEC 60601-1:2005/AMD1:2012, IEC 60601-1:2005/AMD2:2020
- VCCI: 2016-11, Class B (PSU/Battery with PSE)
- FCC: Part 18 Class B
- UL: AAMI ES60601-1:2005/(R)2012 and A1:2012/(R)2012 and A2:2021 By Project
- cUL: CAN/CSA-C22.2 No. 60601-1:14 By Project
- ISO 14971 / IEC62133
|
