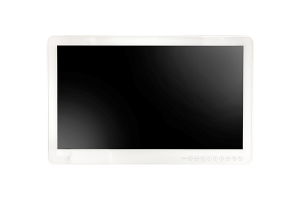

| Model | WMP-22V-PIS-L IP0N (STD) | WMP-22V-PIS-L IP0B (ISO) |
|---|---|---|
| Main System | ||
| CPU / Chipset | FCBGA 2049 Intel®Core Ultra 100/ 200 Series CPU (H series), 28W max./ Soc | |
| Graphic | Intel®ARC Graphics | |
| RAM | Two 6400 MHz DDR5 SODIMM socket support dual Channel, non-ECC, up to 96GB | |
| OS Support | Optional Win 10 IoT Enterprise LTSC 64 bit, Windows 11 IoT Enterprise LTSC 64 bit | |
| Storage | 1 x M.2 (M Key, 2280) with PCIe x4 for SSD, 1 x SATA DOM or E key SSD | |
| Expansion | 1x M.2 E key 2230, | |

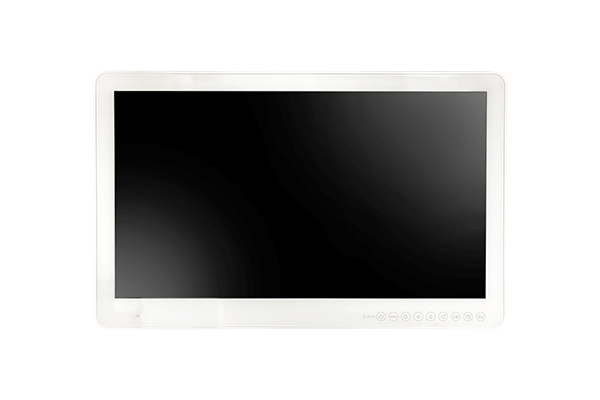

| Display Size | 21.5” 16:9 | |
| Display | 1920 x 1080 (Full HD), 16.7M colors, 178(H) / 178(V), 250 nits (Typ. Center point), CR:1000: 1 (Typ) | |
| Touch Screen | Full flat projective capacitive touch panel / Light Transmission: 88%+/-3%(STD) / Hardness: ≧6H pencil, pressure 750g/45° / Life: ≥50,000 times | |

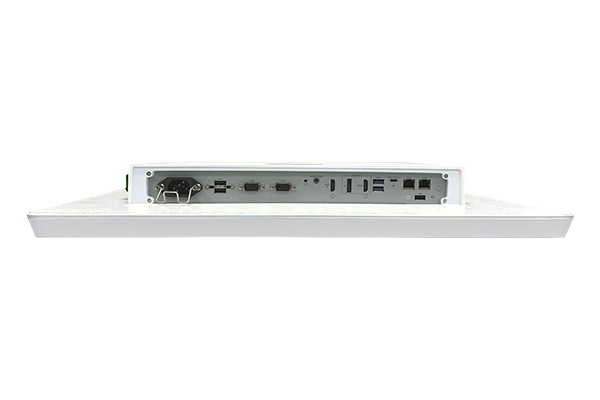

| I.O. Ports | ||
| USB | 2 x USB 3.2 Type A, 1 x USB 3.2 Type C 3 x USB 2.0 Type A (By Cable) | |
| COM | 1 x RS232 1 x RS232/RS422/RS485 |
1 x ISO RS232/RS422/RS485 |
| LAN | 1 x RJ45 2.5Gbps Intel®I226LM (support AMT/Vpro) 1 x RJ45 2.5Gbps Intel®I226V | 1 x RJ45 1Gbps Intel®I219LM (AMT/Vpro) 1 x RJ45 2.5Gbps Intel®I226V, 1 x ISO RJ45 1Gbps |
| Audio | 1 x 3.5mm combo Connector (Line-out, Mic-In), 2 x Waterproof 2W Speaker | |
| Video Out | 1 x DP 1.4a/DP++, 1 x HDMI® 2.0b | |
| Video In | 1 x HDMI®-in (with audio); Support in S5 Mode | |
| Control Hot Key (L to R) | Battery LED Indicator; Power; Menu/Exit; Brightness; Video-In LCD On/Off; Clean Me; Programmable Function |
|
| Mechanical and Environmental | ||
| Cooling | Fanless | |
| Power Adapter | AC input 100 ~240V / 47 ~ 63 Hz / DC output 24V 250W | |
| Temperature | Operating Temperature: 0~35℃ (IEC60068-2-78) Storage Temperature: -20~60℃ |
|
| Humidity | Operating & Storage: 10 ~ 90%, non-condensing | |
| IP Rating | Front: IP65, Rear: IP54 with optional cable cover attached | |
| Housing | Rear: Aluminum Alloy Body / White (Touch) / Bacteria resistant | |

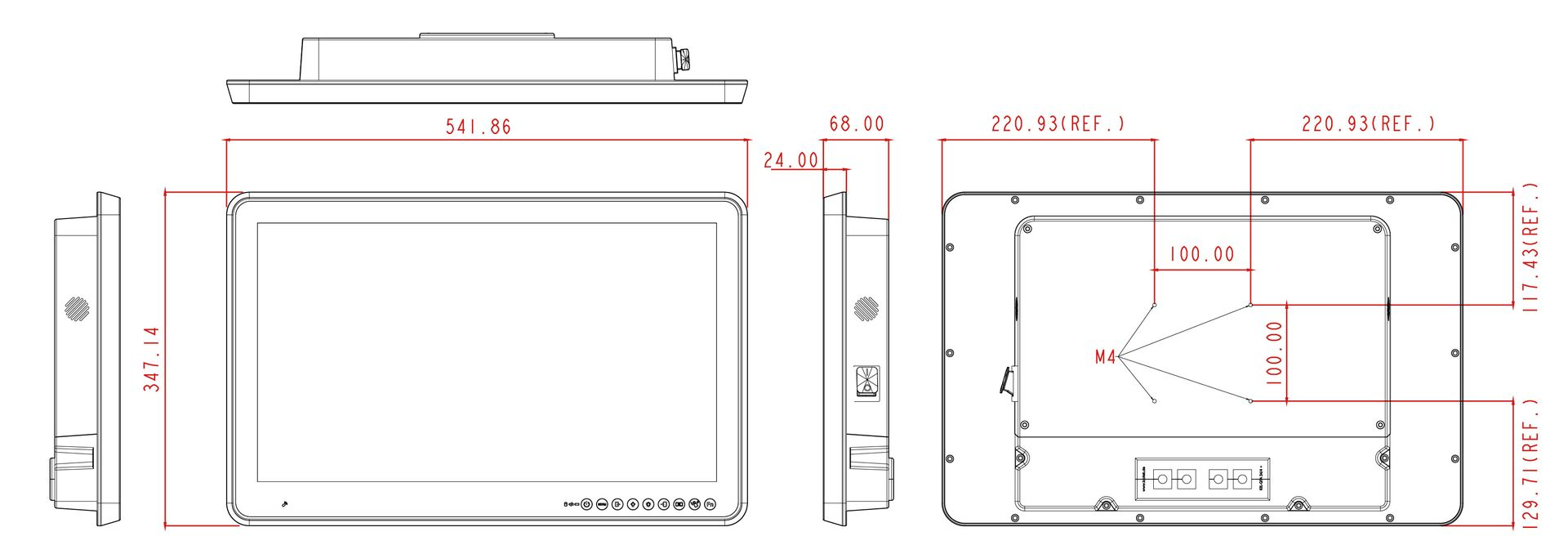

| Dimensions (Net) | 541.9 mm (H) x 347.1 mm (V) x 68 mm (T) | |
| Weights (Net) | 7.4 kg | |

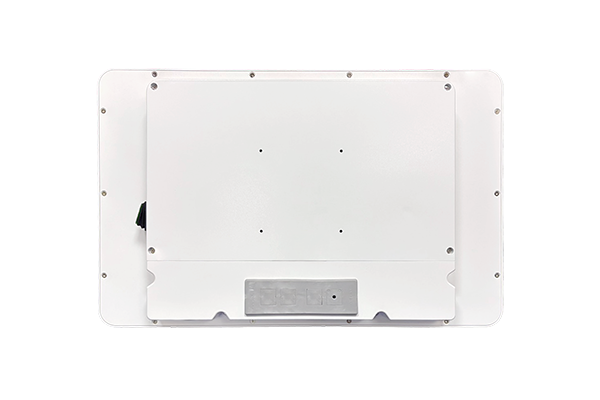

| Mounting | VESA 100 x 100 | |
| Certification | CE: EN 60601-1-2:2015 (V4.1) EN 60601-1: 2006/A2:2021; IEC 60601-1:2005, IEC 60601-1:2005/AMD1:2012, IEC 60601-1:2005/AMD2:2020 VCCI: 2016-11, Class B FCC: Part 18 Class B UL: AAMI ES60601-1:2005/(R)2012 and A1:2012/(R)2012 and A2:2021) (By project) cUL: CAN/CSA-C22.2 No. 60601-1:14) (By project) | |
