Portwell Global

WTP-9K66-15

Meteor Lake 15" Frameless

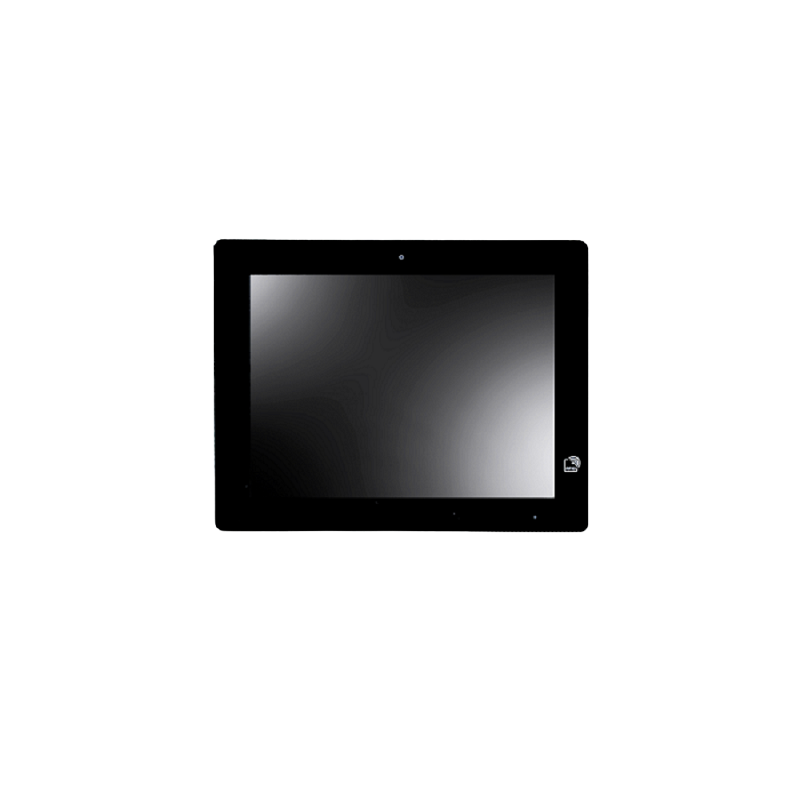

WTP-9K66-15

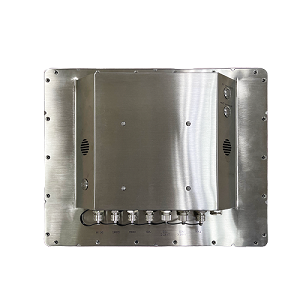

WTP-9K66-15-B

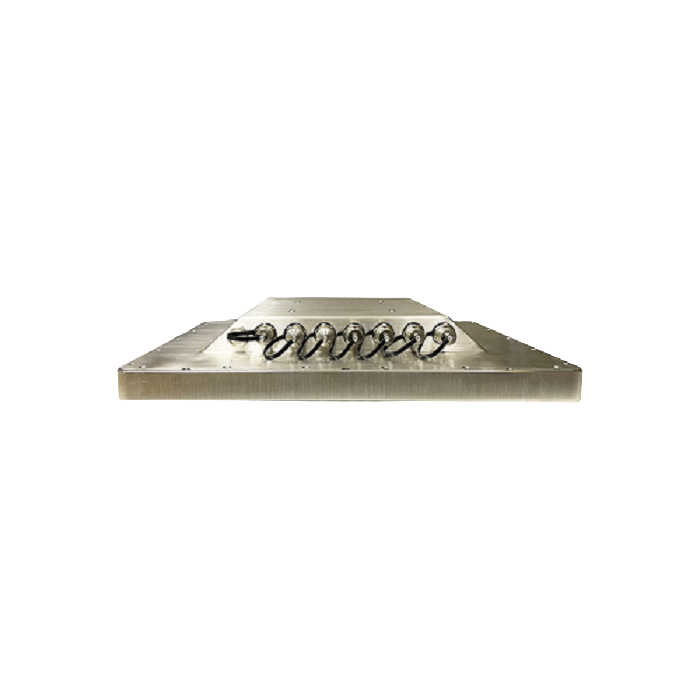

WTP-9K66-15-IO-2

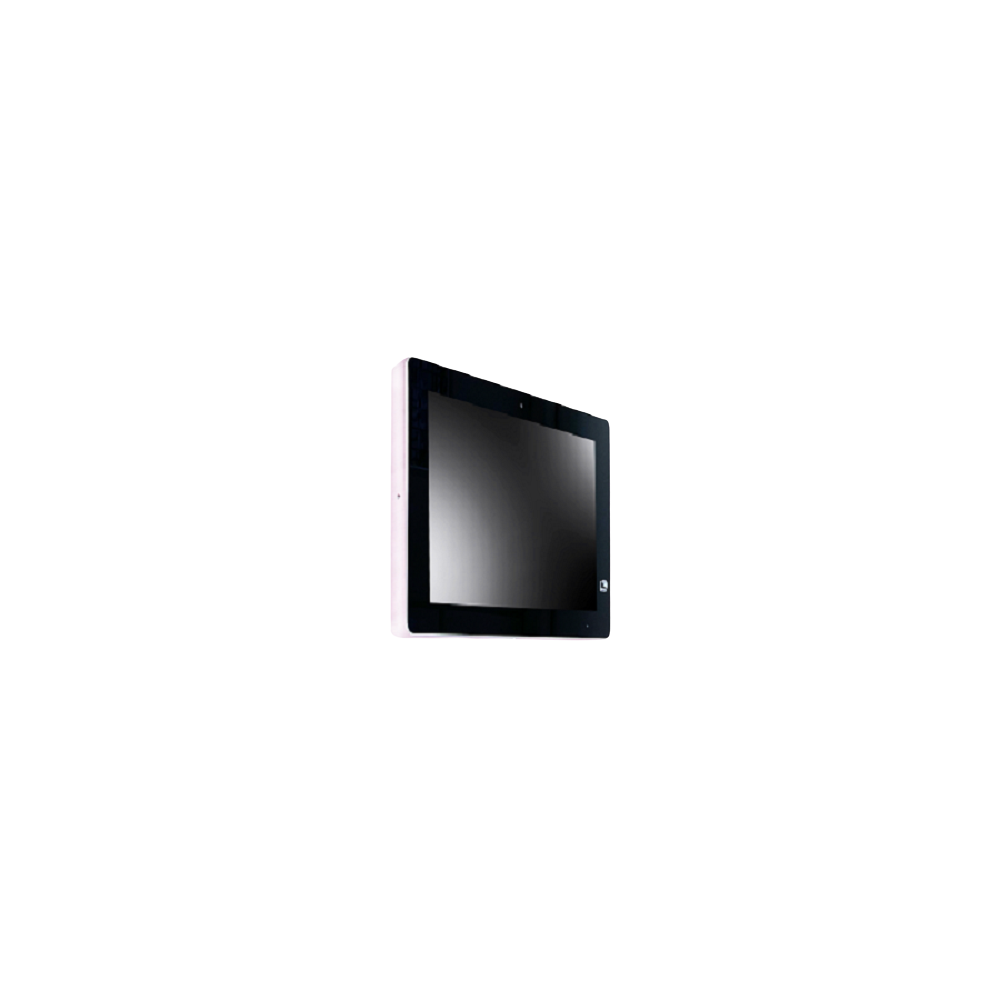

WTP-9K66-15-S2

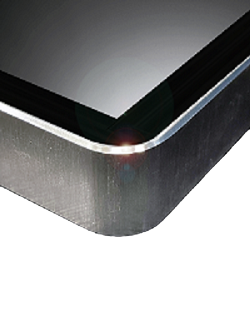

WTP-9K66-15-S3

Features

  • 15” Intel® Core™ Ultra 125U Fanless Stainless Panel PC
  • Bezel Free
  • TPM 2.0 on Board
  • IP66/69K Full Sealed with Anti-Corrosion Enclosure
  • Support Intel® vPro® Technology by CPU
  • Optional IP67 M12 Stainless Connectors
  • Optional Cable Gland for External I.O.
  • 100% Waterproof Guarantee
Datasheet
Documents & Downloads

Specifications

General
Model WTP-9K66-15
Main System
CPU / Graphic Intel® Core™ Ultra processors 125U, 15 W / Soc
RAM Dual Channel DDR4 3200 MHz ,2 x 260 SO-DIMM, up to 64GB
TPM TPM2.0
OS Support Optional Windows 10 (64 bit) / Windows 11 (64 bit)
Storage 1 x 2.5” SATA HDD drive bay (with anti-vibration mechanism)
1 x M.2 (Key M, 2242/2260/2280) with PCIex4 (Gen4) for SSD
Expansion 1 x M.2 (Key B, 3042/3052) with PCIex1, USB3.2, USB2.0 and SIM for 4G/5G
1 x SIM socket connected to M.2 key B
1 x M.2 (Key E, 2230) with PCIe, USB2.0 and CNVi for Wireless
Display Size 15” 4:3
Display 1024 x 768(XGA), 160(H) / 150(V), 350 nits (Typ. Center point), CR:800 : 1 (Typ)
Touch Screen Full Flat Resistive touch / Light Transmission: 80 ± 5% / Hardness: ≧3H / Lifetime: 35M times / Touch Mode: Normal mode
Full flat P-Cap touch / Light Transmission: ≧86% / Hardness:≧7H / Lifetime: 100M times / Touch Mode: Normal / Glove / Water mode
I.O. Ports
Configuration STD. (M12 Connector)
USB 1 x M12 8pin for USB 2.0 1/2
2 x USB 3.2 Gen2 (Type-C, Support DP1.4a display output)
COM
2 x M12 8pin for COM 1 & COM2 / RS-232/422/485
LAN 1 x M12 8pin for LAN 1
Audio N.A.
Video N.A.
Control Key Rear bottom: Power on /off; 1 x M12 5pin DC Power Connector
Mechanical and Environmental
Cooling Fanless
DC in 1 x DC-In connector, DC 12~28V
Power Adapter AC 100 ~ 277V / 47 ~ 63 Hz / DC output 24V, 5A, 120W, IP68
Temperature
Operating Temperature
24V DC Input 0~40℃ (IEC60068-2-56, air flow cooling, HDD)
24V DC Input 0~50℃ (IEC60068-2-56, air flow cooling, SSD)
Storage Temperature -20~60℃
Humidity Operating & Storage: 10 ~ 90%, non-condensing
IP Rating / Housing IP66, NEMA4X , IP69K/ SUS304 stainless steel enclosure, chassis type
Dimensions (Net) 395 mm (H) x 309.5 mm (V) x 58 mm (T)
Weights (Net) tbd kg
Mounting VESA 100*100, side mount (M6*2)
Certification CE (EMC) / FCC-B / VCCI Class B, Canada ICES-003

Options & Customized

Major Options
Options
  1. Full flat PCT touch screen IP69K
  2. IP67 (STD M12 type)
  3. 2.5” SSD
  4. M.2 SSD (128G)
  5. Wireless or Wireless and BT kit (easy clean and Robust Antenna)
  6. 2 External LAN (USBx2, LANx2, COMx1)
  7. 2nd Storage for RAID 0,1
  8. SUS316 Enclosure
  9. M12 (female) to M12 (male) DC power extension cable (2 meters length)
  10. M12 (female) to stripped and tinned wires DC extension cable (1.2 meters length)
  11. Waterproof type C cable, cable length is 1 meter
  12. Wall mount
  13. Table mount bracket (For Type C / RFID)
Accessory
  1. Waterproof USB cable, cable length is 2 meters
  2. Waterproof LAN cable, cable length is 2 meters
  3. Waterproof COM cable, cable length is 2 meters
  4. DC input cable
Customization
  1. Sunlight readable optical bonding
  2. Roof for UV protection and sunlight readable
  3. 1000 nit high brightness LCD
  4. COM + Power 5V or 12V
  5. Intel® i3-1215UE, DC, 3.3GHz
  6. Intel® i7-1265UE, DC, 3.5GHz
  7. WDT AP/API
  8. Stainless M12 connector
