WTPE-9H66-22W

Raptor Lake 21.5"

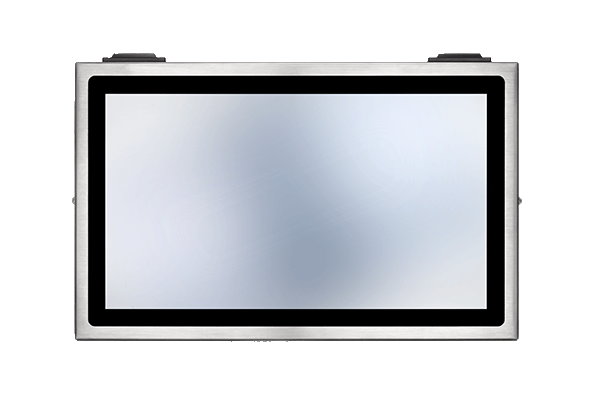

WTPE-9H66-22W-Front

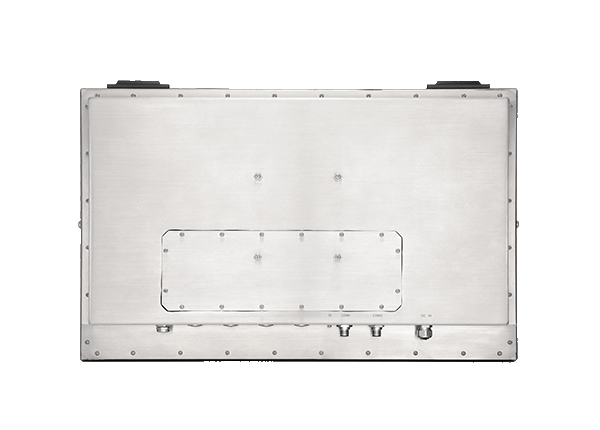

WTPE-9H66-22W-Back

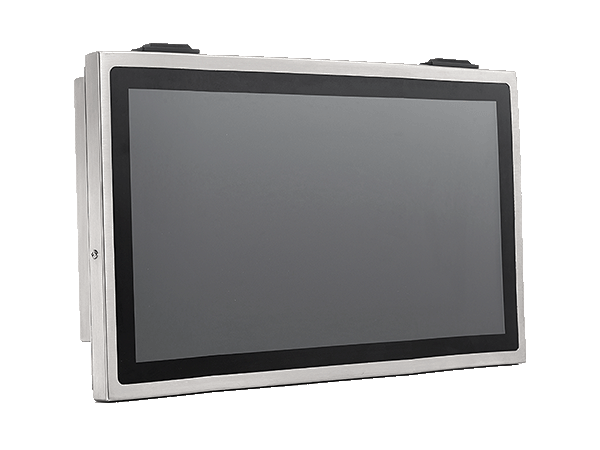

WTPE-9H66-22W-Side

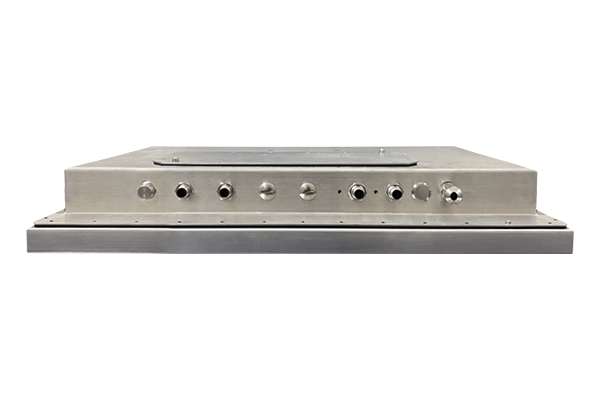

WTPE-9H66-22W-IO

Features

  • Class 1 Division 2, ATEX Zone 2, IECEx & EMC Class B Certified
  • Intel®13th Gen. Core i5 / i7 Processor
  • 21.5” Fanless Panel PC for Wide Temp -20~60°C Environments
  • LAN USB COM M16 (EX ic) Cable Gland & Waterproof M12 USB COM (EX ic) Connector
  • Connector Panel for Easy Cable Installation
  • Totally Sealed IP66 / NEMA 4X Enclosure
  • 100% Water/Dust Proof Guarantee
Datasheet
Documents & Downloads

Specifications

General
Model WTPE-9H66-22W
Main System
CPU / Chipset FCBGA1356 13th generation Intel®Core i5 / i7 processor (15W max.) / Soc
Graphic Intel®integrated Iris Xe Graphics
RAM Two 5200 MHz DDR5 SODIMM socket support dual Channel, non-ECC, up to 64GB
OS Support Windows 10 IoT Enterprise LTSC / WIN 11 IoT Enterprise LTSC
Storage 2.5” SATA drive bay x 1
Expansion M.2 Type E x 1
Display Size 21.5” 16:9
Display 1920 x 1080 (FHD), 178(H) / 178(V), 250 nits (Typ. Center point), CR:5000 : 1 (Typ)
Touch Screen Full Flat Resistive touch / Light Transmission: 80 ± 5% / Hardness: 4H / 490,000 hours
I.O. Ports
Configuration A B/C* D
Swappable M12, 8pin (I.S. Output, Support EX ic, Extension Cable to Ex ic Devices) COM X 2 for RS232 USB2.0 X 1
COM X 1 for RS232		 USB 2.0 X 2
Cable Gland M16 (Max. Output x 4, Must be Installed by User) USB 2.0 X 2 (EX ec)
LAN X 2 (EX ec, i219LM for Vpro)
COM X 1 for RS232/422/485 (EX ec)
Mechanical and Environmental
Cooling Fanless
Power Input / Consumption DC 24V Input, M16 (EX ec, Must Be Installed by User)
Power Adapter 100W AC-DC power adapter with 24V DC output, 1.2M cable, PSE
Temperature Operating Temperature: -20~60℃ (IEC60068-2-56, air flow cooling)
Storage Temperature: -20~60℃
Humidity Operating & Storage: -10 ~ 90%, non-condensing
IP Rating / Housing IP66, NEMA4X / SUS304 stainless steel enclosure, chassis type

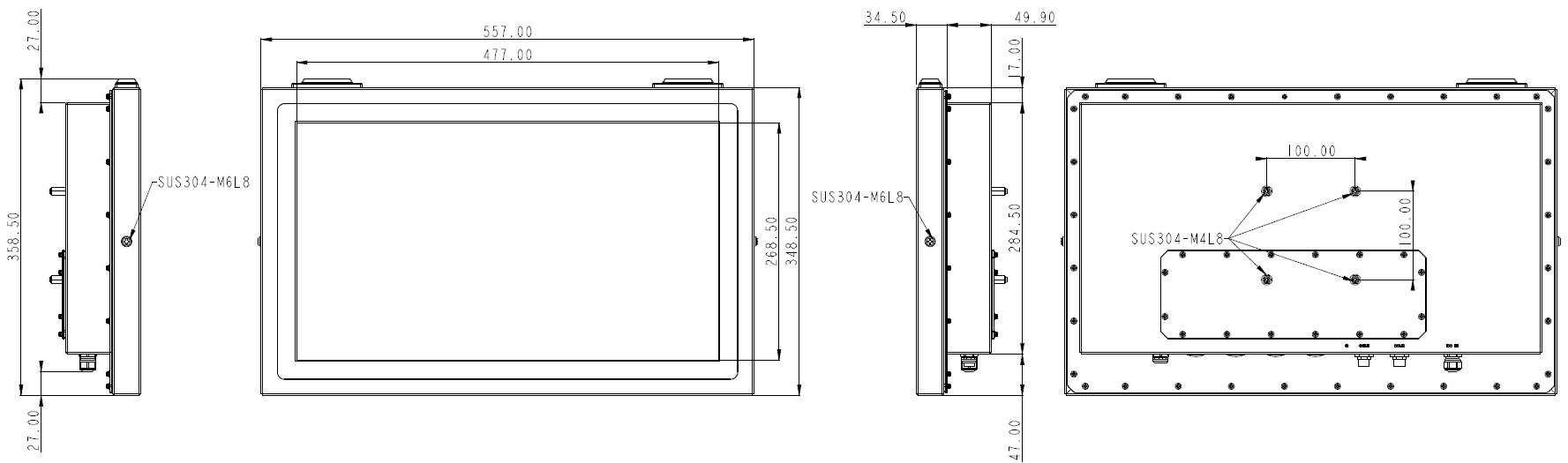

Dimensions (Net) 557 x 348.5 x 84.5
Weights (Net) 13 kg (w/o power adapter/battery pack)
Mounting VESA 100, side mount (M6*2)
Certification EMC: FCC, CE (EMC), VCCI Class B, Canada ICES-003, Safety: IEC-62368
IECEx, Class 1 Division 2 Group A, B, C, D T4 (Config. A, B/C, D)
ATEX Zone2 EX II 3G Ex ic ec IIC T4 Gc IP66
Class 2 Division 2 Group F, G (configuration A B/C, D)
ATEX Zone22 EX II 3D EX tc IIIC T135C Dc IP66 (compliance)

Options & Customized

Major Options
Options
  1. WLAN + Bluetooth module (Wifi-7)
  2. Windows 10 IoT Enterprise LTSC / WIN 11 IoT Enterprise LTSC
Accessory
  1. COM extension cable kit through M16 cable gland (2 meter length, external 9pin male type) (cable kit must be installed by user)
  2. USB2.0 extension cable through M16 cable gland (2 meter length, external female type A) (cable kit must be installed by user)
  3. LAN extension cable through M16 cable gland (2 meter length, external female RJ45 type) (cable kit must be installed by user)
  4. Swappable M12 COM extension cable (2 meter length, M12 to PPC, external 9pin male type) (for configuration A, B/C)
  5. Swappable M12 USB2.0 port extension cable (0.3 meter length, M12 to PPC, external female type A connectors) (for configuration B/C, D)
  6. Swappable M12 DC power extension cable (1.2 meter length, M12, stripped and tinned wires on opposite end to DC 24V output power supply)
Customization
  1. Kit to support over 100 meter power supply length
  2. Panel mounting by bezel kit (not co-exist with wireless function)
  3. 50 meter DC cable to support 50 meter power length
  4. 100 meter DC cable to support 100 meter power length
  5. Wall mount / Table mount bracket
