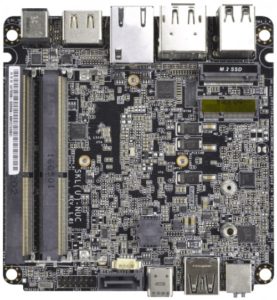

WUX-7100U

Intel® kaby Lake -U Core-i Processor based 4×4-inch mini PC Board with DDR4 SDRAM, Gigabit Ethernet, M.2(E & Mkey)socket, one SATAports and 12V or19V DC input

Features

  • Supports Inte Kaby Lake-U Core-i processor
  • Supports DD4-2133 non-ECC SDRAM on two SODIMM slots, up to 32GB
  • Supports displays including DP and two HDMI® up to UHD resolution
  • Supports two M.2 (E & M Key)slot, one for SSD ,one for Wireless
  • Supports 12V or 19V DC power input

Description

WUX-7100U builds on Intel® Kaby Lake-U Core-i processor(SoC)support dual channel DDR4 . Support one GigabitEthernet two M.2 sock(one Key E for Wireless,one Key M for SSD), and voltage of power input from 12V or 19V.

Ordering Guide

Ordering Guide
ABC-3 64 (R).WUX-7100U
Intel Core i3-7100U Processor w/ DDR4/USB3.0/Dual HDMI®/DP/LAN/Audio

Documents & Downloads

  Catalog   WUX-7100U | Catalog    March 30, 2021
1.47 MB 1845 Downloads
