Preliminary

NVIDIA® Jetson AGX Orin SOM; 32GB/64GB LPDDR5; 64GB eMMC, M.2 (NVMe SSD); 1GbE, 10GbE; HDMI® ; USB 3.2 TypeA, USB 3.2 Type C; PCIe Gen4x8; M.2 (WiFi/BT); Isolated Serial ports; GMSL2 Camera (Optional)
SMARC 2.2 Compliant module (82 x 50 mm) powered by Intel®Alder Lake-N, Amston Lake (Atom® x7000RE), and Twin Lake (Core Processor N) Series SoCs, featuring onboard LPDDR5 SDRAM
Intel®Wildcat Lake; LPDDR5, UFS 3.1; dual HDMI®/eDP; 2.5GbE; USB 3.2, USB 2.0; M.2 E-Key; TPM, GPIO, I2C/SMBus, Smart FAN
NVIDIA Jetson Orin AI module; 2x 2.5GbE RJ45 with PoE+; 1x M.2 Key-M 2242/60 (PCIe x4); OCP design based
Intel®PTL-H; 4P+8E+4LPE; 12Xe GPU (120 TOPS), NPU 5 (50 TOPS); 2x DDR5 SO-DIMM to 128GB IBECC; 12 PCIe Gen4 lanes; USB3.2, SATA, DDI, eDP/LVDS; MIPI-CSI

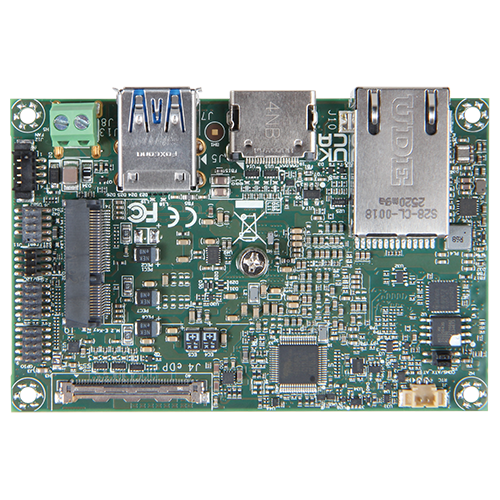

Supports Twin/Amston Lake platform, up to 16GB DDR5, triple display via HDMI®/DP/LVDS, dual 2.5GbE, 4x USB 3.2 Gen2, M.2 E/B Key expansion, and onboard TPM 2.0 for enhanced security.
