WEBS-13D1

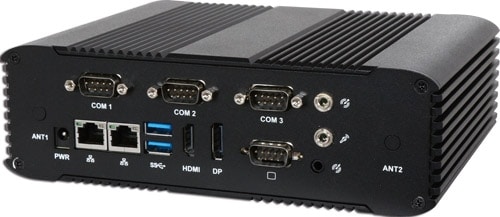

Embedded Rugged Fan-less System with Intel® Atom® E3900 Series based 3.5” ECX Board

Features

  • Support Intel® Apollo Lake series processor
  • Support DDR3L-1866/1600 non-ECC SDRAM
  • Support dual displays including DP and HDMI®
  • Support Mini-PCIe / mSATA (Dual Mini-PCIe socket)
  • Support 4x COM ports( 1x RS-232/422/485)
  • 2x Antenna hole for WiFi or 3G/GPS module to use

The WEBS-13D1 adopts Intel® Atom® Dual/Quad Core™ processor E3900 series and takes its advantages to develop Portwell Design of that the CPU/chipset on the backside of the board is good for system thermal design. The perfect thermal solution can easily solve the thermal of CPU. The external power switch is an another plus factor. The WEBS-13D1 is a great platform for kiosk, digital signage, and automation applications.

Specification

Model WEBS-13D1
M/B PEB-2773
Form Factor 3.5″ ECX
System
CPU Intel® Atom® Dual/Quad Core E3900 Series Processor
Chipset Intel® SoC
BIOS AMI UEFI
Memory DDR3L/8GB
Graphic Controller Intel® Gen 9 Graphics
Audio Codec ALC892
Super I/O EC ITE IT8528 + Fintek F81216
Storage 1x 2.5” SATA HDD/SSD 1x mSATA
External I/O
Serial 1x RS-232/422/485 3x RS-232
USB 2x USB3.0 ports on Rear I/O 4x USB3.0 ports on Front I/O
Display HDMI®, DP
Ethernet Intel® I210IT x 2
PS/2 N/A
Audio Line-out, Line-in, Mic-in
D I/O 8-bit Digital I/O
Expansion 2x Mini-PCIe socket
PWR
System DC 12V ~ 24V
Environment
OP Temp. -20°C ~ 60°C
Storage Temp. -40°C ~ 80°C
Humidity 95%@40°C, non-condensing
Vibratoin 5Grms/10-500Hz
Shock 50G, 11 msec
Mechanical
Dimension(WxDxH) 200 × 150 × 80 mm
Weight 2 Kg
Mounting Wall, Panel mounting

Ordering Guide

AS5-3523 (R).ATO. WEBS-13D1. 3.5” System
