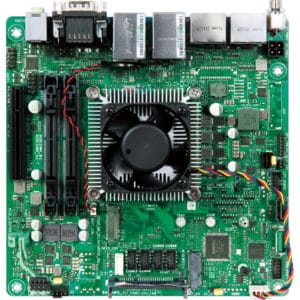

WADE-7220-R2314

AMD Ryzen™ Embedded R2314 APU based Mini-ITX Board with DP, Dual GbE, USB 3.2 Gen2,  SATA III, M.2, CFAST

Features

  • AMD Ryzen™ Embedded R2314 APU
  • Two SO-DIMM support DDR4 DRAM up to 32GB
  • Support dual Ethernet, 6x COM Ports
  • Support 2x USB 3.2 Gen2, 1x USB 3.2 Gen1, 4x USB 2.0, 1x SATAIII port
  • Supports 1x PCIe Gen3 x8, 1x CFAST, 2x M.2 socket (Key M & Key E)

Description

WADE-7220-R2314 is based on AMD RyzenTM R2314 APU. With dual channel DDR4 SO-DIMM memory and rich I/ O sets, the Portwell WADE-7220-R2314 Mini-ITX embedded board empowers energyefficient solutions for industrial automation applications.

Specification

GENERAL
GENERAL
Processor AMD Ryzen™ Embedded R2314 APU, 2.1 GHz (3.5 GHz turbo), 15W(12-35W) TDP
Chipset N/A
BIOS AMI uEFI BIOS
Memory
  • Support 2x SO-DIMM sockets
  • Up to 32GB DDR4 2667 MHz memory
  • Support ECC
Storage Devices 1x SATAIII ports
Watchdog Timer Programmable watchdog timer
Hardware Monitoring Temperature (CPU & System)
Expansion Interface
  • 1x PCIe x8 Gen 3
  • 1x M.2 Key E 2230 with PCIe x1 and USB 2.0 for Wireless
  • 1x M.2 Key M 2242/2260/2280 with PCIex2 and SATA signal for SSD
  • 1x CFAST*

*If CFAST is enabled, M.2 SATA will be disabled, and vice versa. You may configure this setting in the BIOS.



I/O INTERFACE
I/O INTERFACE
Audio
  • Intel® High Definition Audio interface Realtek® ALC897 High Definition Audio
  • Audio jack support Line-out/Mic-in
  • 2x 2W Stereo Speaker output
  • 1x 5.1 channel internal pin header
Ethernet 2x RJ45 connectors on rear I/O (Realtek® RTL8111H)
Serial port
  • 2x RS232/422/485 port on rear I/O
  • 4x RS232 ports on pin header
USB
  • 2x USB 3.2 Gen2 on rear I/O
  • 2x USB 2.0 on rear I/O
  • 1x USB 3.2 Gen1 Type A vertical connector
  • 2x USB 2.0 on pin header
GPIO 8-bit GPI/GPO



DISPLAY
DISPLAY
Graphic Controller AMD Radeon Vega 6 Graphics
Display Interface
  • DP1: resolution up to 3840×2160
  • DP2: resolution up to 3840×2160
  • DP3: resolution up to 3840×2160
  • DP4: resolution up to 3840×2160



Mechanical & Environment
Mechanical & Environment
Dimension 170mm(L) x 170mm(W)
Power Supply 12~24V DC in (1 x external DC jack; 1 x internal 4 pin power connector
Environment
  • Operation Temperature: 0°C to 60°C
  • Storage Temperature: -20°C to 80°C
  • Relative Humidity: 10% to 95%, non-condensing
MTBF Over 100,000 hours at 40°C

Ordering Guide

AB1-3R27 (R).WADE-7220-R2314.
Mini-ITX ESB.AMD Ryzen Embedded R2314 w/DDR4/DP/dual GbE LAN/SATA

Packing List

Packing List

One WADE-7220-R2314 motherboard with Cooler

One I/O shield
One SATA cable
