PCOM-B655VGL

Intel® Comet Lake-S Core™ Processor based on Type VI COM Express module with dual DDR4 SO-DIMM, DDI, LVDS, VGA, Gigabit Ethernet, SATA III, and USB 3.2 Gen2

Features

  • Intel® Core™ i9/i7/i5/i3 14nm process(Comet Lake-S)
  • Support 2x DDR4-2933 Non-ECC/ECC SO-DIMMs, up to 2x 32GB
  • Support USB2.0/3.2 Gen2, 4x SATAIII, 1x PCIe 3.0 x16, and 8x PCIe 3.0 x1
  • Support LVDS, VGA, and 3x Display port/HDMI®

Description

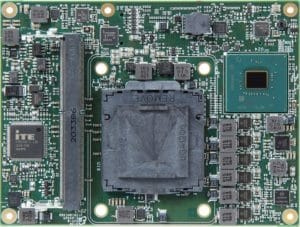

PCOM-B655VGL is Intel® Comet Lake-S platform COM Express module. It is compatible with COMe 3.0 Type 6 carrier board. The desktop CPU on module offers customer higher computing power but lower cost comparing to mobile solutions. PCOM-B655VGL supports both ECC and Non-ECC DDR4 by different PCH SKUs(Q470E/W480E), which can be adapted to different applications. This module provides one PCIex16, eight PCIex1 (Option to one PCIex4), four USB 3.2 Gen2, and four SATA III.

Specification

Specifications
Model Name PCOM-B655VGL
Form Factor (mm) COM Express® Basic (125 x 95mm)
COM Type Type 6
CPU/Clock/Cache Intel® 10th Generation Core™ 35W Desktop processor*
Intel® i9-10900TE
Intel® i7-10700TE
Intel® i5-10500TE
Intel® i3-10100TE
Up to 10 CPU cores*
6MB to 20MB cache*
Chipset Q470E/W480E
Memory DDR4 2933MT/s*
Non-ECC/ECC*
Dual Channel*
USB 4x USB 3.2 Gen2
8x USB 2.0
PCI Express 1x PCIe 3.0 x16
8x PCIe 3.0 x1
Ethernet Intel® I219LM
Sound Intel® High Definition Audio
Graphic Controller Intel® UHD Graphics 630*
Carrier Board PCOM-C60B (Type 6)

Block Diagram

Ordering Guide

Ordering Guide
Product Ordering P/N Status
PCOM-B655VGL-W480E AB1-3K44 Contact us
PCOM-B655VGL-Q470E AB1-3K80 Contact us

Accessory

Accessory
Accessory Ordering P/N Status
PCOM-C60B(ATX Carrier Board) AB1-3G22Z Contact us
Cooler B9971950 Contact us
