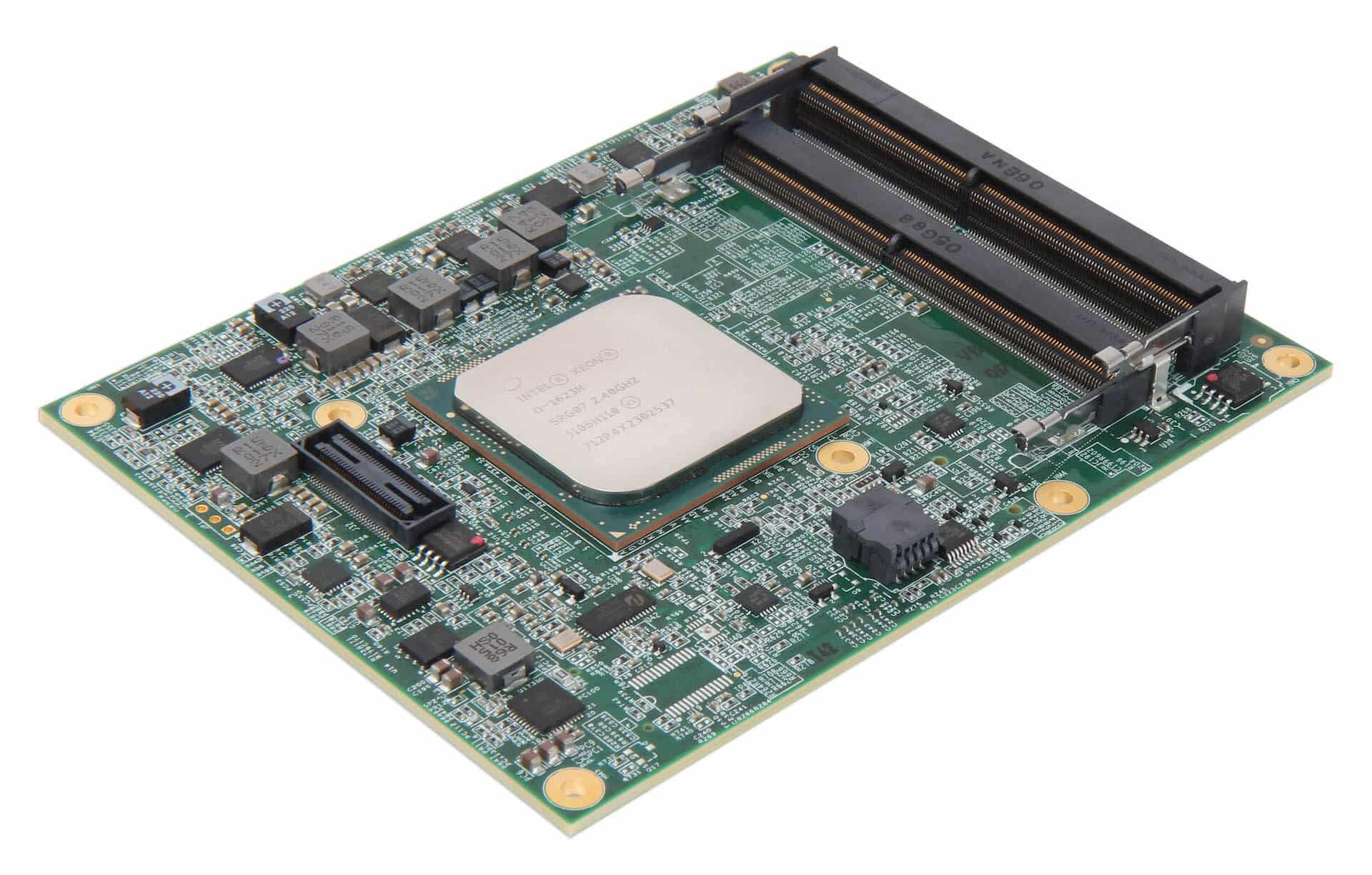

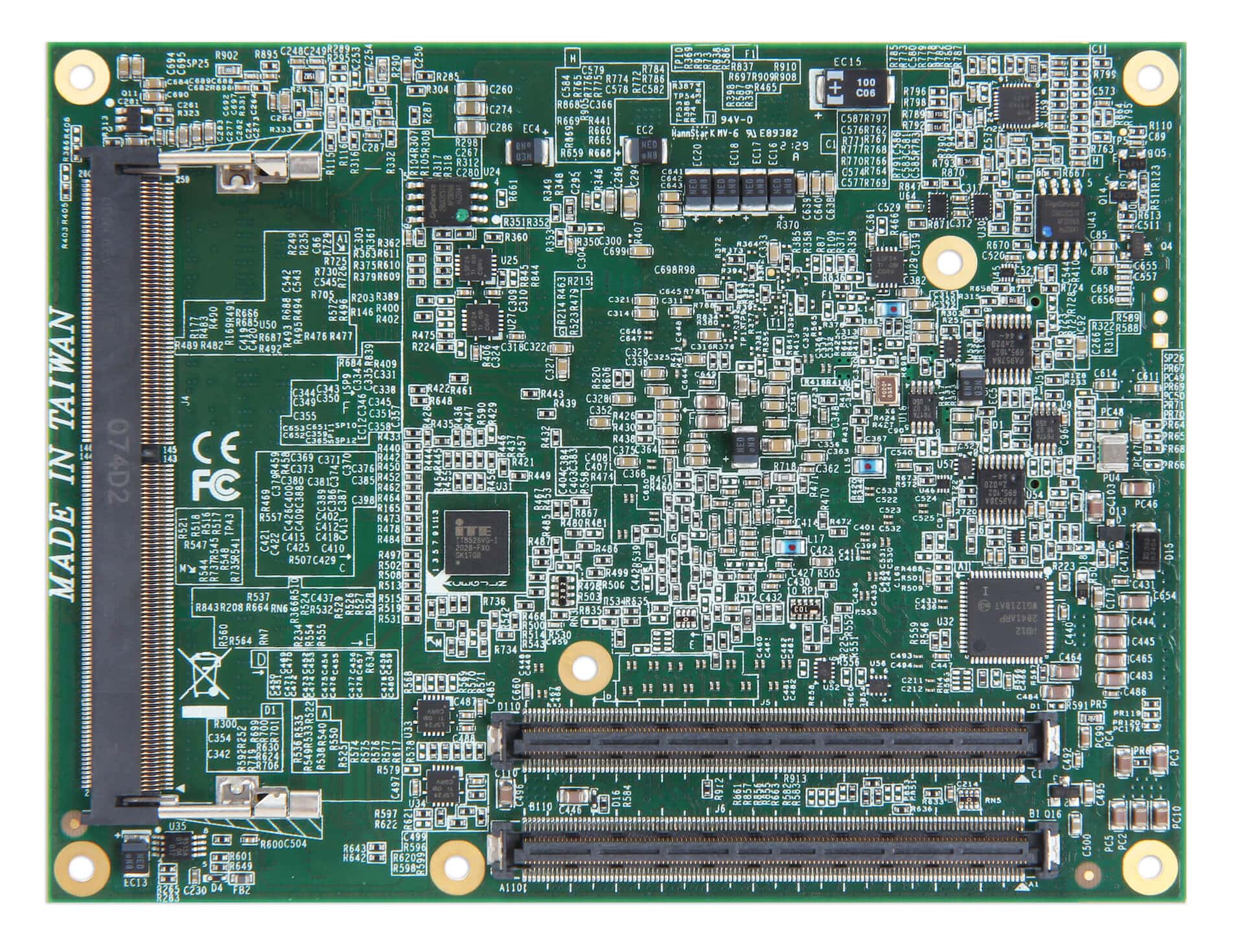

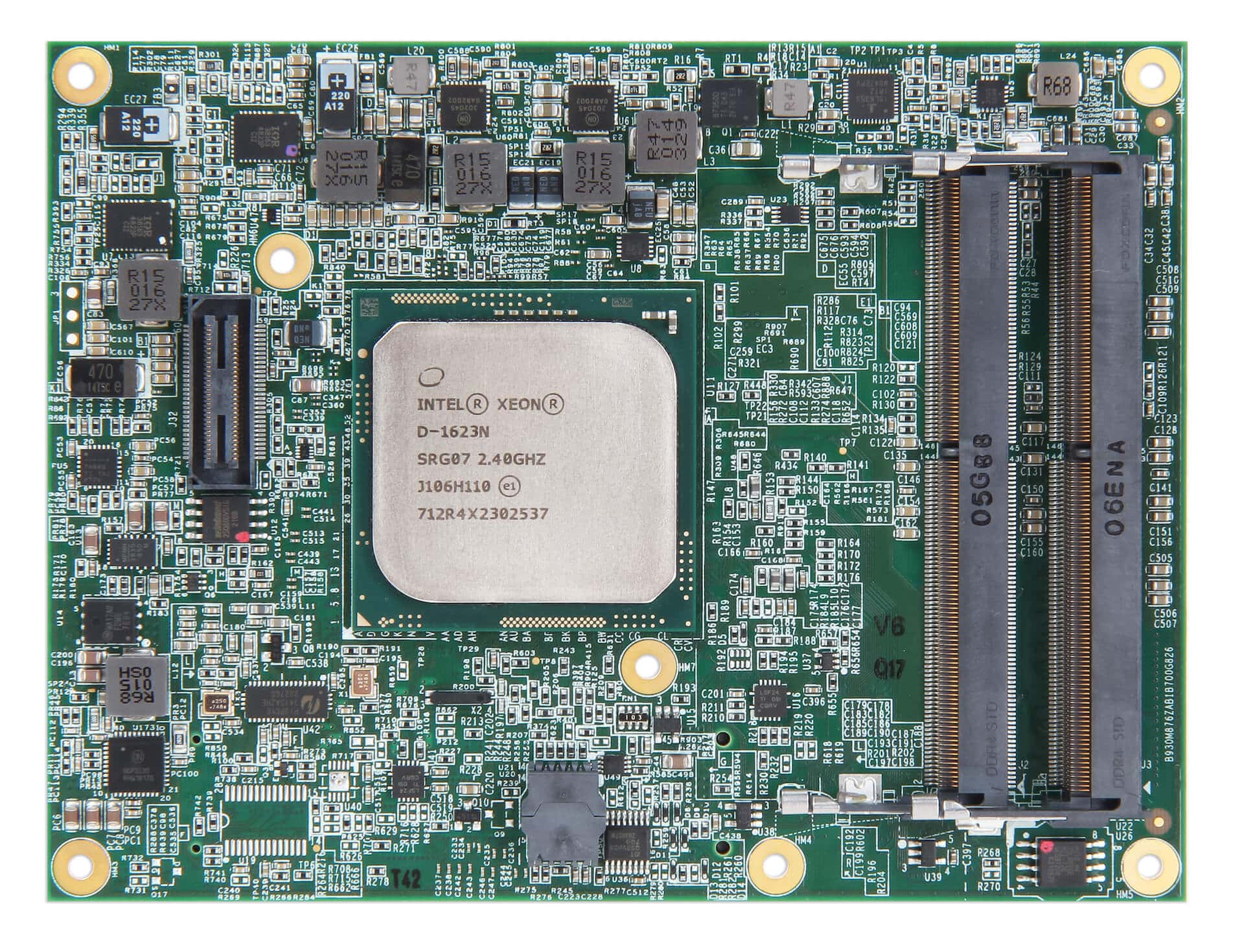

PCOM-B700G-NS

Intel® Xeon® D-1600 series SoC based on Type 7 Basic COM-Express® module

Features

  • Intel® Xeon® D-1600 Series Processor (Hewitt Lake)
  • 3x DDR4 SO-DIMM
  • TDP 35w to 45w consumption
  • Selected SKU support -40°C to 85 °C wide temperature
  • Support Intel® QuickAssist Technology (Intel® QAT)

Description

PCOM-B700G-NS, a Type 7 COM Express® basic size(125 x 95 mm) module which based on Intel® Hewitt Lake Xeon® D-1600 series processors. In this architecture, it could provide up to 8 cores and up to 16 threads processors within the TDP from 35w to 45w, and 4x 10G KR ports and up to 30 Gbps of cryptography offload with Intel® QuickAssist Technology (Intel® QAT), it’s also extending 24x PCIe 3.0 and 8x PCIe 2.0 lanes, 4x USB 3.2 Gen1, and 2x SATA III ports. A selected SKU (D-1649N) support wide-temperature range. PCOM-B700G-NS offer an effective upgrade path for solutions already using the previous D-1500 COM Express modules. Portwell want to promotes PCOM-B700G-NS as vertical solution to aim in the different versatile applications, such as edge computing, automation, military, transportation and so on.

Specification

Specification
Model Name PCOM-B700G-NS
Form Factor (mm) COM Express® Basic (125 x 95mm)
COM Type Type 7
CPU/ Clock/ Cache Intel® Xeon® Processors Intel® Xeon® D-1649N Intel® Xeon® D-1633N Intel® Xeon® D-1623N Intel® Xeon® D-1627 Up to 8 CPU cores 6MB to 12MB cache
Chipset SoC
Memory DDR4 1866/2133/2400 MT/s Non-ECC/ECC Dual Channel
USB 4x USB 3.0/2.0
PCI Express 24x PCIe 3.0 8x PCIe 2.0
Ethernet 4x 10G KR 1x GbE LAN
Intel® QAT (Gbps) Up to 20Gbps
Sound N/A
Graphic Controller N/A
Carrier Board PCOM-C701-BMC(Type 7)

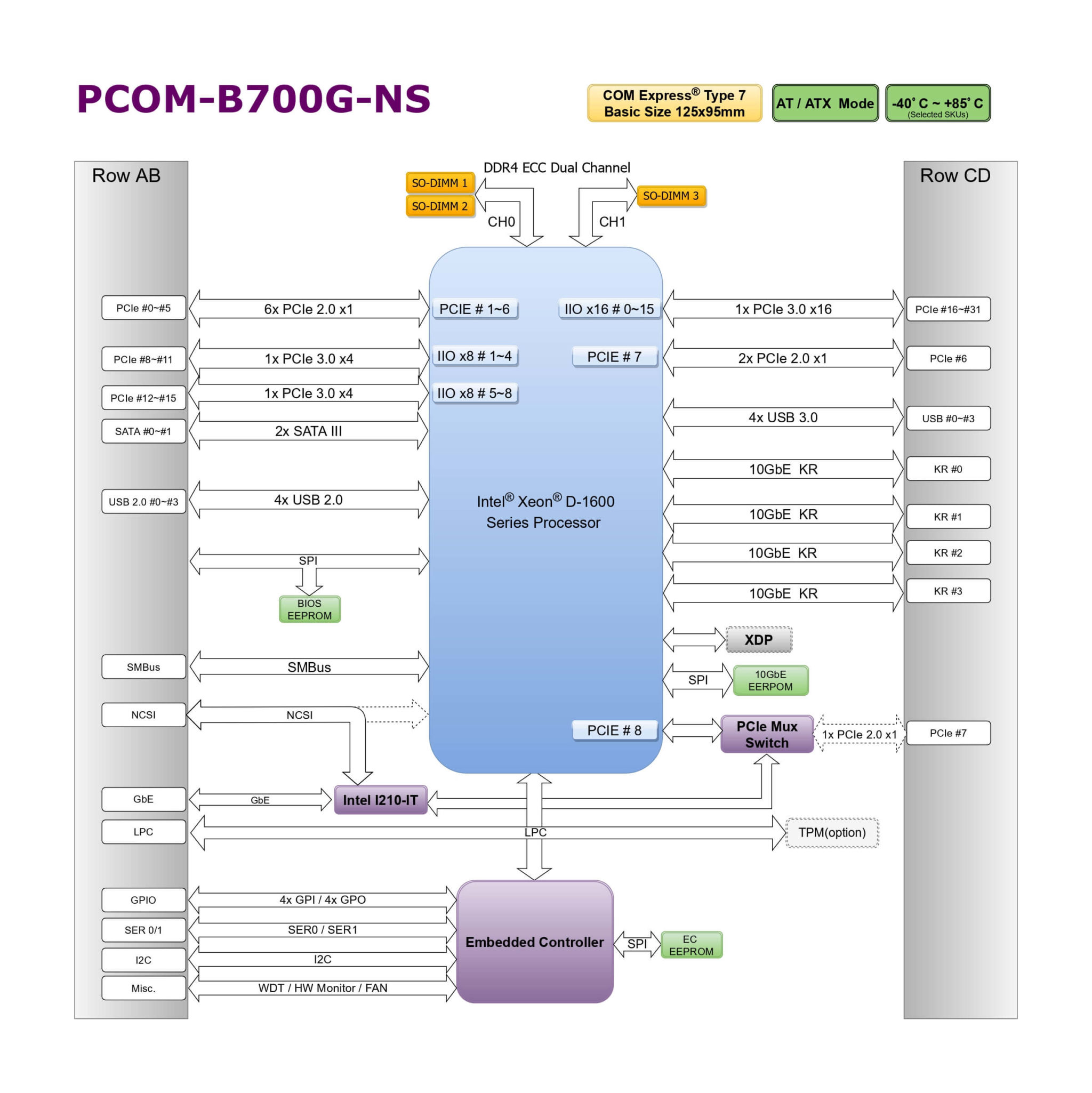

Block Diagram

Ordering Guide

Ordering Guide
Product Ordering P/N Status
PCOM-B700G-NS-D1649N AB1-3K99 Contact us
PCOM-B700G-NS-D1633N AB1-3L02 Contact us
PCOM-B700G-NS-D1623N AB1-3L00 Contact us
PCOM-B700G-NS-D1627 AB1-3L01 Contact us
PCOM-B700G-NS-D1649N-WT (Wide temperature) AB1-3L89 Contact us

Accessory

Accessory
Accessory Ordering P/N Status
Cooler B9972000 Available
Heat Sink B830B350 Available
Heat Spreader B830B360 Contact us

Support

(Documents & Downloads)

  Catalog   PCOM-B700G-NS | Catalog 20220217   September 27, 2021

Intel® Xeon® D-1600 series SoC based on Type 7 Basic COM-Express® module

815.5 KB 4438 Downloads
      BIOS   BIOS_PCOM-B700G-NS-D1627_0_0_12.zip | BIOS 0.0.12   August 22, 2023
    9.45 MB 123 Downloads
        User’s Manual   Manual_PCOM-B700G-NS_R0.3.pdf | Manual R0.3   January 17, 2024
      1.03 MB 20 Downloads
        Carrier design guide   Carrier design guide_PCOM-B700G-NS_R1.0.pdf | Manual R1.0   April 8, 2022

      Carrier design guide for PCOM-B700G-NS, the first release version.

      2.9 MB 1641 Downloads
