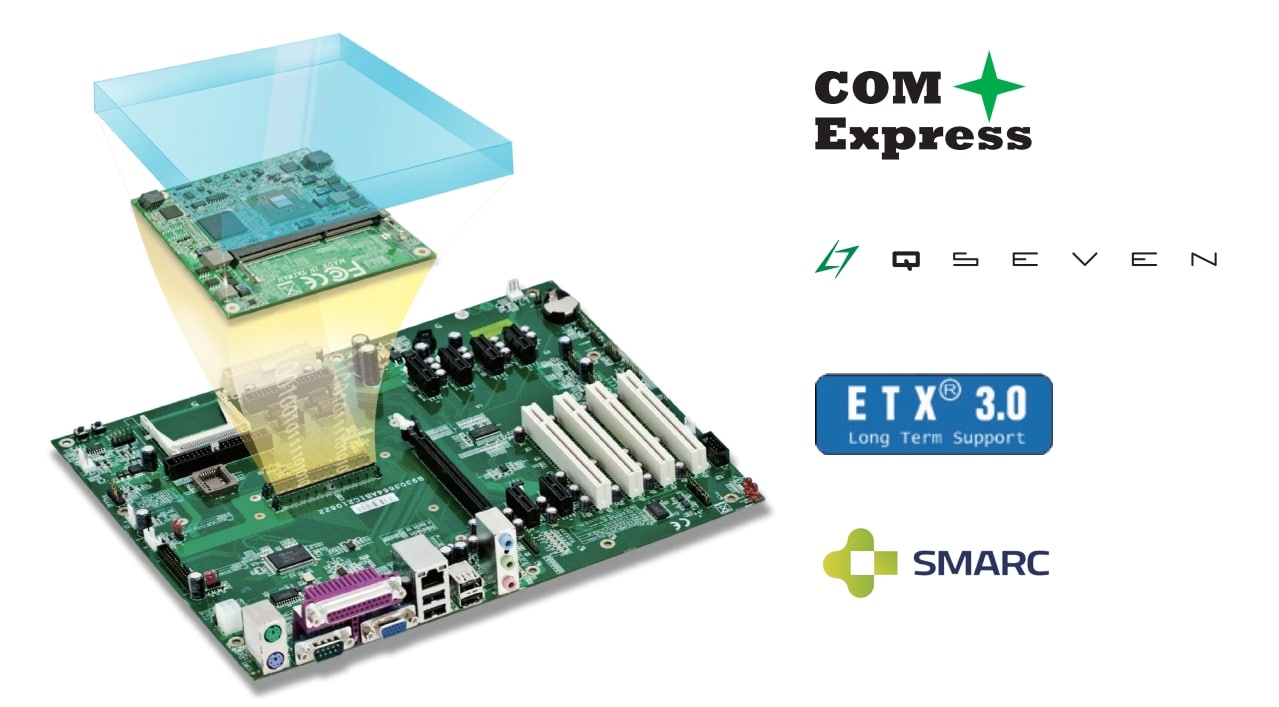

COM Express ^®

COM Express defines standardized form factors and pinouts for Computer-on-Modules

The standard includes the mini form factor (84 x 55 mm), the compact form factor (95 x 95 mm), and the basic form factor (125 x 95 mm)

PCOM-B646

COM Express^® Type6 Compact size module with Intel Atom^® x7000E/RE Series SoC DDR5 SO-DIMM, DDI, PCIe Gen 3, USB 3.2 Gen2, 2.5 Gigabit TSN Ethernet, discrete TPM 2.0, eDP, SATA

PCOM-BA03

Intel^® Atom^® x7000 series SoC based on Type 10 mini COM-Express^® module with LPDDR5 SDRAM

PCOM-B707GT

COM Express Type 7 Basic Module based on Intel^® Xeon^® D-1800 Processors with Two Channels and Two SO-DIMM slots.

PCOM-B702GT

Intel^® Atom^® C3000/C3000-Refresh series SoC based on Type 7 Compact COM-Express^® module with up to Dual Channels and 2x DDR4 ECC SO-DIMM Socket

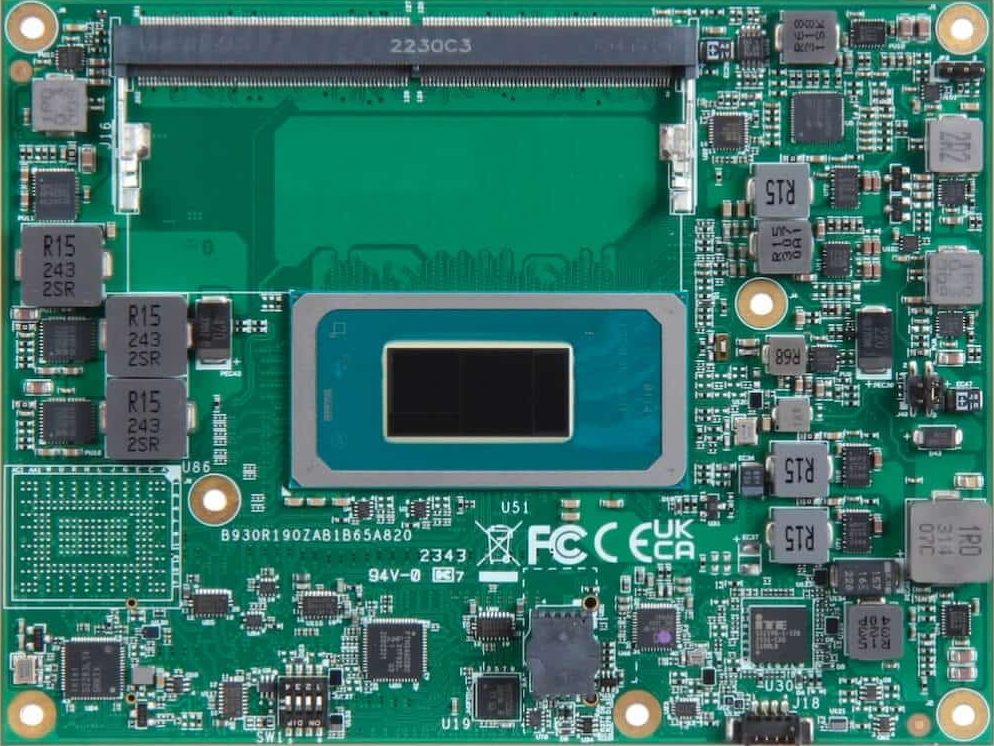

PCOM-B65A

COM Express Type 6 Basic size module with Intel New Gen Core Ultra Series Processor DDR5 SO-DIMM, DDI, PCIe Gen 4,USB 3.2 Gen2, 2.5 Gigabit TSN Ethernet, discrete TPM 2.0, eDP, SATA

PCOM-B659

COM Express Type6 Compact size module with Intel^® 13^th Gen P/U Processor DDR5 SO-DIMM, DDI, PCIe Gen 4, USB4, USB 3.2 Gen2, 2.5 Gigabit TSN Ethernet, discrete TPM 2.0, eDP, SATA

PCOM-B706GT

COM-Express^® Type 7 Basic module with AMD^® Embedded Ryzen™ V3000 CPU Family equipped on-module NVME SSD

PCOM-B705GT

COM Express Type 7 Basic Module based on Intel^® Xeon^® D-1700 Processors with Three Channels and Four SO-DIMM slots

PCOM-B658VGL

COM Express Type6 Basic size module with Intel^® 13^th Gen H Processor DDR5 SO-DIMM, DDI, PCIe Gen 4, USB 3.2 Gen2, 2.5Gb Ethernet, discrete TPM 2.0, eDP, SATA

PCOM-C605R

Mini-ITX size carrier board for COM Express Type6 module

PCOM-CA00

Micro-ATX Form Factor Evaluation Carrier Board For Type 10 COM Express@ Rev 3.0 Module

PCOM-B657VGL

COM Express Type-VI Basic module with Intel^® 11^th Gen H Processor with DDR4 SO-DIMM, DDI, PCIe Gen 4.0, USB 3.2 Gen2x1, 2.5 Gigabit TSN Ethernet, discrete TPM 2.0, eDP/LVDS, SATA III and VGA

PCOM-BA02GL

Intel^® Atom^® x6000 series SoC based on Type 10 Mini COM-Express^® module with LPDDR4 SDRAM

PCOM-B645VGL

Intel^® Atom^® Elkhart Lake series SoC based on Type 6 Compact COM-Express^®module with 2x DDR4 SD-DIMM Socket

PCOM-BA00

Intel^® Atom^® E3800 series SoC based on Type 10 Mini COM-Express^® module with DDR3L SDRAM, NANDrive and USB 3.0

PCOM-BA01

Intel^® Atom^® E3900 series SoC based on Type 10 Mini COM-Express^® module with LPDDR4 SDRAM, eMMC and USB 3.0

PCOM-B641VG

Intel^® Atom^® Apollo Lake series SoC based on Type 6 Compact COM-Express^® module with 2x DDR3L SD-DIMM Socket

PCOM-B656VGL

Intel^® Tiger Lake-UP3 Core™ Processor based on Type VI COM Express module with dual DDR4 SO-DIMM, DDI, eDP, Gigabit Ethernet, SATA 3.0, and USB 3.2

PCOM-B655VGL

Intel^® Comet Lake-S Core™ Processor based on Type VI COM Express module with dual DDR4 SO-DIMM, DDI, LVDS, VGA, Gigabit Ethernet, SATA III, and USB 3.2 Gen2

PCOM-B654GL

Intel^® Coffee Lake-S Core™ Processor based on Type VI COM Express module with dual DDR4 SO-DIMM, DDI, LVDS, Gigabit Ethernet, SATA III, and USB 3.2 Gen2

PCOM-B653VGL

Intel^® Core™ Whiskey Lake-U i7/i5/i3 series processor based on Type 6 Compact COM-Express^® module with 2x DDR4 SD-DIMM Socket

PCOM-B700G-NS

Intel^® Xeon^® D-1600 series SoC based on Type 7 Basic COM-Express^® module

PCOM-B701GT

Intel^® Atom^® C3000/C3000-Refresh series SoC based on Type 7 Basic COM-Express^® module with 3x DDR4 ECC SO-DIMM Socket

PCOM-C605

Mini-ITX Form Factor Evaluation Carrier Board for Type 6 Com-Express^® Rev 2.1 Module

PCOM-C615 is PICMG 1.3 Full Size Form Factor Evaluation Carrier Board for COM Express® Revision 2.0 Type VI Module. PCOM-C615 follows standard PICMG 1.3 golden finger pin definition and let customer save system total cost for easily upgrading modules

PCOM-C60B

ATX Form Factor Evaluation Carrier Board for Type 6 Com-Express^® Rev 3.0 Module

PCOM-C701

ATX Form Factor Evaluation Carrier Board for COM Express Revision 3.0 Type VII Module with 4x 10GbE Support with Inphi CS4227 PHY

PCOM-B642VG

Intel^® 7^th Generaon Core™ Kaby Lake-S processors based on Type VI Compact-COM Express 2.0 module with DDR4 SDRAM on Two SO-DIMM slots, VGA, eDP, DP, Gigabit Ethernet, PCIE, SATA and USB

PCOM-B643VG

Intel^® Core™ 7^th Generaon Processor based on Type VI COM Express module with DDR4 SDRAM, VGA, LVDS, Gigabit Ethernet, SATA 3.0 and USB

PCOM-B638VG

Intel^® Core™ Kaby Lake-U/Skylake-U i7/i5/i3 series processor based on Type 6 Compact COM-Express^® module with 2x DDR4 SD-DIMM Socket

PCOM-B636VG

Intel^® AtomTM N3000 series based TypeVI COM Express with DDR3L SDRAM, VGA, LVDS, USB 3.0, PCIE and surround design.Intel^® AtomTM N3000 series based TypeVI COM Express with DDR3L SDRAM, VGA, LVDS, USB 3.0, PCIE and surround design.

PCOM-B635VG

Data protection is more and more important in real world since big data rising. Portwell adopt new Intel platform to provide highest secure logic. It help customer earn trust and business by securing important information anytime
