COM Express® Mini

COM-Express® Mini: COMe Mini form factor (84 x 55mm) and Type 10 pin-out.

COM Express Type 10

The Type 10 COM-Express Module pin-out definition in the mini form factor (84 x 55mm) is defined for low-power platforms to match the feature and performance requirements while maintaining the support of graphic and optimized I/O for small form factor or portable devices.
PCOM-BA00|COM Express Type 10

Intel® Atom® x7000 series SoC based on Type 10 mini COM-Express® module with LPDDR5 SDRAM

Intel® Atom® x6000 series SoC based on Type 10 Mini COM-Express® module with LPDDR4 SDRAM

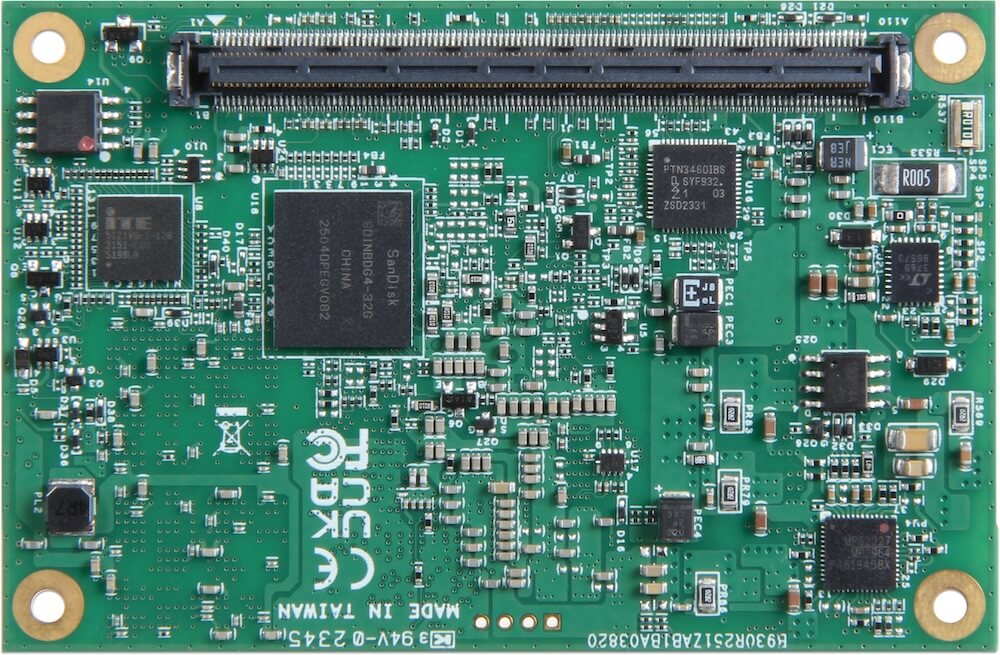

Intel® Atom® E3800 series SoC based on Type 10 Mini COM-Express® module with DDR3L SDRAM, NANDrive and USB 3.0

Intel® Atom® E3900 series SoC based on Type 10 Mini COM-Express® module with LPDDR4 SDRAM, eMMC and USB 3.0
