COM Express ®

COM Express defines standardized form factors and pinouts for Computer-on-Modules

The standard includes the mini form factor (84 x 55 mm), the compact form factor (95 x 95 mm), and the basic form factor (125 x 95 mm)

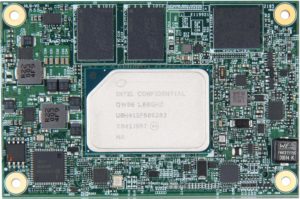

Intel Atom® x6000 series SoC based on Type 10 Mini COM-Express® module with LPDDR4 SDRAM
Intel Atom® Elkhart Lake series SoC based on Type 6 Compact COM-Express® module with 2x DDR4 SD-DIMM Socket
Intel Atom® E3800 series SoC based on Type 10 Mini COM-Express® module with DDR3L SDRAM, NANDrive and USB 3.0
Intel Atom® E3900 series SoC based on Type 10 Mini COM-Express® module with LPDDR4 SDRAM, eMMC and USB 3.0
Intel Atom® Apollo Lake series SoC based on Type 6 Compact COM-Express® module with 2x DDR3L SD-DIMM Socket
Intel®Tiger Lake-UP3 Core™ Processor based on Type VI COM Express module with dual DDR4 SO-DIMM, DDI, eDP, Gigabit Ethernet, SATA 3.0, and USB 3.2
Intel®Comet Lake-S Core™ Processor based on Type VI COM Express module with dual DDR4 SO-DIMM, DDI, LVDS, VGA, Gigabit Ethernet, SATA III, and USB 3.2 Gen2
Intel®Coffee Lake-S Core™ Processor based on Type VI COM Express module with dual DDR4 SO-DIMM, DDI, LVDS, Gigabit Ethernet, SATA III, and USB 3.2 Gen2
Intel®Core™ Whiskey Lake-U i7/i5/i3 series processor based on Type 6 Compact COM-Express® module with 2x DDR4 SD-DIMM Socket
Intel®Xeon® D-1600 series SoC based on Type 7 Basic COM-Express® module

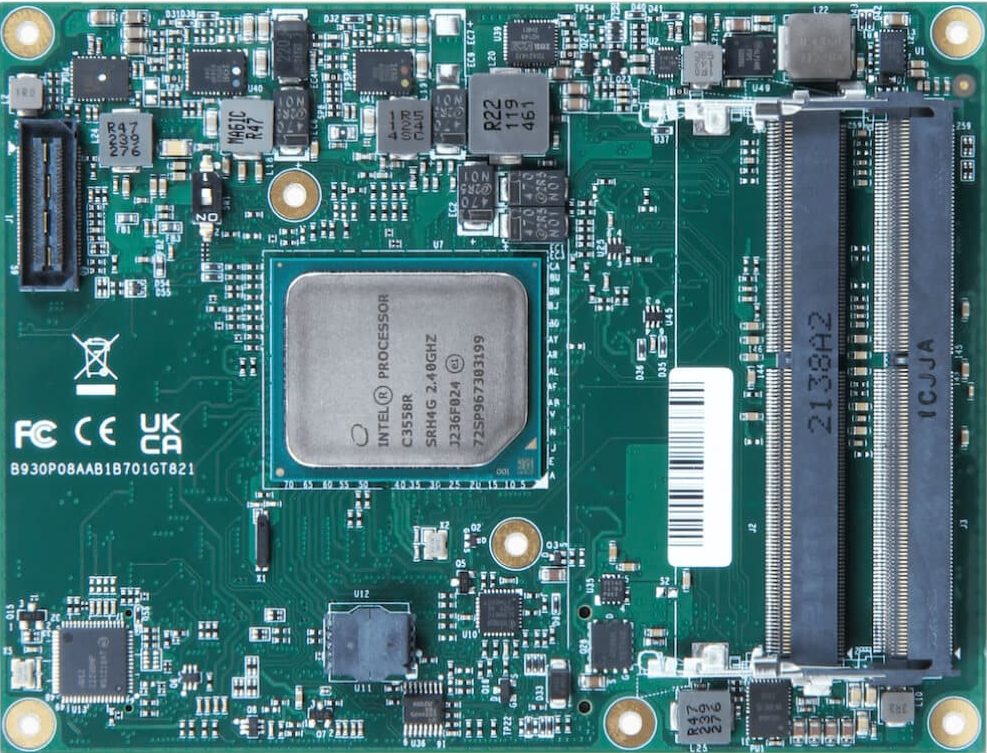

Intel Atom® C3000/C3000-Refresh series SoC based on Type 7 Basic COM-Express® module with 3x DDR4 ECC SO-DIMM Socket
Mini-ITX Form Factor Evaluation Carrier Board for Type 6 Com-Express® Rev 2.1 Module
PCOM-C615 is PICMG 1.3 Full Size Form Factor Evaluation Carrier Board for COM Express® Revision 2.0 Type VI Module. PCOM-C615 follows standard PICMG 1.3 golden finger pin definition and let customer save system total cost for easily upgrading modules

ATX Form Factor Evaluation Carrier Board for Type 6 Com-Express® Rev 3.0 Module

ATX Form Factor Evaluation Carrier Board for COM Express Revision 3.0 Type VII Module with 4x 10GbE Support with Inphi CS4227 PHY
Intel®Core™ Kaby Lake-U/Skylake-U i7/i5/i3 series processor based on Type 6 Compact COM-Express® module with 2x DDR4 SD-DIMM Socket
